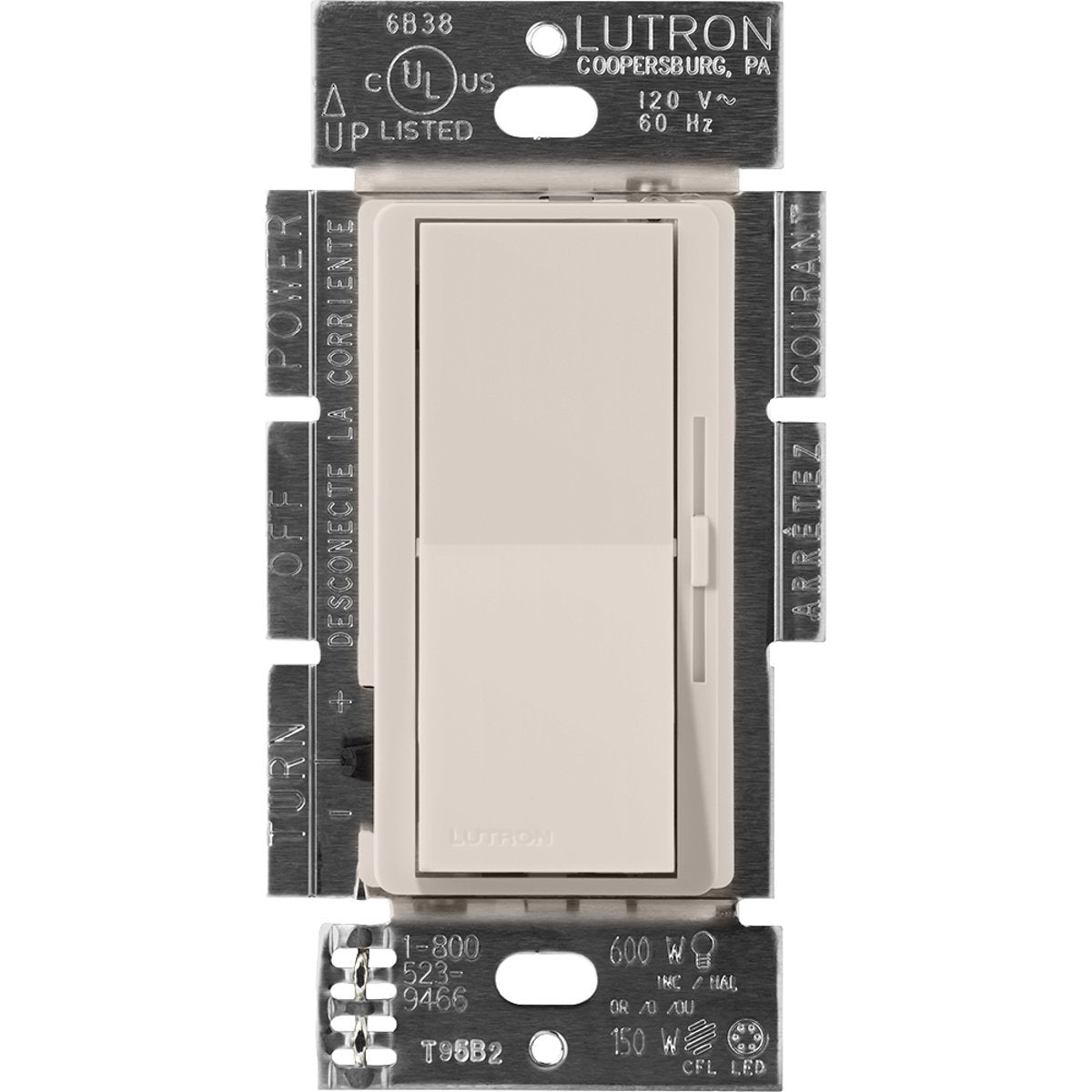

Lutron DVSCRP-253P-TP Diva Reverse-phase Dimmer 250W CFL/LED or 500W inc/hal/ELV

Product Description

The Lutron DVSCRP-253P-TP Diva Reverse-phase Dimmer is designed for lighting control. This dimmer is suitable for CFL/LED (Screw-based), Incandescent/Halogen, and Electronic Low-voltage applications. It supports 3-way/single-pole configurations and controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. The paddle switch turns lights on/off, while a slide adjusts brightness.

• Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads.
• Paddle turns on/off.
• Slide up to brighten, down to dim.

Product Highlights

Reverse-phase dimmer for LED, CFL, Incandescent, and Halogen bulbs. Features a paddle switch and slide control for easy dimming.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: DVSCRP-253P-TP

Technical Specifications

• Catalog Number: DVSCRP-253P-TP
• Manufacturer: Lutron Electronics
• Brand: Lutron
• Sub Brand: Diva
• Actuator: Paddle switch
• Application: Lighting Control
• Connection: Wire Leads
• Enclosure: Plastic
• Frequency Rating: 60 HZ
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wall
• Number of Poles: 1
• Special Features: Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
• Standard: UL, CSA, NOM
• UPC: 784276226318
• GTIN: 00784276226318
• Item Type: Dimmer, reverse-phase, 3-way/single-pole
• Environmental Conditions: Indoor use only
• Operating Temperature: 32 to 104 F
• Voltage Rating: 120
• Wattage: 250/500 W
• Input Voltage: 120V
• Switch Type: Rocker/Paddle
• Min Operating Temp: 32 Degrees F
