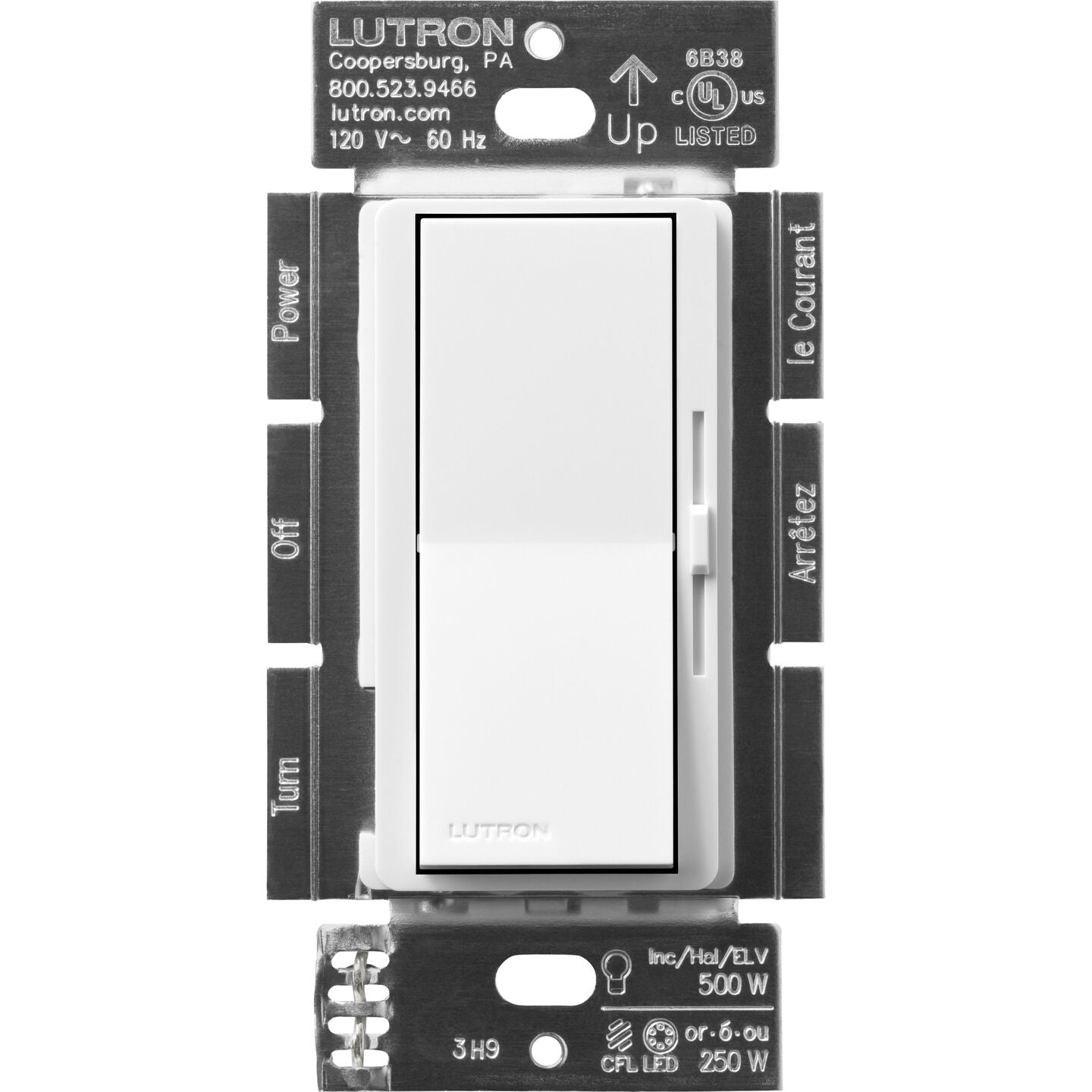

Lutron DVRP-253P-LA Diva Reverse-phase Dimmer 250W/500W

Product Description

The Lutron DVRP-253P-LA Diva Reverse-phase Dimmer is designed for CFL/LED, Incandescent/Halogen, and Electronic Low-voltage lighting. It supports 3-way/single-pole configurations and is rated for 250W CFL/LED or 500W Inc/Hal/ELV loads. The dimmer features a paddle switch for on/off control and a slide for dimming. It is suitable for indoor use only.

• Gloss Finish
• Suitable for CFL/LED (Screw-based), Incandescent/Halogen, Electronic Low-voltage
• 3-way/single-pole

Product Highlights

Designed for optimal control of electronic low-voltage and LED lighting, this dimmer features a paddle switch and slide dimmer for smooth control.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: DVRP-253P-LA
• Country of Origin: United States

Technical Specifications

• Catalog Number: DVRP-253P-LA
• Manufacturer: Lutron Electronics
• Brand: Lutron
• Sub Brand: Diva
• Actuator: Paddle switch
• Application: Lighting Control

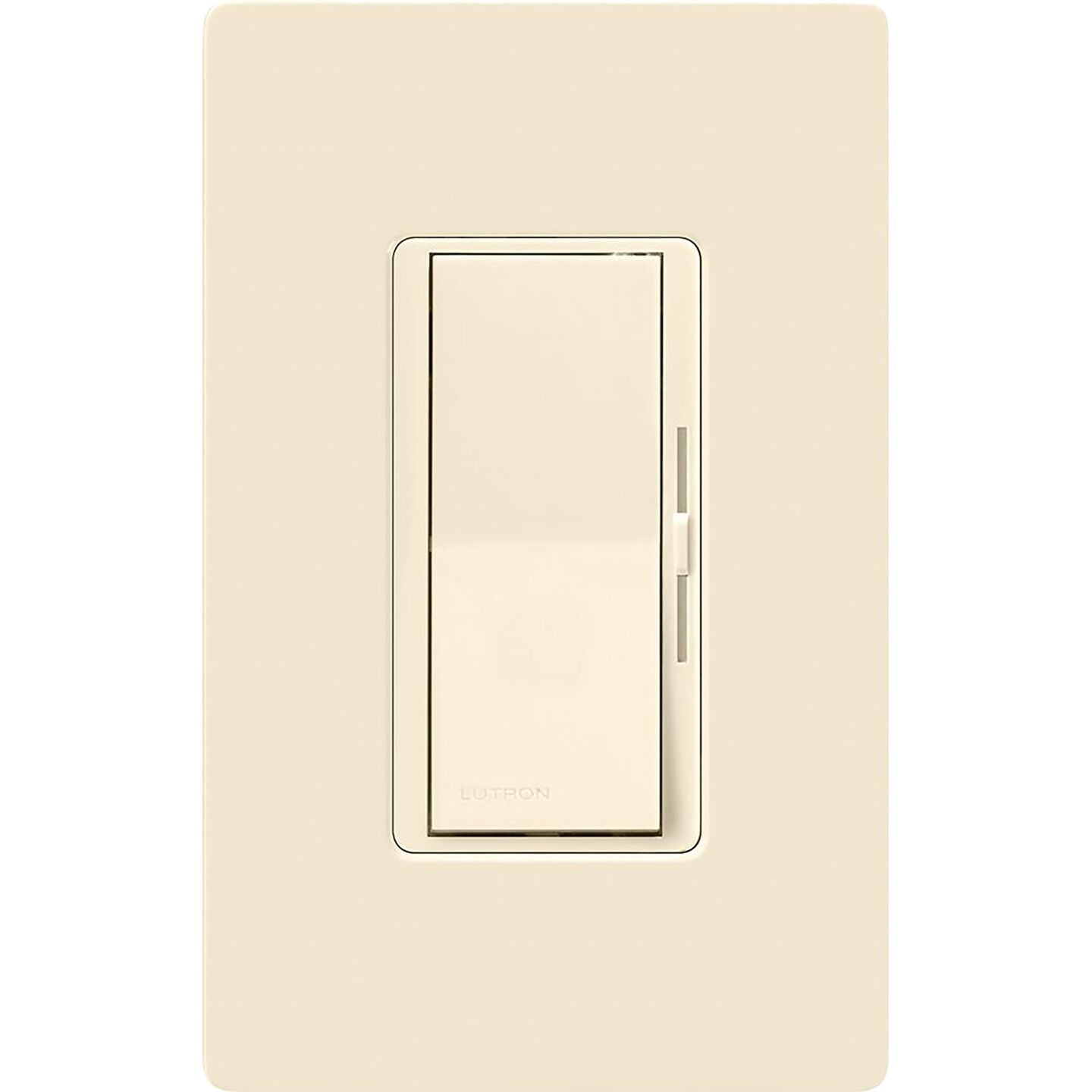

• Color: Light Almond
• Connection: Wire Leads
• Enclosure: Plastic
• Frequency Rating: 60 HZ
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wall
• Number of Poles: 1
• Special Features: Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
• Standard: UL, CSA, NOM
• UPC: 784276221689
• GTIN: 00784276221689
• Item Type: Dimmer, reverse-phase, 3-way/single-pole
• Environmental Conditions: Indoor use only
• Operating Temperature: 32 to 104 F
• Voltage Rating: 120
• Wattage: 250/500 W
• Load Capacity (Incandescent/Halogen): 500 watts
• Load Capacity (Dimmable CFL/LED): 250 watts
• Load Capacity (Electronic Low-Voltage): 500 watts
• Voltage: 120 volt AC
• Frequency: 60 Hz
• Mount: Wall box
• Style & Type: Paddle switch, Slide dimmer
• Mounting Type: In-wall
• Wiring Type: Single pole/3-way
• Wiring Requirements: Neutral required
• Indoor / Outdoor: Indoor
• Ratings: 250W dimmable LED, 500W ELV/incandescent/halogen
• Manufacturer Part Number: DVRP-253P-LA
• Switch Type: 1-Pole/3-Way
• Min Operating Temp: 32 Degrees F
• Finish: Gloss Light Almond
• Country of Origin: United States
• Dimmer Switch Style: Rocker with Slid Dimmer
• Lamp Type: Fluorescent/LED
• Color Family: Ivory
