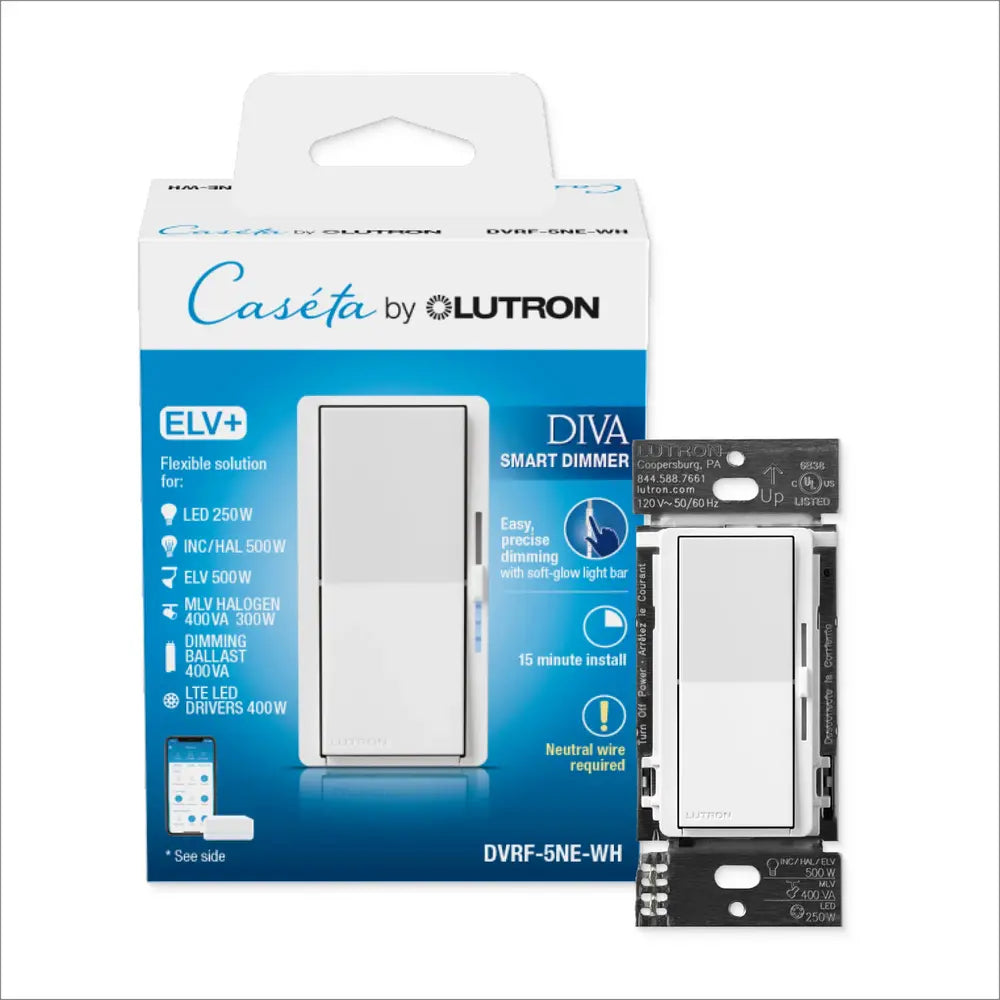

Lutron DVRF-5NE-WH 500W Diva Smart ELV+ Dimmer 120 VAC

Product Description

The Lutron DVRF-5NE-WH is a smart ELV+ dimmer designed for residential lighting control. It supports various light sources, including dimmable LED up to 250 watts, electronic low-voltage (ELV), incandescent, and halogen up to 500 watts, as well as magnetic low-voltage (MLV) up to 400 watts. A neutral wire is only needed for ELV types, while other types can work with or without it, requiring a minimum load of 10 watts.

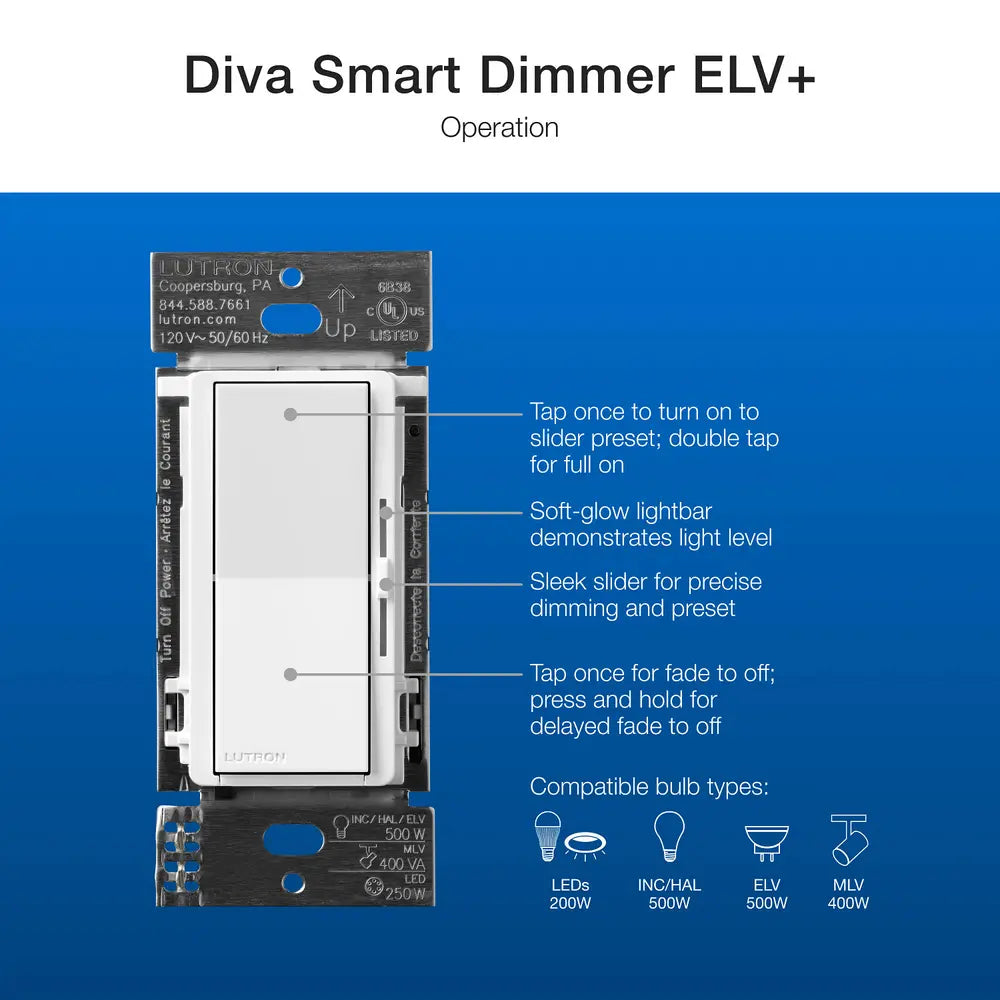

This dimmer features a pre-set reverse phase for ELV and can easily switch to a forward phase for MLV with a simple button-press configuration. It integrates seamlessly into any Caseta system and maintains the classic design consistent with Lutron's Diva series.

• Compatible with up to 250W of dimmable LED and 500W of ELV/incandescent lighting.
• Offers a phase-selectable output for easy use with ELV or MLV.
• Neutral wire connection optional for LED and incandescent loads.

Product Highlights

This dimmer combines functionality and aesthetic appeal, matching existing designs while providing advanced control features.

Product Information

Standard Information

• Brand: Lutron
• Manufacturer: Lutron

Technical Specifications

• MPN: DVRF-5NE-WH
• Voltage Rating: 120 VAC
• Amperage Rating: 4.16 Amperes
• Number of Poles: Single-Pole
• Frequency Rating: 50/60 Hertz
• Depth: 2 Inches
• Width: 3.375 Inches
• Height: 4.5 Inches
• Weight: 0.35 Pounds
• UPC: 784276818568
• Wattage: 250 Watts
• Dimmable: Yes
• Connection: Wire Lead
• Country of Origin: MX
