Product Description

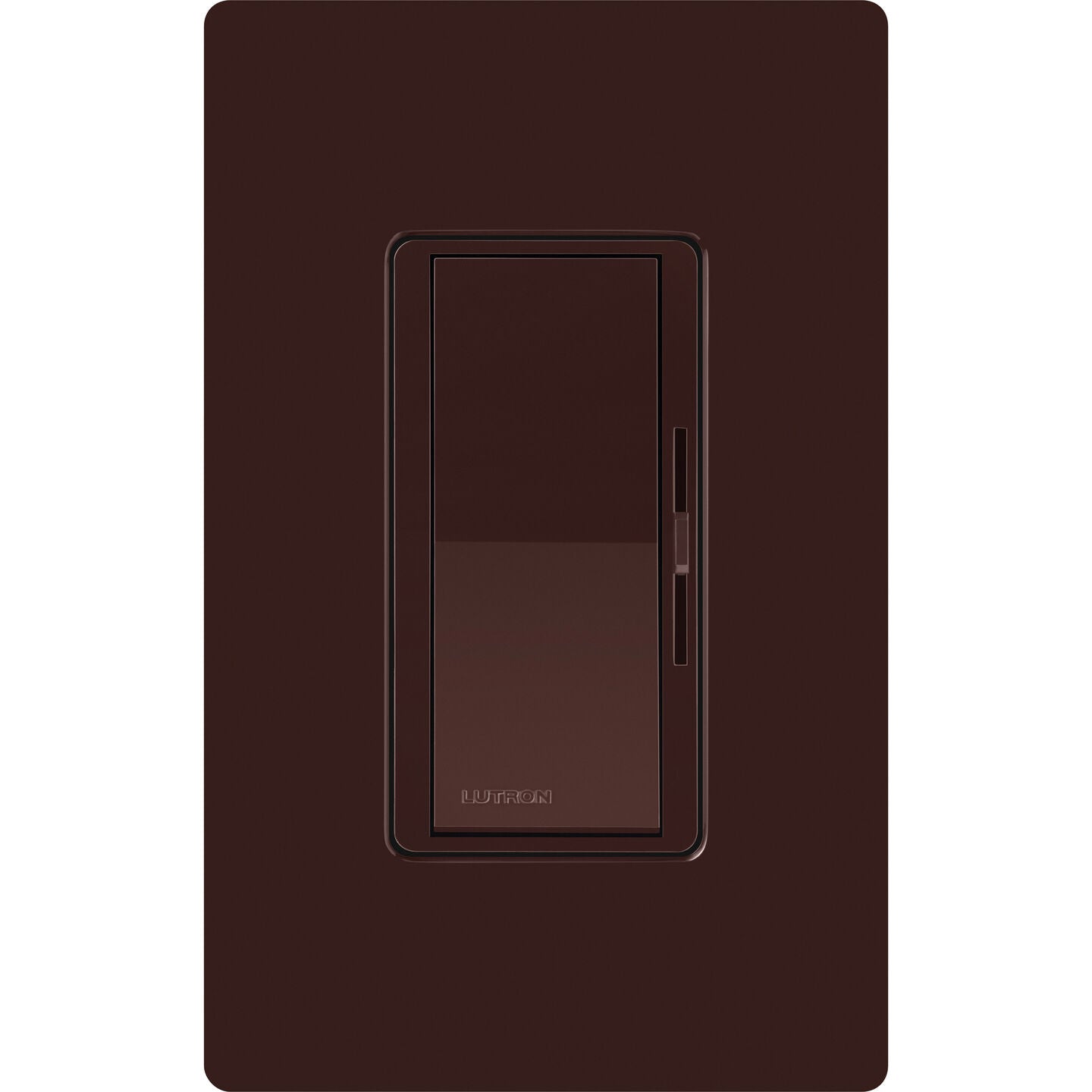

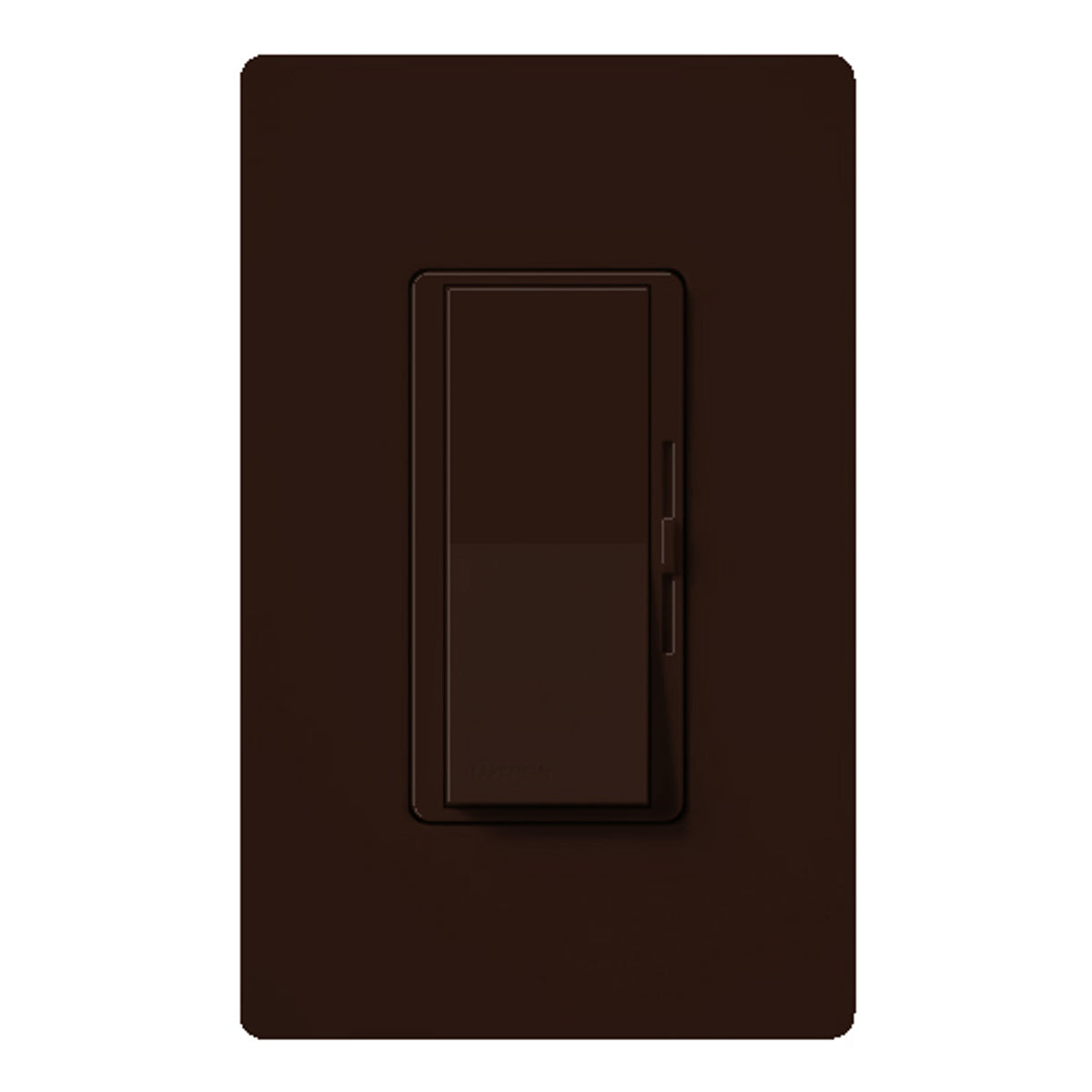

The LUTRON DVLV-603P-BR Diva Dimmer is designed for magnetic low-voltage lighting control. This 3-way dimmer features a paddle switch for on/off control and a slide for dimming. It controls 600 VA (450 W) magnetic low-voltage loads and includes a soft locator light for visibility in the dark. Suitable for commercial and residential applications.
- Controls 600 VA (450 W) magnetic low-voltage loads.
- Paddle turns lights on/off.
- Slide up to brighten, down to dim.
Product Highlights
Diva dimmer with paddle switch and slide control for magnetic low-voltage lighting. Includes nightlight and is suitable for 3-way operation.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: DVLV-603P-BR
-
Country of Origin: KN - St Kitts&Nevis
Technical Specifications
-
Catalog Number: DVLV-603P-BR
-
Manufacturer: Lutron Electronics
-
Brand: Lutron
-
Sub Brand: Diva
-
Actuator: Paddle switch
-
Application: Lighting Control
-
Connection: Wire Leads
-
Enclosure: Plastic
-
Frequency Rating: 60 HZ
-
Insulation: Plastic
-
Material: Plastic/Metal
-
Mounting: Wallbox
-
Number of Poles: 1
-
Special Features: Controls 600 VA (450 W) magnetic low-voltage loads. Paddle turns on/off. Slide up to brighten, down to dim.
-
Standard: UL, CSA, NOM
-
UPC: 027557688239
-
GTIN: 00027557688239
-
Item Type: Dimmer, 3-way
-
Operating Temperature: 32 to 104 F
-
Voltage Rating: 120 VAC at 60 Hz
-
Wattage: 450 W
-
Type: Wall Dimmer
-
Operator Type: Paddle On/Off Switch with Linear Preset Slide
-
Operation Type: 3-Way
-
Load Type: Magnetic Low Voltage
-
Load Rating: 600 VA/450 W
-
Wall Plate Type: 1-Gang Screwless/Seamless Claro (Not Included)
-
Finish: Gloss
-
Ambient Temperature Rating: 32 to 104 Deg F
-
Includes: Nightlight
-
Style & Type: Paddle switch
-
Slide dimmer: Slide dimmer
-
Wiring Type: Single pole/3-way
-
Wiring Requirements: No neutral required
-
Indoor / Outdoor: Indoor
-
Voltage: 120 V~ 50/60 Hz
-
Ratings: 450W magnetic low voltage halogen loads
-
Insulation Material: Plastic
-
Lamp Watts: 450
-
Rated Voltage: 120V
-
Switch Type: Paddle Switch
-
Color Family: Brown
