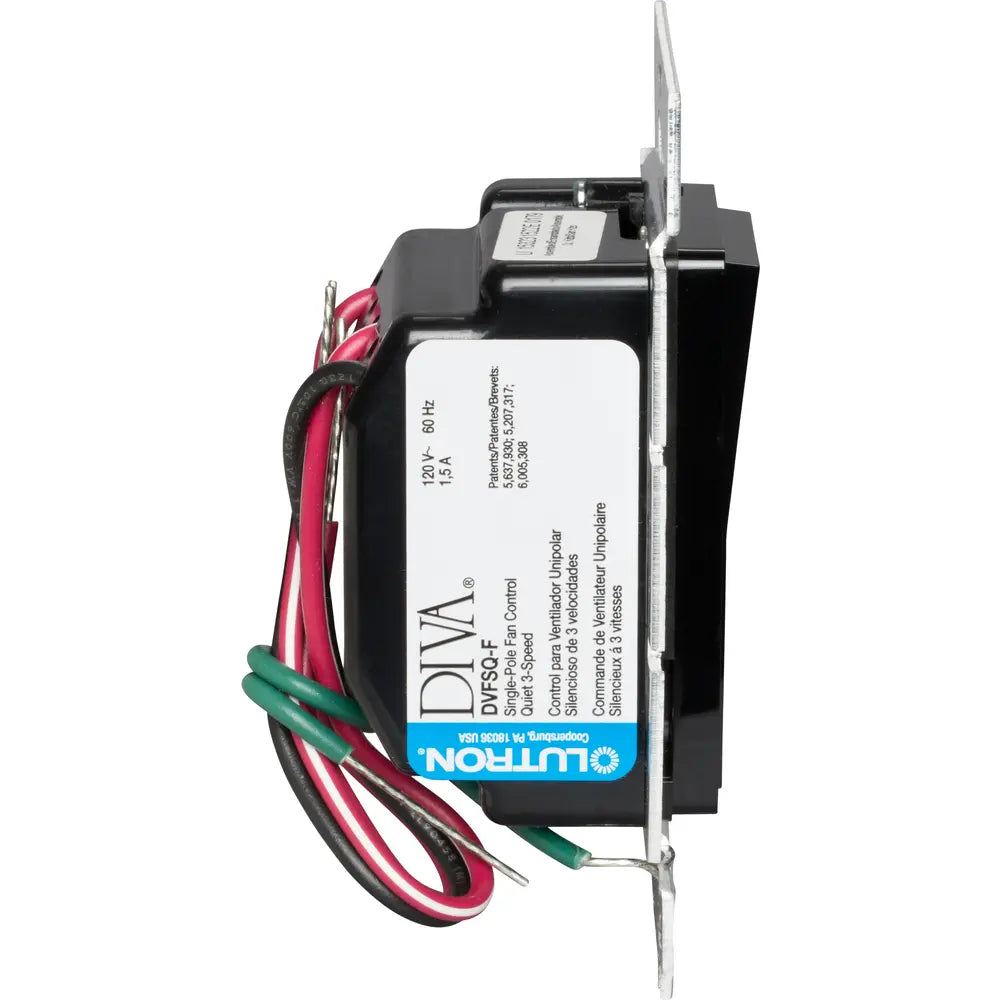

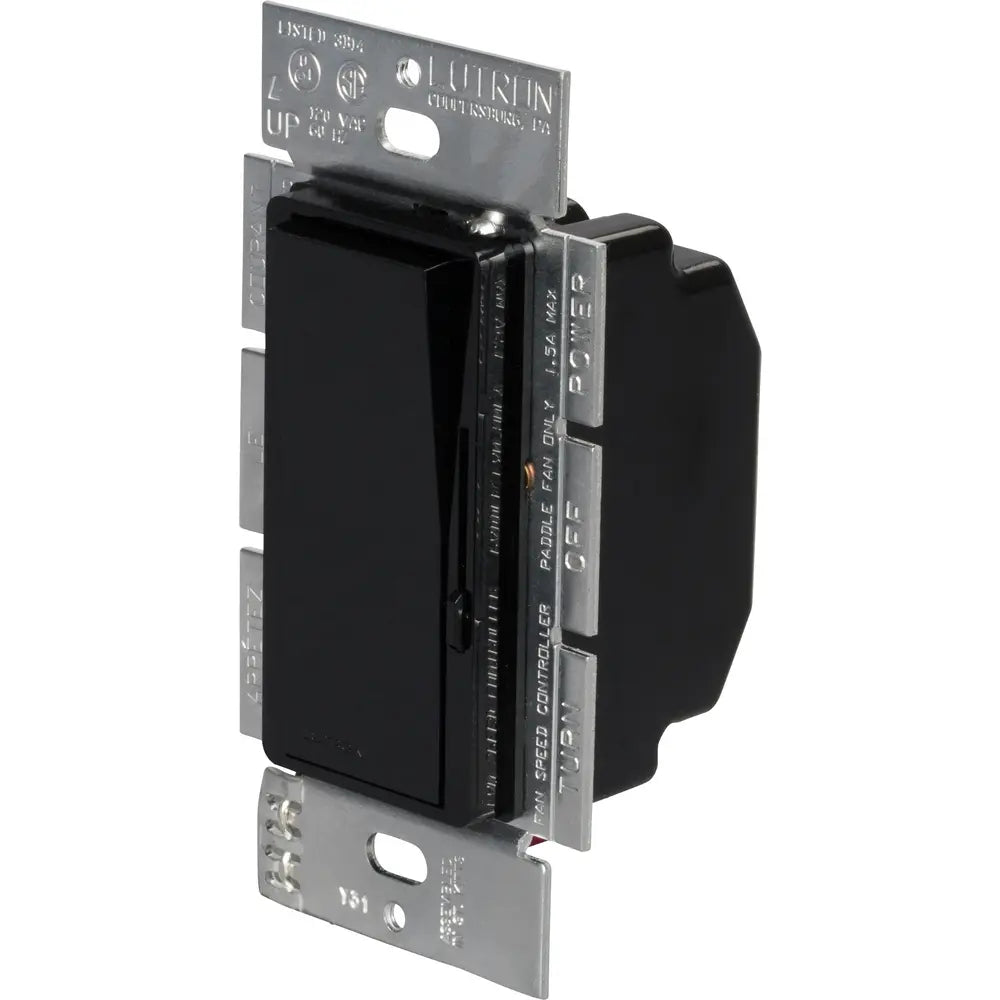

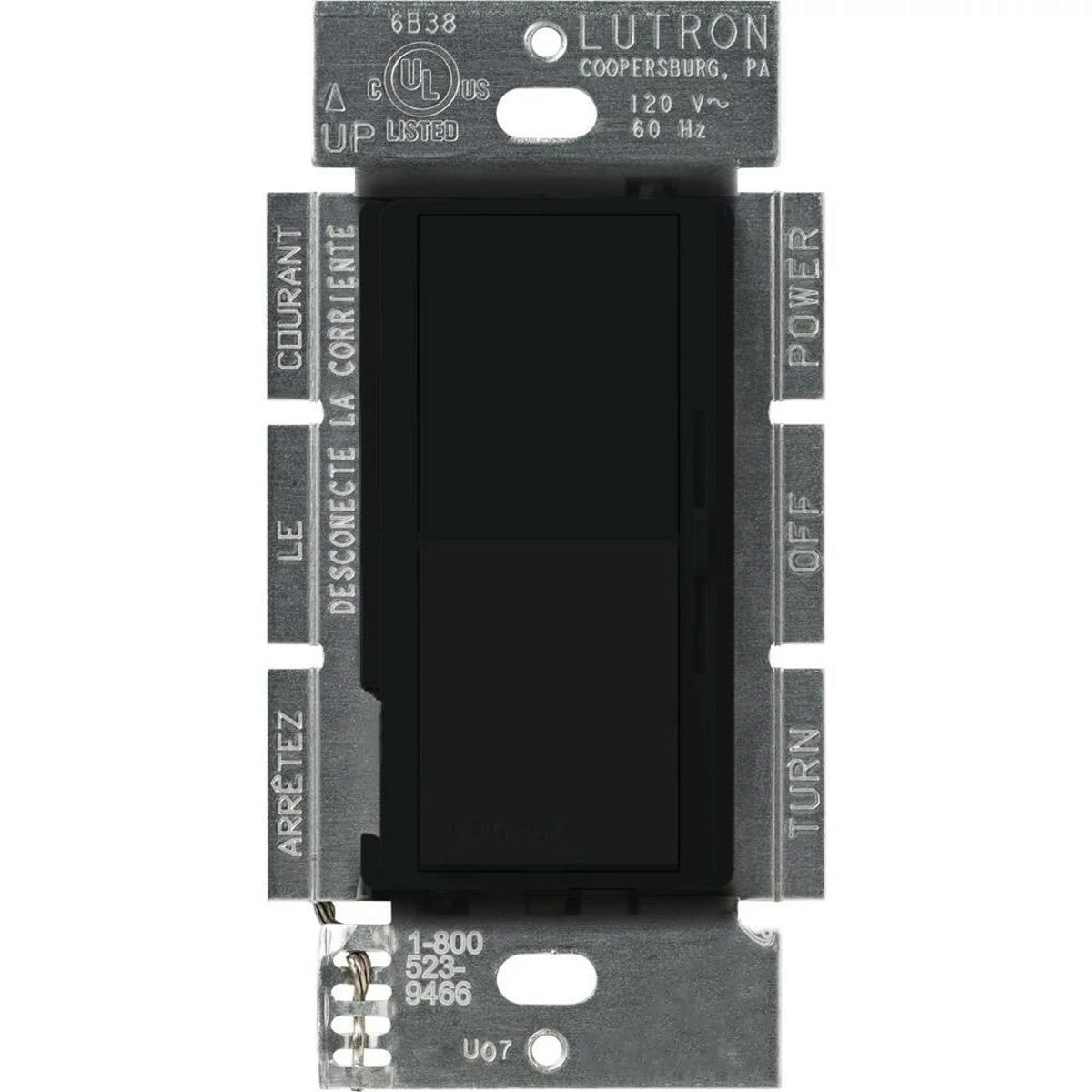

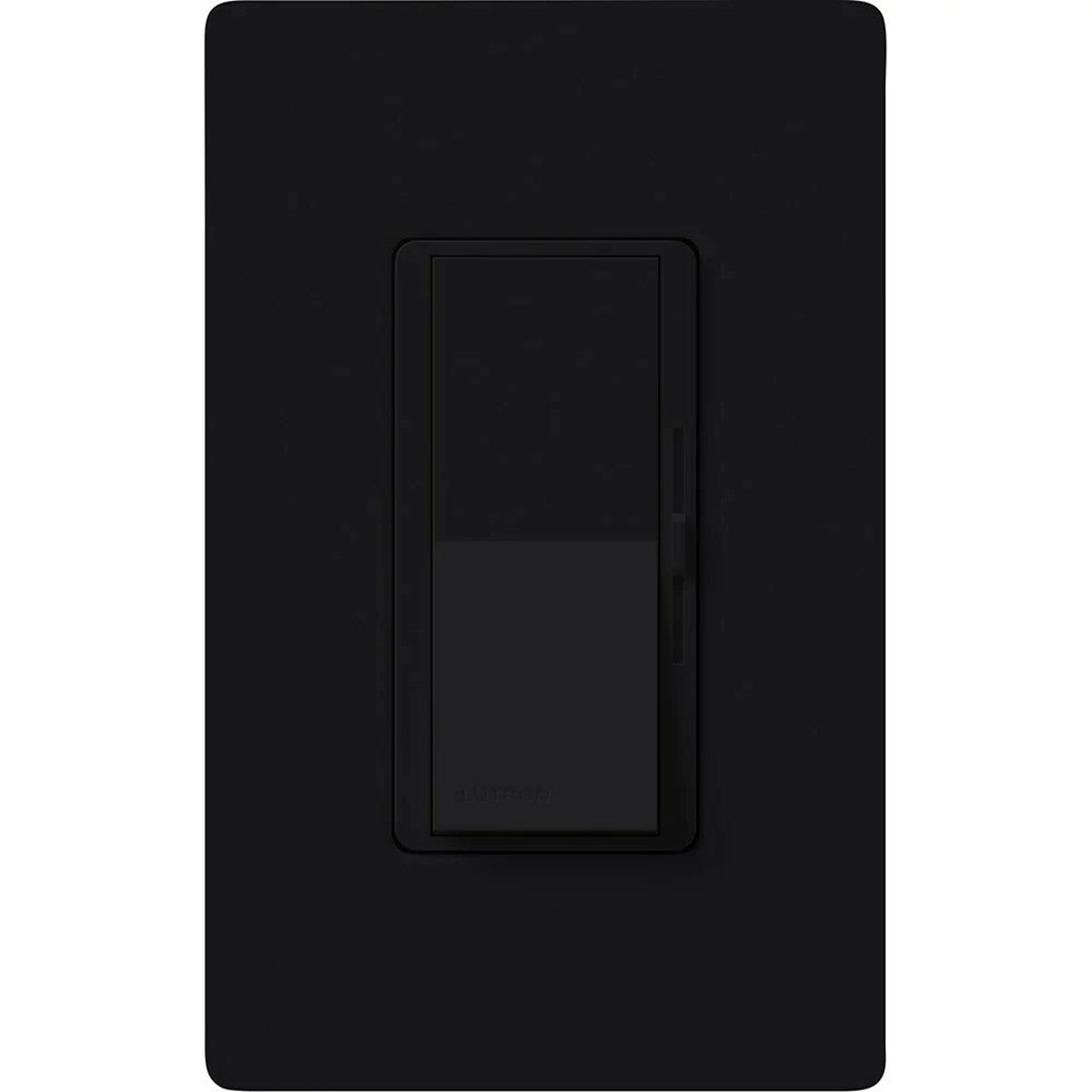

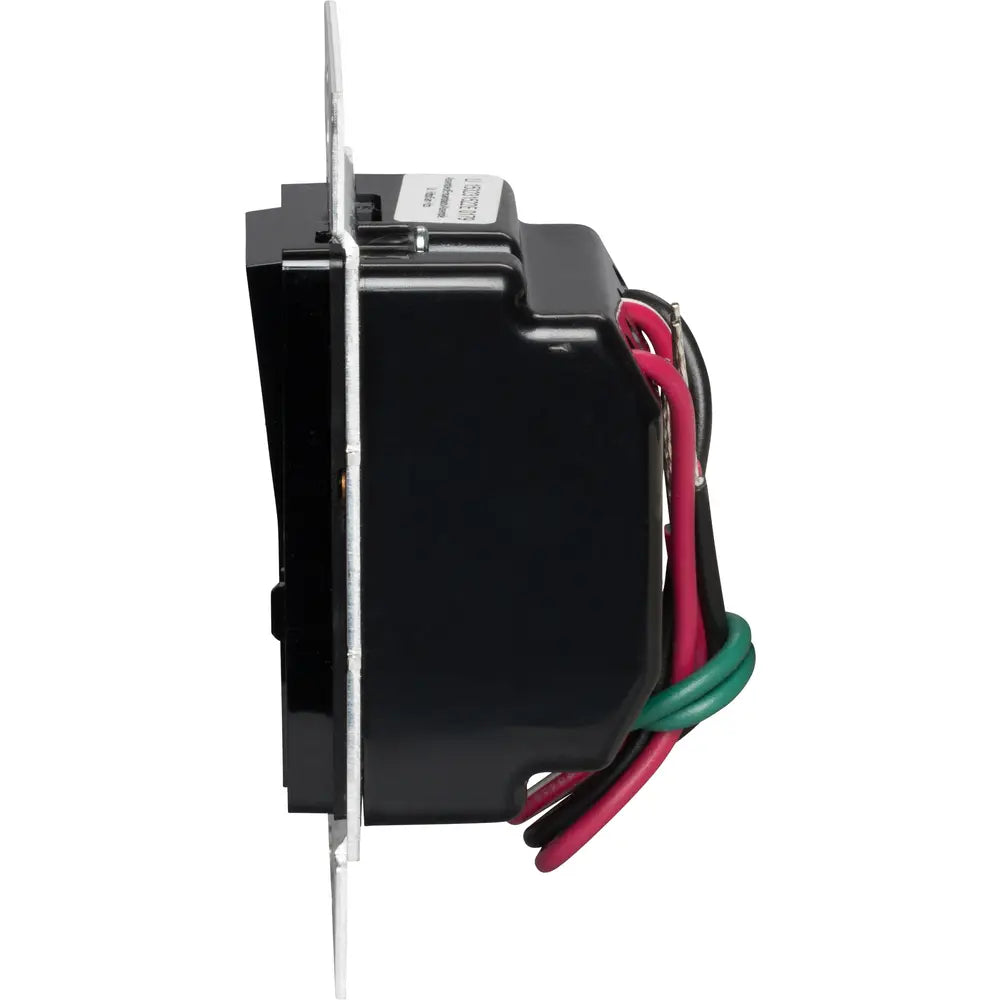

Lutron DVFSQ-F-BL Diva 3-Speed Fan Control 1.5A (Pack of 1)

Product Description

Lutron DVFSQ-F-BL is a Diva 3-speed fan control for a single ceiling fan, rated 120 VAC and 1.5 A. It provides an on/off rocker to set a preset speed and a captive linear slider to select Low, Medium, or High speeds. The device installs in single-pole or 3-way applications with Lutron Claro switches, requires separate fan and light wiring, and does not require a neutral at the wallbox.

• Controls one ceiling fan up to 1.5 A (120 VAC) with three quiet speeds (Low, Medium, High).
• On/off rocker with captive linear slider; wire-lead connections and screw mounting; no neutral required at the wallbox.
• Compatible with single-pole or 3-way installations when used with Lutron Claro switches; designed for dry locations and normal indoor operating temperatures.

Product Highlights

3-speed fan control for one ceiling paddle fan; 120 VAC, 1.5 A; single-pole/3-way compatible; pack of 1.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: DVFSQ-F-BL
• Country of Origin: Saint Kitts and Nevis

Technical Specifications

• Brand: Lutron
• Manufacturer Part Number: DVFSQ-F-BL
• Model/Catalog Number: DVFSQ-F-BL
• Series: Diva
• Type: Fan control
• Application: Fan control (single ceiling fan); single-pole / 3-way compatible
• Input Voltage: 120 VAC
• Current Rating: 1.5 A
• Wattage: 180 W
• Number of Speeds: 3 (Low, Medium, High)
• Number Of Poles: Single-pole (3-way compatible)
• Switch Type: On/off rocker with captive linear slider
• Actuator: Paddle
• Connection: Wire leads
• Mounting Type: Screw
• Dimensions: 4.69 x 2.94 x 0.30 Inches (H x W x D)
• Weight: 0.28 Pounds
• Operating Temperature: 32�F to 104�F
• Environmental Conditions: Dry location
• Standards/Certifications: cULus, NOM, UL, CSA, RoHS
• Package Quantity: Pack of 1
• UPC: 027557691772
• Connection Notes: Requires separate wires at the wallbox for fan and light; no neutral required at wallbox
