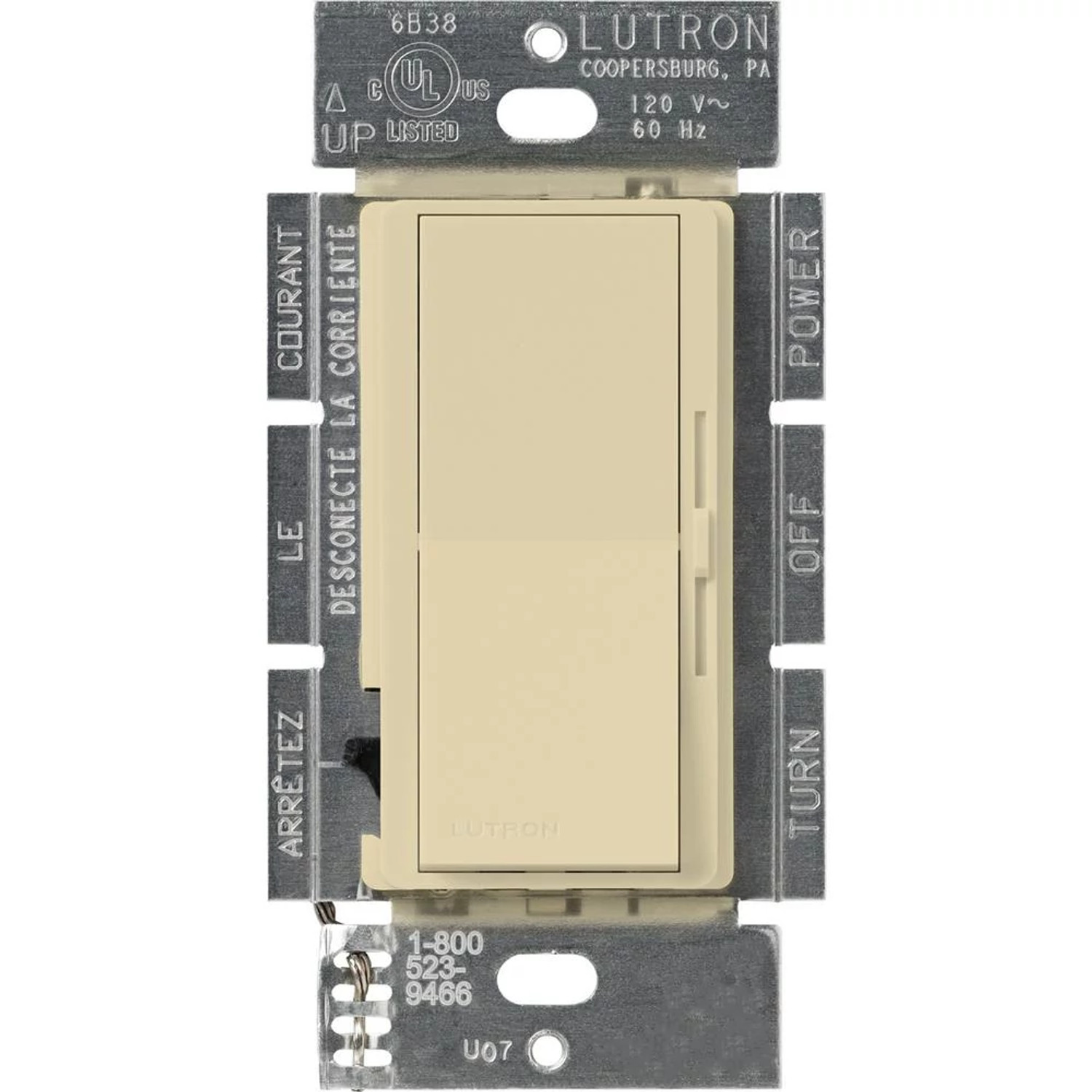

Lutron DV-10PH-IV Diva Dimmer 1000W 120V Single-pole Ivory

Product Description

The LUTRON DV-10PH-IV is a single-pole dimmer switch designed for incandescent and halogen lighting loads in residential and light commercial settings. Rated at 1000 watts and 120 volts, it provides smooth, full-range dimming control with a gloss finish in ivory. The paddle-style Diva design fits standard wallplate openings and installs in a single-gang box. Licensed electricians and skilled tradespeople handle installation as part of lighting control upgrades or new construction rough-in work.

This dimmer is suited for single-pole lighting circuits controlling incandescent A-lamp and halogen lamp fixtures. Typical applications include living rooms, hallways, dining areas, and similar spaces where ambient light adjustment is required. The ivory gloss finish is designed to coordinate with standard ivory decorator wallplates. It is not rated for use with LED, CFL, fluorescent, or motor loads.

Key Features

• 1000W incandescent and halogen load rating at 120 volts
• Single-pole wiring configuration for straightforward one-location control
• Gloss finish in ivory matches standard decorator-style wallplates
• Full-range slide dimmer with separate on/off tap switch
• Fits standard single-gang wallbox

Compatibility

Designed as an OEM-style replacement or new-installation dimmer for single-pole incandescent and halogen lighting circuits at 120 volts, 1000 watts maximum.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and local codes. Turn off the circuit breaker and verify the circuit is de-energized with a voltage tester before removing the existing switch or dimmer. Single-pole dimmers require a neutral or ground connection depending on local code; confirm wiring requirements before proceeding. This device is not suitable for use with LED or CFL lamps, fans, or transformer-fed low-voltage lighting.

Technical Specifications

• Voltage: 120 volts
• Wattage Rating: 1000W
• Load Type: Incandescent, Halogen
• Pole Configuration: Single-pole
• Finish: Gloss
• Color: Ivory
• UPC: 027557748087

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: DV-10PH-IV
