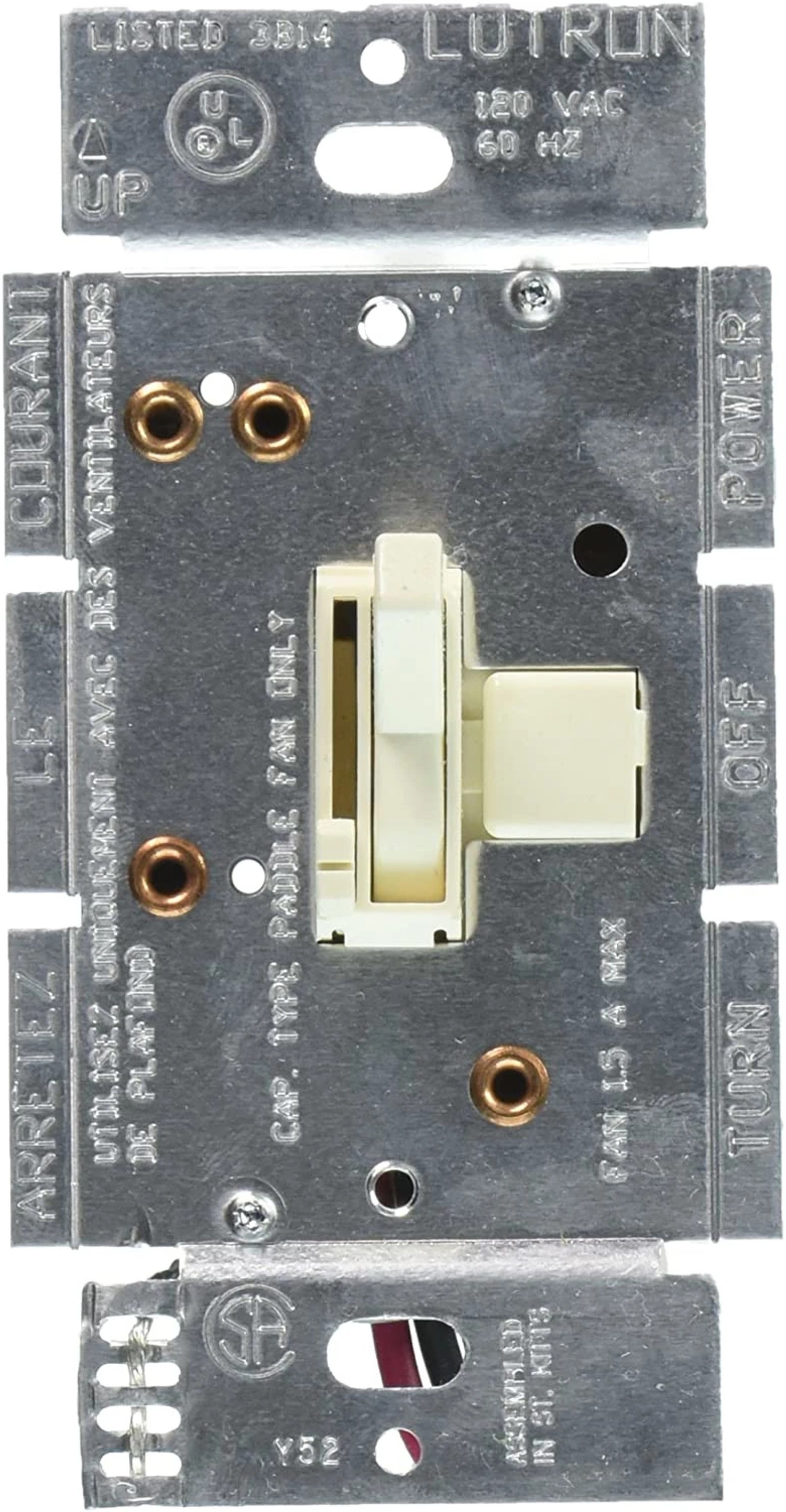

Lutron AYFSQ-F-AL Ariadni Fan Speed Control 120V Almond

Product Description

The LUTRON AYFSQ-F-AL is a quiet 3-speed fan speed control designed as a direct replacement for standard toggle-style wall switches. It operates a single 3-speed ceiling fan using a smooth, linear slider for speed selection and a dedicated toggle switch for on/off control. Rated at 120 volts and 1.5 amps, the control fits into a standard wall plate opening, making it a straightforward swap in residential retrofit and new construction applications. Licensed electricians and HVAC technicians regularly specify this type of control when upgrading basic fan switching to variable-speed operation without installing a full smart-home system.

The AYFSQ-F-AL is configured for single-pole or 3-way wiring, allowing installation in rooms where the fan is controlled from two switch locations. It is suited for residential ceiling fan applications in bedrooms, living rooms, and great rooms. The unit is finished in almond and is compatible with multi-gang wall plates, making it straightforward to integrate into existing switch banks. It pairs with Lutron Fassada wall plates for consistent color matching, sold separately.

Key Features

• Quiet 3-speed operation with Low, Medium, and High preset levels
• Linear slider for smooth speed adjustment plus a separate toggle for on/off control
• Single-pole and 3-way compatible for single or dual-location switching
• Rated 120 volts, 1.5 amps for standard residential ceiling fan loads
• Fits standard wall plate openings and existing multi-gang plates
• Almond finish coordinates with Lutron Fassada wall plates

Compatibility

Designed as an OEM-style replacement for standard toggle wall switches controlling single 3-speed residential ceiling fans. Compatible with multi-gang wall plates and Lutron Fassada wall plates for color-matched installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Shut off power at the circuit breaker before removing the existing switch or control. Verify the wiring configuration at the switch box before beginning installation, as 3-way applications require a traveler wire in addition to line and load conductors. Do not exceed the 1.5 amp load rating of this control.

Technical Specifications

• Voltage: 120 volts
• Amperage: 1.5 amps
• Number of Speeds: 3 (Low, Medium, High)
• Wiring Configuration: Single-pole or 3-way
• Color/Finish: Almond
• UPC: 027557121163

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: AYFSQ-F-AL
