Product Description

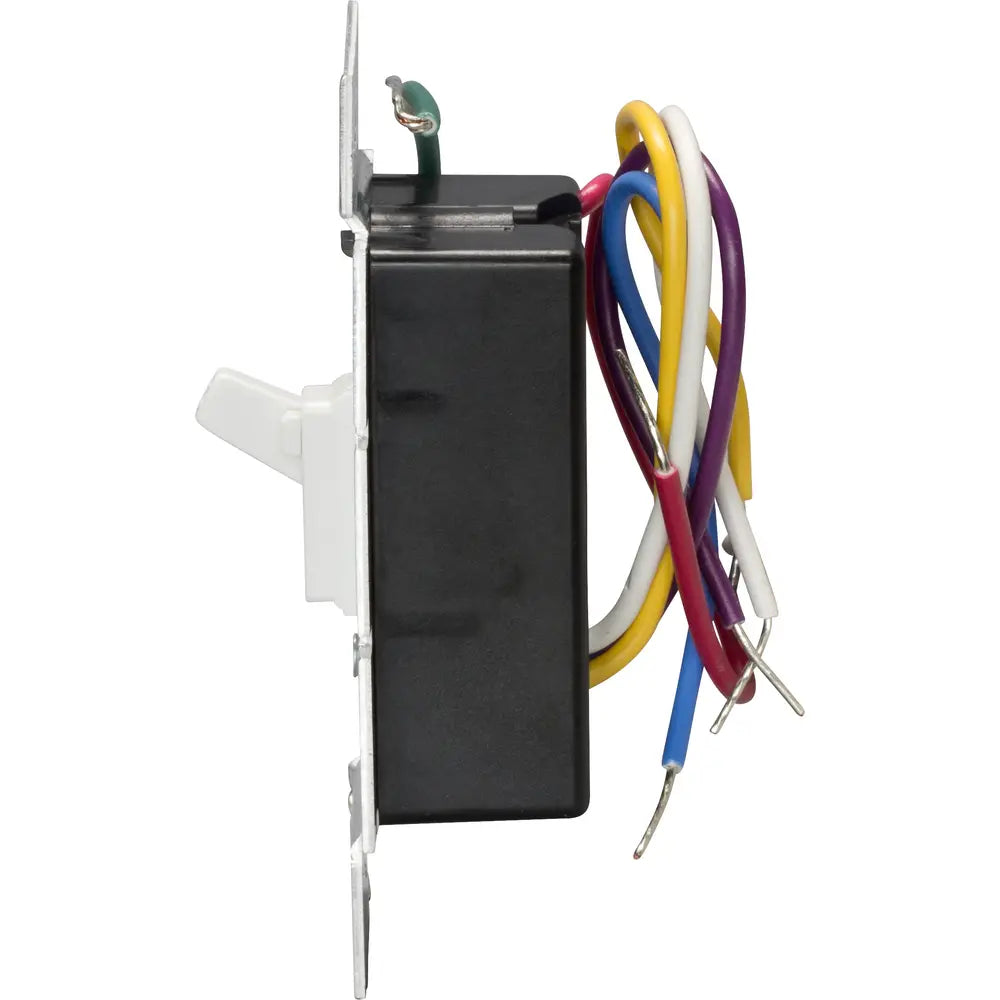

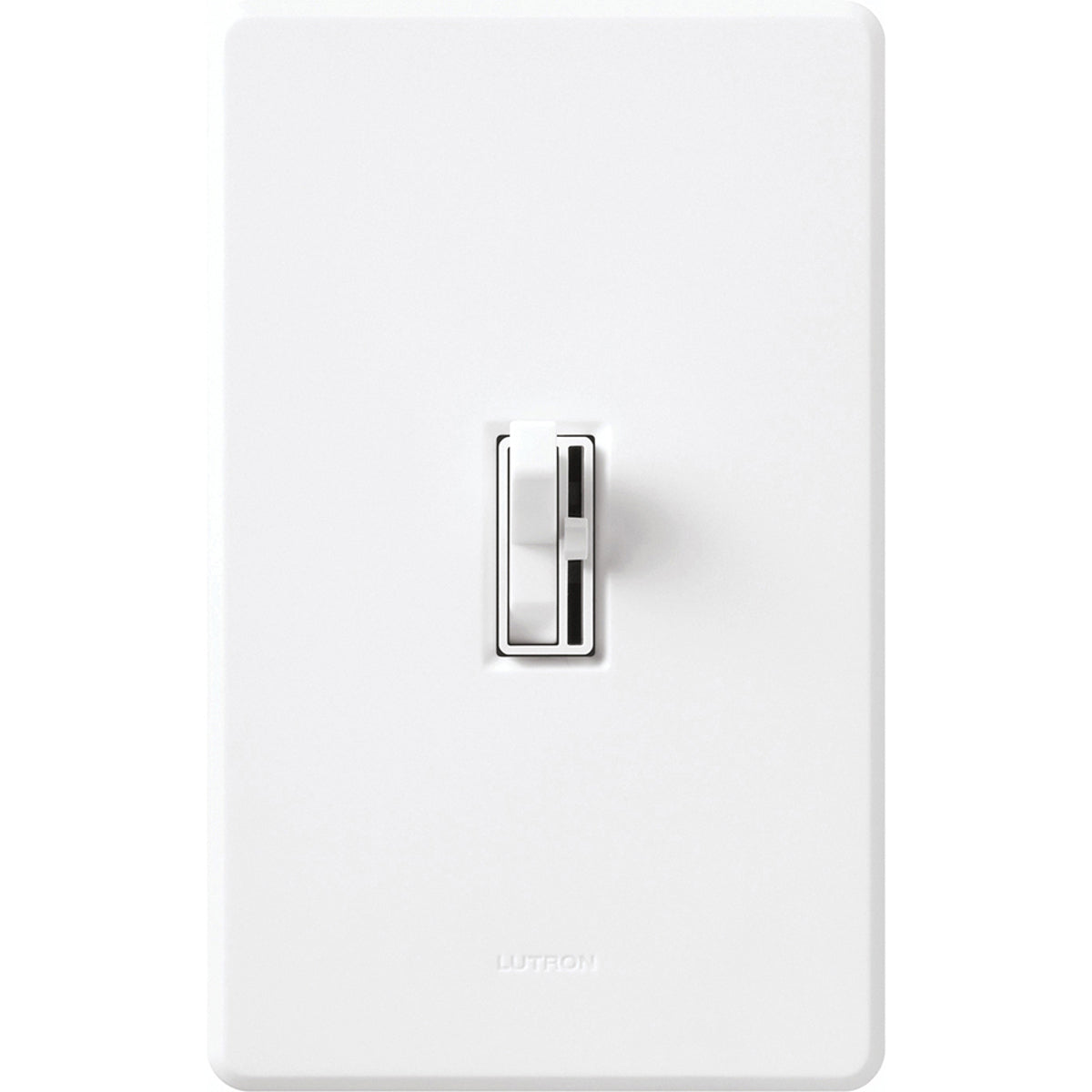

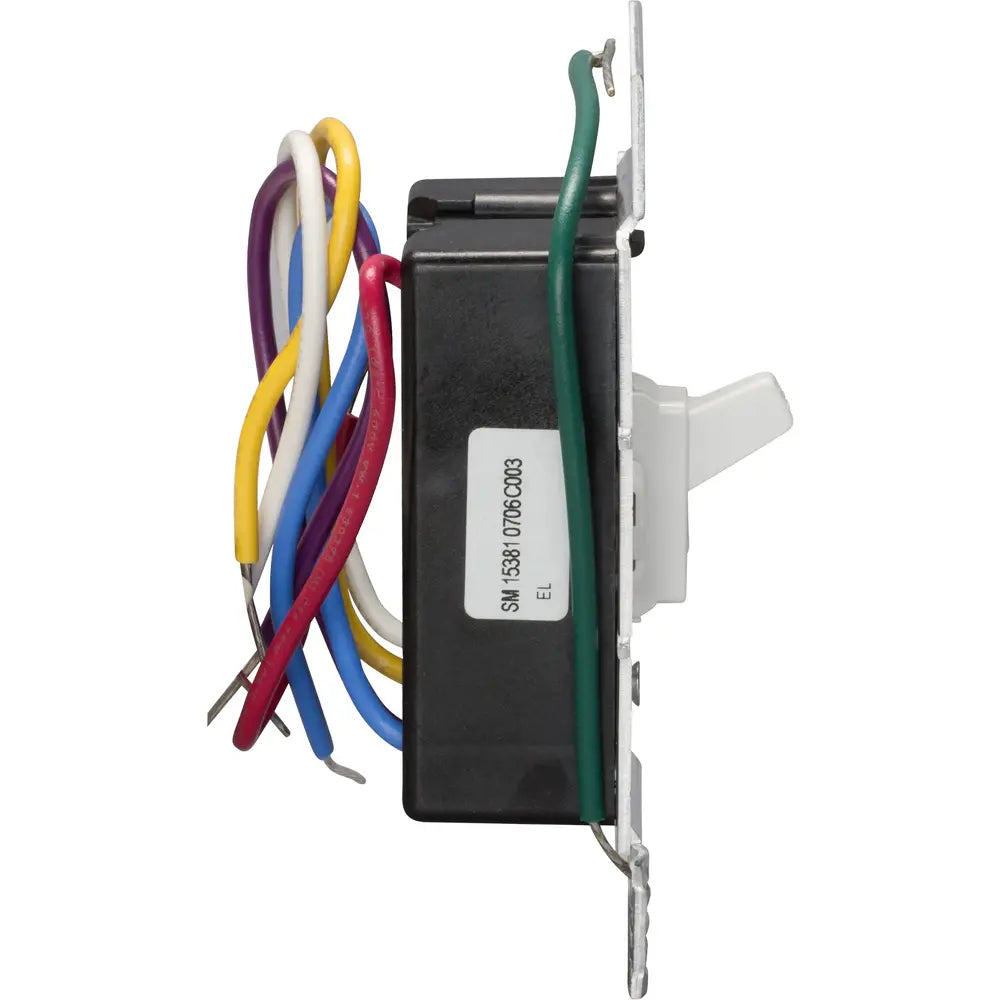

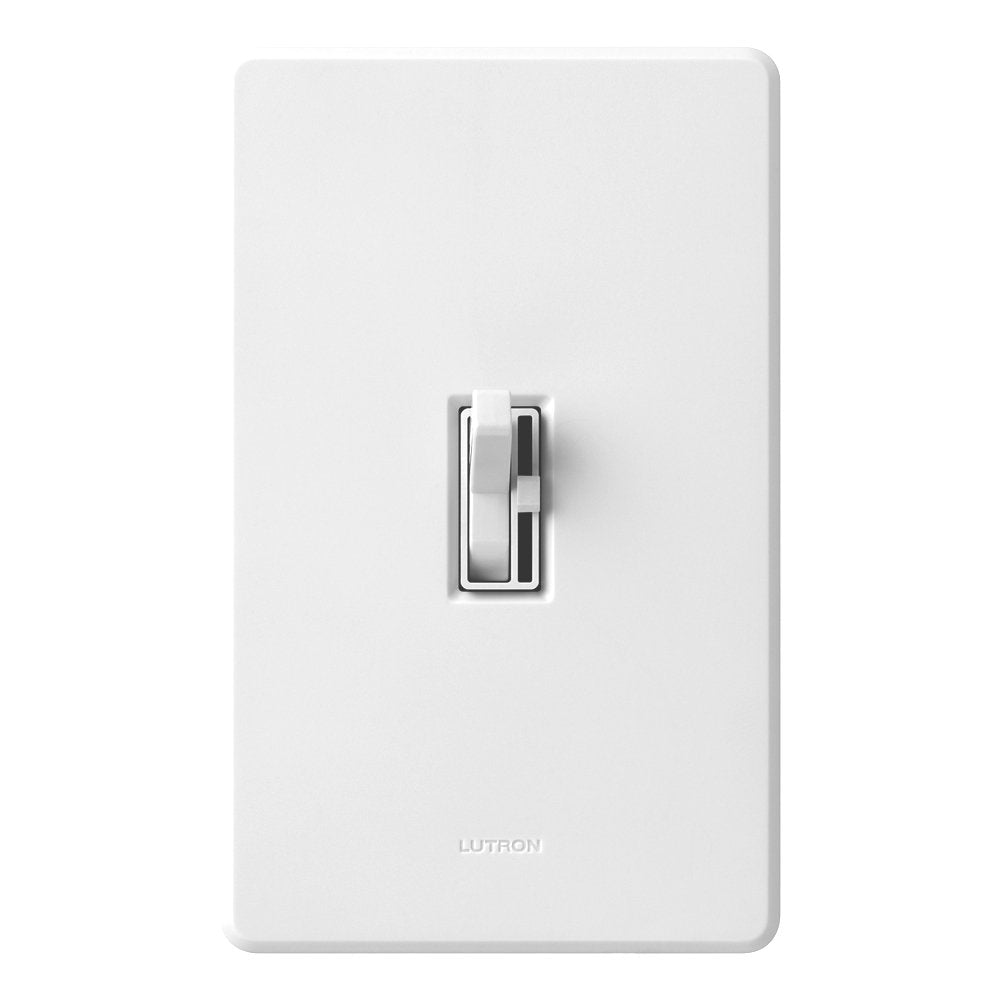

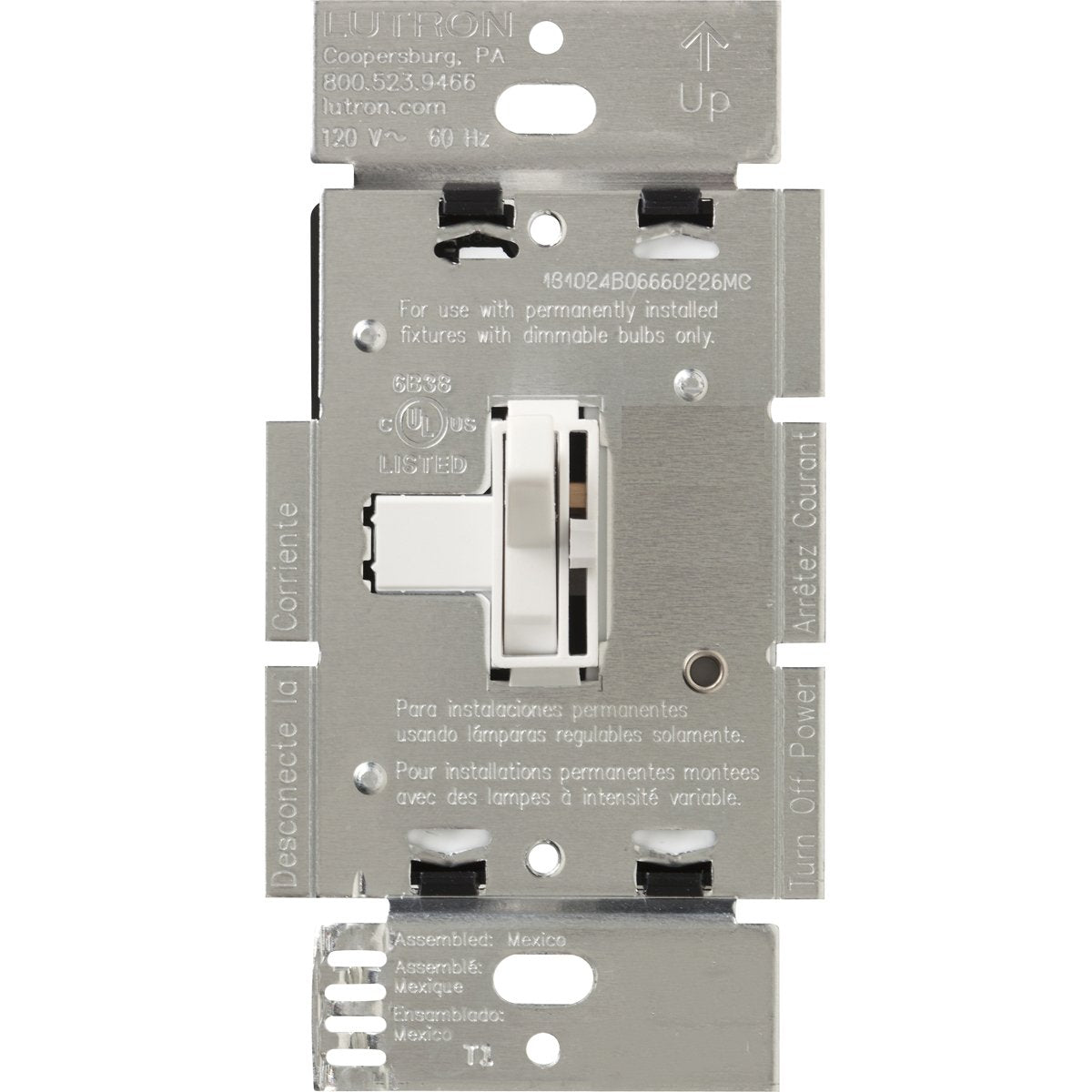

The Lutron AYF-103P-277-WH Ariadni Fluorescent Dimmer is designed for single-pole or 3-way applications. This preset dimmer operates at 277V and 6A and is suitable for use with Hi-lume ballasts. The dimmer features a toggle switch for on/off functionality and a slide control for dimming.
- Suitable for fluorescent and LED loads
- Features a preset slide with toggle on/off switch
- Operates on a 1-pole/3-way circuit with neutral
Product Highlights
The Lutron AYF-103P-277-WH is ideal for commercial and residential lighting control, offering smooth dimming and on/off functionality.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: AYF-103P-277-WH
-
Country of Origin: KN
Technical Specifications
-
Type: Fluorescent Dimmer
-
Color: White
-
Width: 2.86 Inches
-
Height: 4.6 Inches
-
Wattage: 1000 watts
-
Dimmable: Dimmable
-
Standard: UL
-
Connection: Wire leads
-
Voltage Rating: 277 VAC
-
Amperage Rating: 6 Amperes
-
Number Of Poles: Single-Pole
-
Frequency Rating: 50/60 Hertz
-
Application: Lighting Control
-
Sub Brand: Ariadni
-
Actuator: Toggle switch
-
Enclosure: Plastic
-
Insulation: Plastic
-
Material: Plastic/Metal
-
Mounting: Wall
-
Special Features: Controls 6 A 3-wire LED driver/fluorescent ballast loads. Toggle turn lights on/off. Slide up to brighten, down to dim.
-
Operating Temperature: 32 to 104 F
-
Item Type: Preset dimmer, 3-way/single-pole
-
Environmental Conditions: Indoor use only
-
Operator Type: Preset Slide with Toggle On/Off Switch
-
Operation Type: 1-Pole/3-Way with Neutral
-
Load Type: Fluorescent, LED
-
Load Rating: 6 Ampere
-
Wall Plate Type: 1-Gang Fassada (Not Included)
-
Finish: Gloss White
-
Approval: UL 1472, CSA C22.2
-
Style: Toggle
-
Includes: Wire Nuts
-
Lamp Type: Fluorescent
-
Switch Type: 3 Channel
-
Max. Capacity: 1000W,6A
-
Wall Box Size: Single Gang
-
Control Method: 3-Wire
-
Maximum Wattage: 6 Amps
-
Number of Gangs: 1
-
Application Type: Single-Pole or 3-Way
-
Bulb Compatibility: 3-wire Lutron LED/Ballast
-
Lighting Technology: 3-Wire Fluorescent, LED
-
Max. Capacity @ 277VAC: 6 A (Fluorescent)
-
Coordinating Wallplates: Single Gang Wallplate FG-1-XX; 2-Gang Wallplate FG-2-XX
-
Description/Special Features: Matches Existing Switches, Toggle On/Off and Mini Slider to Dim or Brighten, For Use With Fluorescent, LED, CFL
-
Item - Motion Sensing and Dimming: Lighting Dimmer
-
Color - Motion Sensing and Dimming: White
-
Country of Origin (subject to change): United States
-
Installation Location - Motion Sensor: Wall Switch Box
-
Switch Type - Motion Sensing and Dimming: 1-Pole, 3-Way
-
Switch Style - Motion Sensing and Dimming: Concealed with On/Off Toggle
-
Operating Voltage - Motion Sensing and Dimming: 277V AC
-
Communication Method - Motion Sensing and Dimming: Hard Wired
-
Dimmer Switch Style: Toggle With Slide Dimmer
-
Mounting Type: Wall Mount
-
Terminal: Physical
-
Operating Voltage: 277 Volts
-
Operation Mode: Off,Toggle
-
Part Number: AYF-103P-277-WH
-
Item model number: AYF-103P-277-WH
-
Batteries Required?: No
