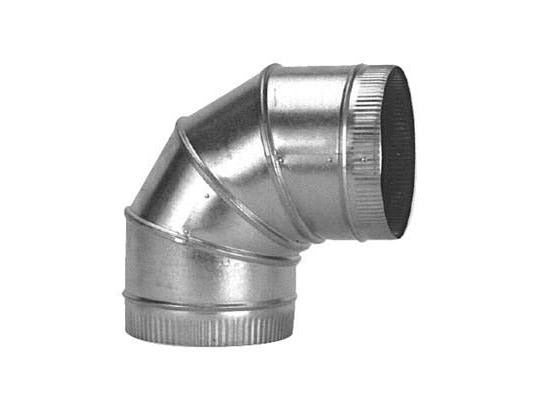

Lukjan rx530926 Adjustable 90 Degree Furnace Elbow 9 Inch

Product Description

The LUKJAN rx530926 is a 9-inch, 90-degree adjustable furnace elbow designed for smoke pipe and ductwork transitions in forced-air heating systems. Fabricated from 26-gauge galvanized steel, this elbow provides a rigid, corrosion-resistant connection at right-angle offsets. The field-adjustable design allows installers to fine-tune alignment during rough-in, accommodating tight clearances and offset layouts without cutting or fabricating custom fittings. It is installed by licensed HVAC technicians and sheet metal contractors working on residential and light commercial heating systems where reliable airflow transitions are required.

This elbow is suited for residential gas furnace flue and smoke pipe runs as well as general forced-air ductwork applications requiring a 90-degree directional change. The adjustable construction makes it particularly useful in retrofit and replacement scenarios where existing ductwork may not align precisely with the new equipment. It fits standard 9-inch round smoke pipe configurations and is appropriate for both new construction and service work in light commercial settings.

Key Features

• Field-adjustable 90-degree elbow accommodates alignment variations without custom fabrication
• 26-gauge galvanized steel construction for durability and corrosion resistance
• 9-inch diameter fits standard smoke pipe and ductwork configurations
• Suitable for residential and light commercial forced-air heating applications
• Rigid fit reduces the need for additional sealing or shimming at the joint

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 9-inch round smoke pipe and HVAC ductwork systems requiring a 90-degree transition in residential and light commercial applications.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed sheet metal contractor in accordance with local mechanical codes and NFPA 54 or NFPA 211 as applicable to the venting system type. Shut down and de-energize the heating system completely before beginning any duct or flue pipe work. Secure all joints with appropriate sheet metal screws or listed duct tape to prevent air or flue gas leakage. Verify clearances to combustibles meet the appliance and local code requirements before returning the system to service.
