Lukjan rb206107 Sheet Metal Duct Boot 10x6x7 in 30 Ga

Product Description

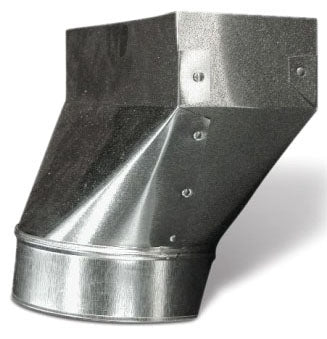

The LUKJAN rb206107 is a straight-style sheet metal duct boot designed to transition from rectangular ductwork to a round floor or ceiling register opening. Fabricated from 30-gauge galvanized steel, it provides a rigid, corrosion-resistant connection point between the supply trunk or branch duct and the finished register. The rectangular inlet measures 10 inches in length by 6 inches in width, and the round outlet measures 7 inches in diameter. HVAC installers and sheet metal mechanics use this boot in residential and light commercial forced-air distribution systems where a register, straight configuration is required.

This boot is suited for new construction and retrofit applications in residential forced-air heating and cooling systems. It fits into standard floor, wall, or ceiling framing cavities where a rectangular-to-round transition is needed at the register location. The straight orientation keeps airflow direct, making it a common choice for floor-mounted supply registers in slab or joist-bay installations. No specific model exclusions are stated by the manufacturer.

Key Features

• Straight register-style boot for rectangular-to-round duct transitions
• 30-gauge galvanized steel construction resists corrosion in conditioned spaces
• Rectangular inlet: 10 inches length x 6 inches width
• Round outlet: 7 inches diameter for standard round collar register fit
• RB20 series design suited for residential and light commercial forced-air systems

Compatibility

Designed as an OEM-style replacement and new-construction fitting compatible with standard 6-inch by 10-inch rectangular branch duct and 7-inch round collar supply registers in residential forced-air HVAC systems.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Shut down the air handler and disconnect power before connecting or repositioning ductwork. Seal all joints with UL-listed duct mastic or foil-backed tape per local mechanical code requirements. Secure the boot to the register grille and duct collar using sheet metal screws appropriate for the gauge.

Technical Specifications

• Series: RB20
• Configuration: Register, Straight
• Inlet Size (A): 10 inches length x 6 inches width
• Outlet Size (B): 7 inches diameter
• Material Thickness: 30 gauge
• Material: Galvanized Steel

Standard Information

• Brand: LUKJAN
• Manufacturer Part Number: rb206107
