Lukjan DX270822 Longway Horizontal Angle 22x8

Product Description

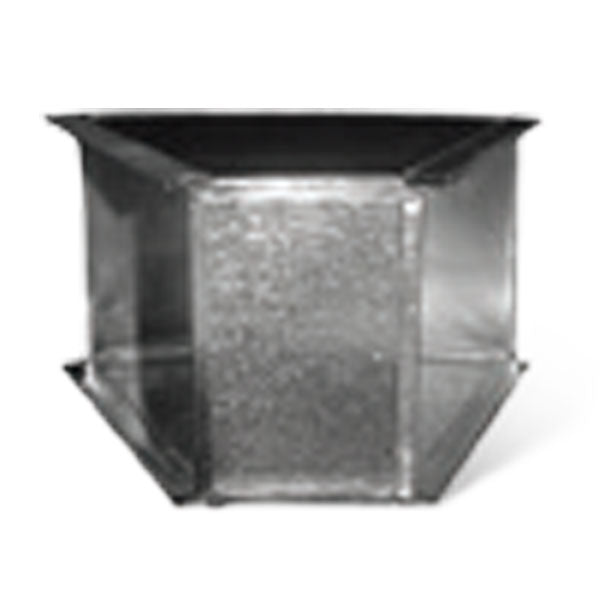

The LUKJAN DX270822 is a longway Broadway horizontal angle fitting used in sheet metal ductwork systems. This angle fitting is designed for horizontal duct transitions and directional changes along the long dimension of the duct opening. It is a standard duct fabrication component installed by HVAC sheet metal technicians and duct installers during new construction and retrofit applications. The 22 x 8 inch sizing makes it suitable for medium-capacity trunk and branch duct runs where directional changes are required at the end or transition point of a rectangular duct section.

This fitting is used in residential and light commercial HVAC duct systems where a horizontal angle change is needed along the longway orientation of the duct. It is a common component in supply air duct assemblies built with rectangular sheet metal sections. Installers typically use this fitting to terminate or redirect trunk lines or main branch runs within a duct layout.

Key Features

• Longway orientation directs the angle along the 22-inch dimension of the duct opening
• Horizontal angle configuration suitable for ceiling and attic duct routing
• 22 x 8 inch duct size fits standard rectangular sheet metal duct runs
• Sheet metal construction consistent with standard HVAC duct fabrication practice
• Broadway-style angle fitting for straightforward field installation

Compatibility

Designed as an OEM-style sheet metal duct fitting compatible with standard 22 x 8 inch rectangular duct systems in residential and light commercial HVAC installations.

Installation Notes

This fitting is installed by licensed HVAC technicians or sheet metal workers as part of a ducted air distribution system. Power down the air handling unit and close the supply air dampers before making connections in an active duct system. Secure connections with sheet metal screws and seal all joints with UL-listed duct sealant or mastic in accordance with local mechanical codes and SMACNA standards. Do not use this fitting in applications outside its rated duct dimensions.

Technical Specifications

• Size: 22 x 8 inches
• Product Type: Longway Horizontal Angle
• Category: HVAC Duct Fittings
• Group: Angles and Elbows

Standard Information

• Brand: LUKJAN
• Manufacturer Part Number: DX270822
