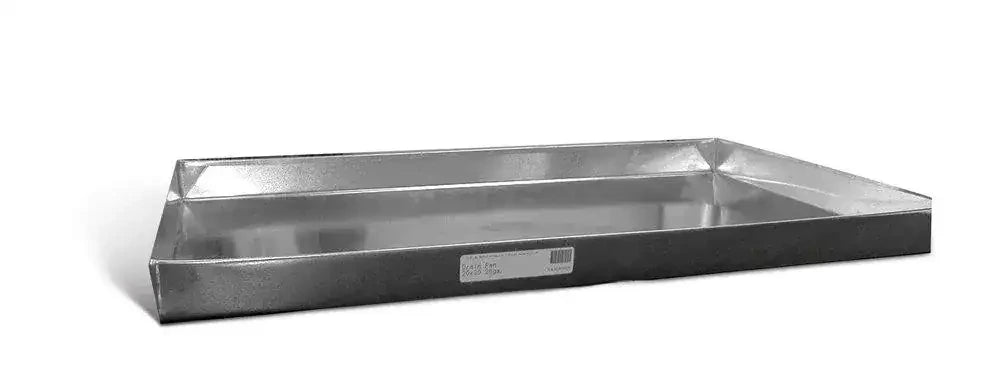

Lukjan ca30303026n Drain Pan 30x30 Inches 26 Gauge

Product Description

The LUKJAN ca30303026n is a 26-gauge metal drain pan designed to collect and redirect condensate in HVAC systems. Measuring 30 inches x 30 inches, it provides a large catchment area suited to commercial and residential air handling equipment. At 3.8 pounds, the pan is lightweight enough for straightforward single-tech installation without sacrificing structural rigidity. The 26-gauge metal construction holds its shape under the moisture and weight loads common in active HVAC service. HVAC technicians and sheet metal contractors specify this pan where a code-compliant secondary drain pan is required beneath air handlers, fan coils, or evaporator coils.

This drain pan fits installations where a square-format secondary containment pan is needed beneath ceiling-mounted or platform-set air handling equipment. The 30 inches x 30 inches footprint accommodates a wide range of residential and light commercial air handler footprints. It is appropriate for new construction installations and for retrofit service calls where an existing pan has corroded or failed. Sheet metal contractors and licensed HVAC technicians are the primary installers for this type of component.

Key Features

• 26-gauge metal construction provides rigid, durable condensate containment
• 30 inches x 30 inches square footprint suits a broad range of air handler sizes
• Lightweight at 3.8 pounds for easy single-tech handling during installation
• Heavy-duty gauge rating resists deformation under standing condensate load
• Designed for use as a primary or secondary drain pan in HVAC systems

Compatibility

Designed as an OEM-style replacement or new-install drain pan for residential and light commercial HVAC air handlers and evaporator coil assemblies requiring a 30 inches x 30 inches square catchment pan.

Installation Notes

Installation is performed by a licensed HVAC technician or qualified sheet metal contractor. Power down the air handling unit and shut off the refrigerant system before removing or repositioning any existing drain pan. Ensure the pan is level after placement to allow proper condensate flow toward the drain port. Follow local mechanical codes and ASHRAE guidelines for secondary drain pan requirements in ceiling or platform-mounted air handler applications.
