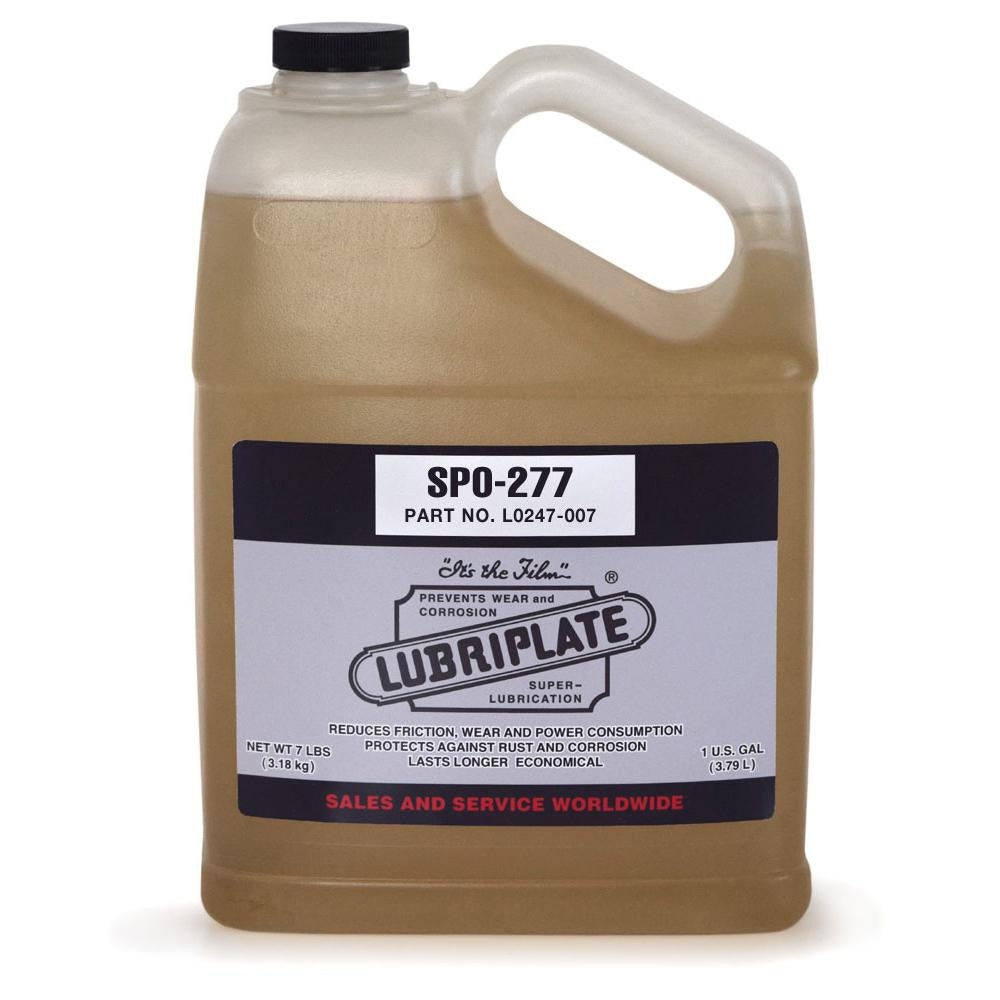

Lubriplate L0247-007 Mineral Gear Oil Iso 460 1 Gal

Product Description

The LUBRIPLATE L0247-007 is a mineral-based gear oil packaged in a 1-gallon bottle, formulated for heavy-duty lubrication of enclosed gear cases, bearings, chains, and machine ways. It carries an ISO 460 viscosity grade and an SAE 140 rating, with a measured viscosity of 2260 SUS at 100 degrees F and 148 SUS at 210 degrees F. The amber-colored oil is manufactured under ISO 9001 registered quality standards. It is intended for installation and maintenance by industrial mechanics, millwrights, and field service technicians working on mechanical drive systems and rotating equipment.

This gear oil is suited for enclosed gear drives, chain drives, bearing housings, general machine oiling points, and machine way lubrication in both industrial and commercial maintenance settings. The high viscosity index supports use in applications that see elevated operating temperatures up to 210 degrees F. It is not classified as a food-grade lubricant and should not be used in food-contact or incidental-ingestion applications. AGMA Number 7 designation makes it compatible with gear sets requiring that specification.

Key Features

• ISO 460 viscosity grade with SAE 140 equivalent rating for heavy gear and bearing applications
• Mineral base oil with AGMA Number 7 designation
• Viscosity of 432 cSt at 40 degrees C and 30 cSt at 100 degrees C
• Flash point of 475 degrees F, supporting use in higher-temperature environments
• Pour point of 15 degrees F, allowing flow initiation in cold-start conditions
• Manufactured under ISO 9001 registered quality management standards
• Amber color aids visual identification during fill and inspection

Compatibility

Designed for use in enclosed gear cases, chain drives, bearings, general oiling points, and machine ways requiring an ISO 460 or SAE 140 mineral gear oil meeting AGMA Number 7 specification. Not food-grade; not suitable for food-processing contact applications.

Installation Notes

Applied by industrial maintenance technicians or equipment service personnel following the equipment manufacturer drain, flush, and fill procedures. De-energize and lock out all associated drive equipment before draining or filling gear cases. Verify sump capacity before filling and do not overfill, as excess oil generates heat and causes seal failure. Dispose of used oil in accordance with applicable local environmental regulations.
