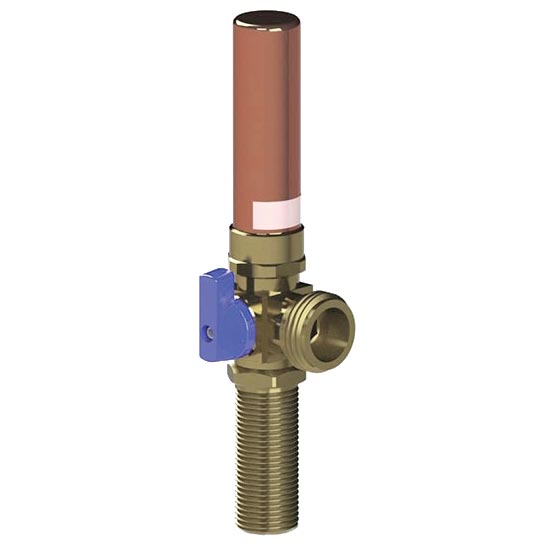

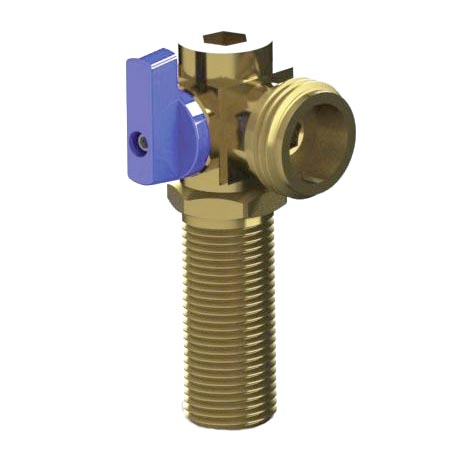

LSP Products P-09100-L-M Long Angle Washing Machine Outlet Box Valve 125 psi MNPT/C x Male

Product Description

The LSP Products P-09100-L-M is a long angle washing machine outlet box valve. This valve is designed to connect washing machines to water lines safely and efficiently. It features a brass body that provides durability and corrosion resistance. With a pressure rating of one hundred twenty-five psi, this valve can handle high water pressure effectively.

• Quick quarter-turn ball valve operation
• Pliable double stem O-rings for reliability
• PTFE seats for wear resistance

Product Highlights

Ideal for residential and commercial washing machine installations. Provides reliable flow control and easy installation.

Product Information

Standard Information

• Brand: LSP Products
• Part Number: M1134

Technical Specifications

• Actuator Type: Blue Handle
• Body Material: Brass
• End Style: MNPT/C x Male
• Mfg Standards/Approvals: ASME A112.18.1, cUPC Listed, IAMPO Listed
• Nominal Size: 1/2 x 3/4 in
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 160 deg F
• Trim Material: PTFE Seat
• Type: Long Angle
• Warranty: 1 Year Limited
