Lsp Products OB-8140-LL Mini Ice Maker Box 1/2 in Uponor ProPEX x 1/4 in Compression (Tract Pack -T Option)

Product Description

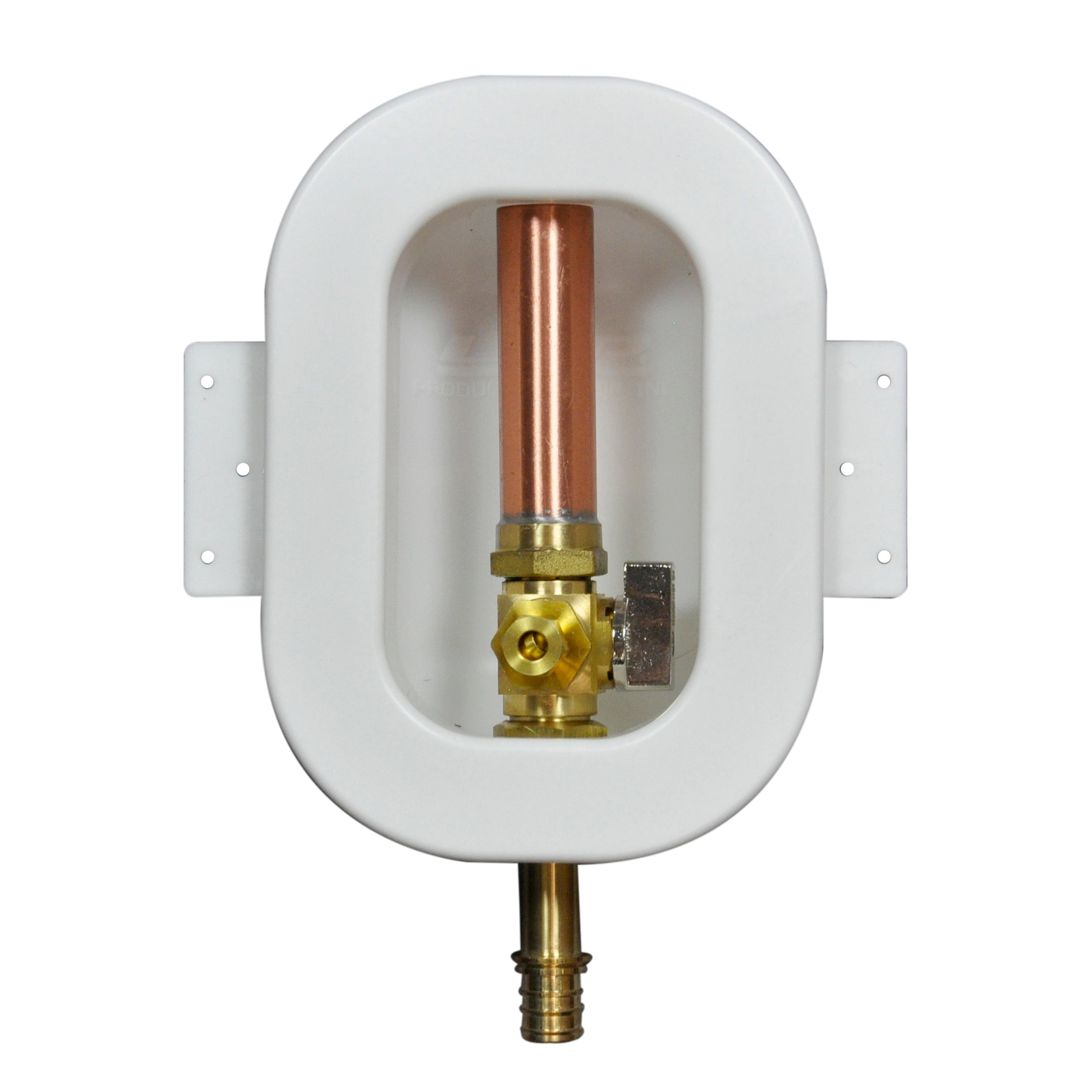

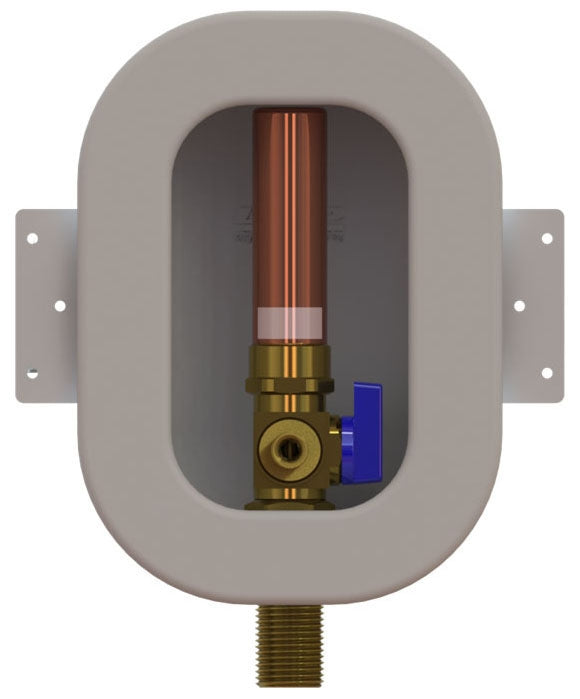

The LSP PRODUCTS OB-8140-LL is a mini ice maker installation box with an integrated water hammer arrester, a 1/2 in Uponor ProPEX inlet and a 1/4 in compression outlet. The recessed box is molded from high-impact plastic, ships assembled, and includes an adjustable faceplate that accommodates up to 1.2 in wall thickness and a captive nail for mounting. It is intended for compact ice maker plumbing installations.

• Integrated water hammer arrester with included Uponor ProPEX valve and 1/4 in compression outlet
• Molded from high-impact plastic with adjustable faceplate for up to 1.2 in wall thickness; ships assembled
• Compact recessed box dimensions approximately 3.2 in W x 2.26 in D x 5.12 in H; includes captive nail

Product Highlights

Mini recessed ice maker outlet box with 1/2 in Uponor ProPEX inlet, 1/4 in compression outlet, integrated water hammer arrester, adjustable faceplate, and captive mounting nail.

Product Information

Standard Information

• Brand: LSP PRODUCTS
• Manufacturer Part Number: OB-8140-LL

Technical Specifications

• Brand: LSP PRODUCTS
• Manufacturer: NCH Corporation (LSP Products Group)
• Manufacturer Part Number: OB-8140-LL
• Connection Type: 1/2 in Uponor ProPEX (PEX) inlet x 1/4 in compression outlet
• Inlet: 1/2 in Uponor ProPEX
• Outlet: 1/4 in compression
• Material: High-impact plastic
• Assembly: Shipped assembled
• Adjustable Faceplate Max Thickness: Up to 1.2 in
• Box Dimensions: 3.2 in W x 2.26 in D x 5.12 in H
• Faceplate Dimensions: 4.92 in W x 6.88 in H
• Includes: Captive nail
• Valve Supplied: Uponor ProPEX valve included
• Features: Integrated water hammer arrester; adjustable faceplate
• Certifications: IAPMO; ASME A112.18.1/CSA B125.1 (File 4577); NSF/ANSI 61; ASSE 1010 (File 4541); UPC
• Lead-free: Yes
• Tract Pack Option: Add "-T" to part number for tract pack (faceplates packaged separately)
• UPC: 671436012525
