Lsp Products OB-801-LL Ice Maker Box (1/2 in C x 1/4 in Compression)

Product Description

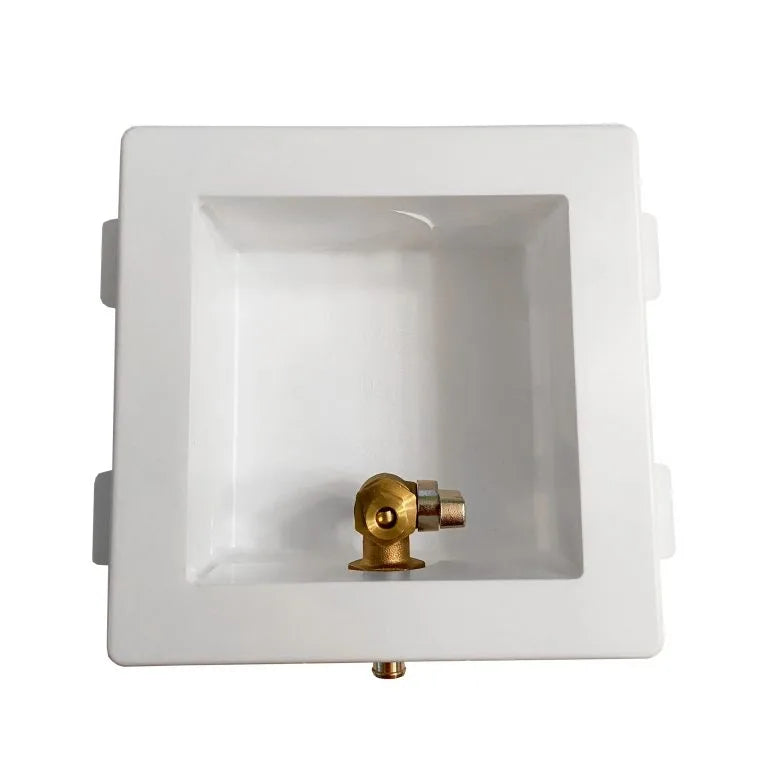

Lsp Products OB-801-LL is an assembled plastic ice maker box with copper sweat valves providing a 1/2 in copper sweat inlet and a 1/4 in compression outlet. The slim-line profile requires 1 in backing and the adjustable faceplate accommodates up to 5/8 in wall thickness. The unit can be installed vertically, upside down, or horizontally, is lead free, and meets ASME A112.18.1/CSA B125.1 standards.

• Slim-line box profile requires 1 in backing; adjustable faceplate accommodates up to 5/8 in wall thickness.
• Connections: 1/2 in copper sweat inlet with copper valves and 1/4 in compression outlet.
• Installation: can be mounted vertically, upside down, or horizontally; lead free plastic construction; meets ASME A112.18.1 / CSA B125.1.

Product Highlights

Assembled plastic ice maker box with 1/2 in copper sweat inlet and 1/4 in compression outlet; adjustable faceplate; ASME/CSA compliant.

Product Information

Standard Information

• Brand: LSP PRODUCTS
• Manufacturer Part Number: OB-801-LL
• Country of Origin: USA

Technical Specifications

• Brand: LSP Products
• MPN: OB-801-LL
• Type: Assembled plastic ice maker box
• Connection: 1/2 in copper sweat inlet x 1/4 in compression outlet
• Material: Plastic box with copper sweat valves
• Dimensions: 5.12 in H x 3.2 in W x 2.26 in D
• Backing Requirement: Requires 1 in backing
• Face Plate Adjustment: Accommodates up to 5/8 in wall thickness
• Installation Orientation: Vertical, upside down, or horizontal
• Lead Free: Yes
• Standards: ASME A112.18.1 / CSA B125.1
• Manufacturer: LSP Products Group
• Country of Origin: USA
• UPC: 671436243127
• SKU: 618404
