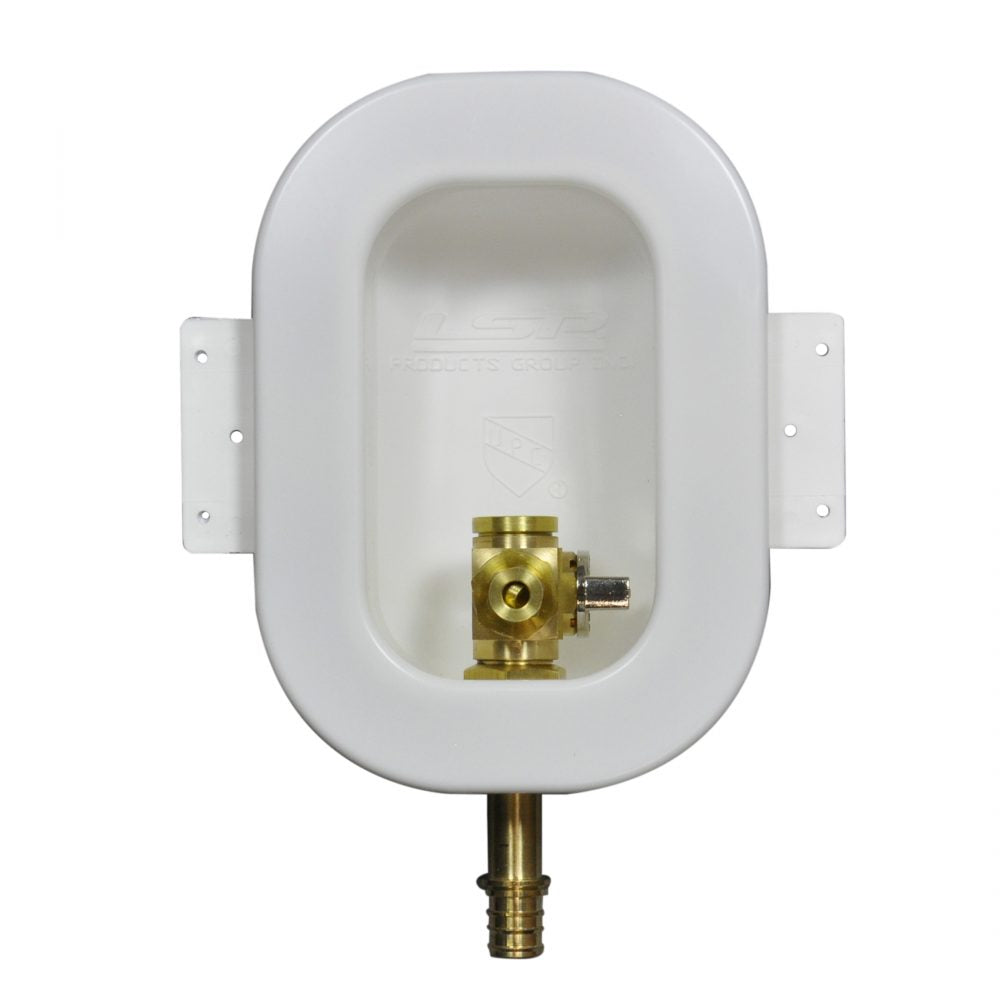

Lsp ob-8050-ll Mini Ice Maker Box Ball Valve

Product Description

The LSP ob-8050-ll is a mini ice maker box designed for residential plumbing rough-in applications where a dedicated water supply connection is required for ice makers and similar appliances. The unit ships fully assembled and incorporates a quarter turn ball valve for fast, reliable shutoff. Longer mounting ears extend fitment across a wider range of framing and installation conditions. The modern enclosure design balances a low-profile footprint with added structural strength, making it a dependable choice for new construction and remodel work alike.

This ice maker box is suited for residential plumbing installations where a recessed in-wall supply outlet is needed behind refrigerators, ice makers, or similar appliances. The fully assembled construction reduces on-site labor. The quarter turn ball valve allows quick shutoff without the wear associated with multi-turn compression valves, which is a practical advantage in tight wall cavities.

Key Features

• Fully assembled at the factory — no field assembly required
• Quarter turn ball valve provides fast, positive water shutoff
• Extended mounting ears accommodate varied stud spacing and framing configurations
• Modern enclosure design engineered for added structural strength and long-term reliability
• Recessed wall-box format keeps the supply connection flush and out of the way

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential in-wall ice maker supply box applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and depressurize the line before beginning work. Secure the box to wall framing using the provided mounting ears, and confirm all supply connections are leak-tested before closing the wall cavity. Do not overtighten threaded fittings, as this can damage valve seats and threaded ports.

Technical Specifications

• Valve Type: Quarter Turn Ball Valve
• Assembly: Pre-assembled

Standard Information

• Brand: LSP
• Manufacturer Part Number: ob-8050-ll
