Lsp OB-509-LL Metal Ice Maker Box With Water Hammer Arrester

Product Description

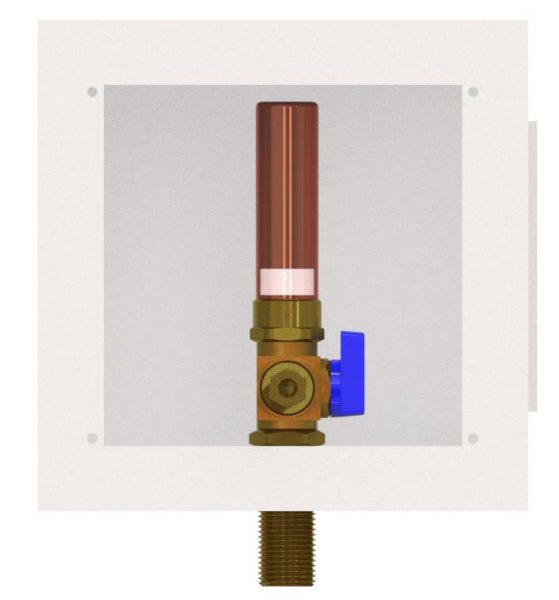

The LSP OB-509-LL metal ice maker box features a water hammer arrester. Constructed from 20 ga steel with a powder-coated finish, this unassembled ice maker box mounts on the side of a stud and can be installed upside down, vertically, or horizontally. Includes a lead-free EZ-turn quarter ball valve.

• Mounts on side of stud and can be installed upside down, vertically or horizontally
• Valves with Hammer Arresters do not need an access panel and can be installed in any direction
• Lead free EZ-turn quarter ball valve includes long lasting O-rings and PTFE seats and durable brass resists cracking/corrosion and allows for fingertip control of water flow

Product Highlights

The LSP OB-509-LL ice maker box is made from 20 ga steel and features a water hammer arrester. It can be installed in multiple orientations.

Product Information

Standard Information

• Brand: LSP
• Manufacturer Part Number: OB-509-LL

Technical Specifications

• Item #: OB-509-LL
• Description: White, 1/2" Copper Sweat x 1/4" Compr.
• Brand: LSP
• MFR Part No: OB-509-LL
• TSCO Part Number: 049336
• Finish: Powder Coated
• Material: 20 ga Steel
• Type: Unassembled
• Standard Approvals: ASME A112.18.1, ASSE 1010 File No. 4393, cUPC Listed, CSA 125.1 File 4577, IAPMO PS 54 File No. 0901/File No. 6545, IGC 168, NSF/ANSI 61 File No. N-6614
• Model: OB-509-LL
• Manufacturers: LSP Products Group
• Mfg. Model: OB-509-LL
• Product Type: Plumbing Part
