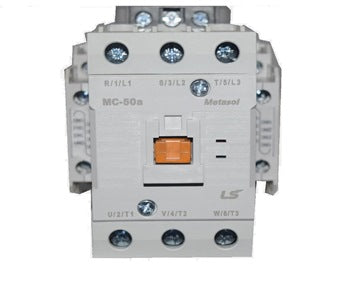

Lsis 1380012900 Iec contactor 50 A (3 pole) MC50A-30-22-K7-L-E

Product Description

Lsis 1380012900 is an IEC contactor in the Metasol MC series with a 120 V coil and 3-pole main contacts rated 50 A for 380–480 VAC. It provides screw terminal connections, DIN rail or screw mounting, and IP20 protection for motor control and general switching. The unit includes built-in auxiliary contact options and supports direct-mount overload relays; AC dimensions are 79 x 106 x 122 mm and weight is 2.31 lbs.

• Coil: 120 VAC; main contacts: 3-pole, 50 A rated for 380–480 VAC.
• Mounting and terminals: DIN rail or screw mountable with screw terminals; front/side mountable accessories supported.
• Auxiliary and protection: Built-in auxiliary contacts (configurable, e.g., 2 NO or 2 NO/2 NC); IP20 rated; direct-mount overload relay options available.

Product Highlights

50 A, 120 VAC coil, 3-pole IEC contactor with DIN rail or screw mounting and configurable auxiliary contacts

Product Information

Standard Information

• Brand: LSIS
• Manufacturer Part Number: 1380012900
• Country of Origin: United States (item located in Castalia, Ohio, United States)

Technical Specifications

• Brand: LSIS
• Manufacturer: LS Electric (LSIS CO)
• Manufacturer Part Number: 1380012900
• Alternate Part Number: MC50A-30-22-K7-L-E
• Model: MC-50A
• Series: MC (Metasol MC series)
• Product Type: IEC contactor / motor contactor
• Current Rating: 50 A
• Coil Voltage: 120 VAC
• Rated Main Voltage: 380-480 VAC
• Poles: 3 pole
• Auxiliary Contacts: 2 built-in auxiliary contacts (configurable: 2 NO or 2 NO/2 NC)
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or screw mountable
• IP Rating: IP20
• Dimensions (W x H x D mm) AC: 79 x 106 x 122
• Dimensions (W x H x D mm) DC: 79 x 106 x 149
• Weight (lbs): 2.31
• Horsepower Rating: 40 HP @ 480 V; 25 HP @ 220 V (see notes)
