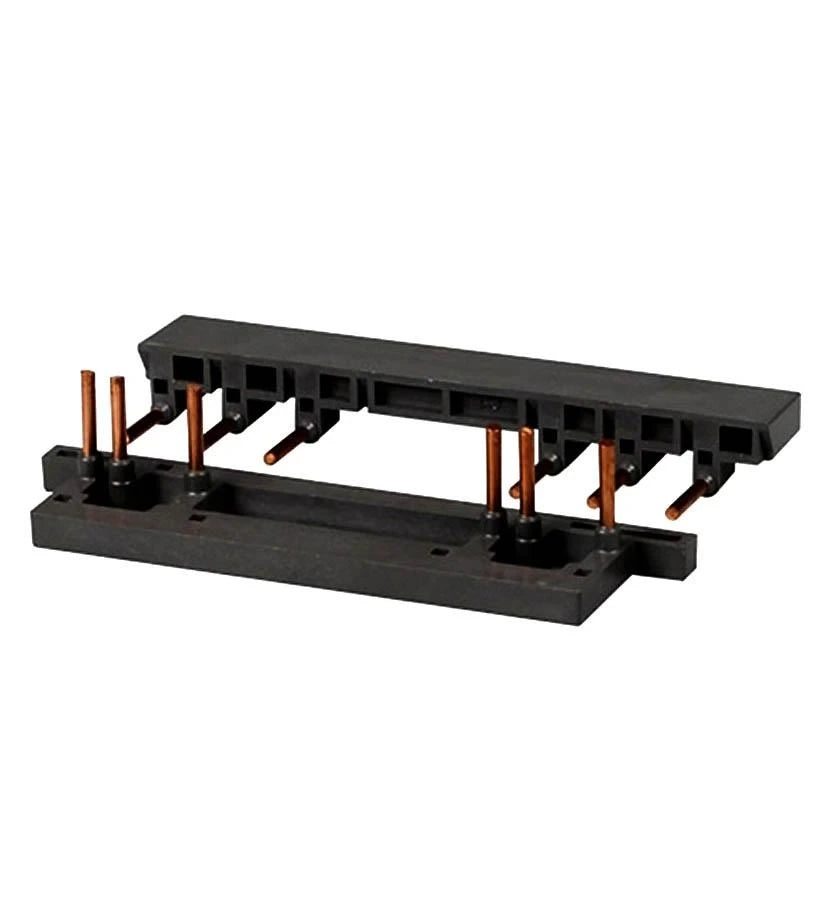

Ls Electric 76671635003 Reversing Wiring Kit Mc-series

Product Description

The LS ELECTRIC 76671635003 is a reversing wiring kit designed to enable reversing contactor connections on compatible MC-Series contactors. This kit provides the hardware and wiring components needed to configure a reversing setup, allowing the associated contactors to control motor direction changes in industrial and commercial electrical systems. It is installed by licensed electricians and industrial maintenance technicians working on motor control circuits. The kit carries a 2-year manufacturer warranty and weighs 0.5 pounds.

This reversing wiring kit is used in motor control applications where forward and reverse operation is required. It is designed for use with Metasol MC-Series contactors, specifically the MC-6A, MC-9A, MC-12A, and MC-18A models. Typical installation scenarios include industrial motor starters, conveyor systems, pump controls, and other equipment requiring bidirectional motor operation. The kit simplifies the wiring process for reversing contactor configurations in panel-build and field-service applications.

Key Features

• Enables reversing contactor wiring configuration on compatible MC-Series units
• Designed for the MC-6A, MC-9A, MC-12A, and MC-18A contactors
• Compatible with LS ELECTRIC Metasol MC-Series product line
• 2-year manufacturer warranty
• Lightweight at 0.5 pounds for easy handling and installation

Compatibility

Designed for use with LS ELECTRIC Metasol MC-Series contactors, specifically the MC-6A, MC-9A, MC-12A, and MC-18A models.

Installation Notes

Installation should be performed by a qualified electrician familiar with motor control wiring and NEC requirements. De-energize and lock out the control panel before beginning any wiring work. Verify that the contactor model is confirmed compatible before installing the reversing kit. Follow the contactor manufacturer wiring diagram and applicable local electrical codes throughout the installation process.
