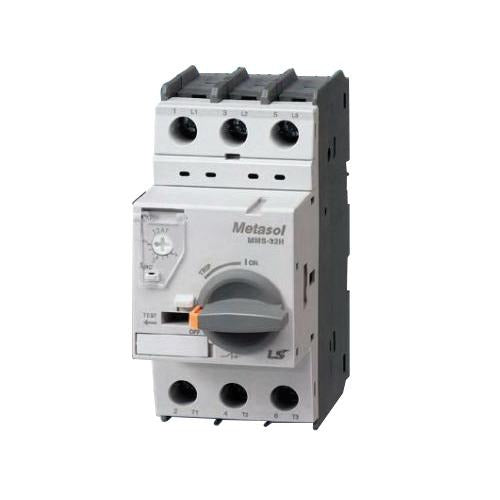

Ls Electric 705104900 Manual Motor Starter 26A 690V 3P

Product Description

The LS ELECTRIC 705104900 is a 3-pole manual motor starter from the Metasol Series, designed to provide manual motor control and overload protection in industrial electrical systems. Rated for 26 amps and up to 690 volts at 50/60 Hz, it delivers reliable short-circuit and overload protection for three-phase motor loads. The trip range spans 18 to 26 A, giving technicians adjustable overload protection suited to the connected motor. With an IP20 enclosure rating and screw terminal connections accepting 18 to 8 AWG wire, this starter is built for panel or DIN rail installation in commercial and industrial control enclosures. Licensed electricians and industrial controls technicians are the primary installers.

The 705104900 is suited for industrial and commercial motor control applications where a compact, manually operated protective device is required. It mounts via DIN rail or direct screw mounting, offering flexibility in panel layout. The rotary handle provides straightforward on/off operation at the motor starter itself. The 32AF frame and standard breaking capacity make it appropriate for typical motor branch circuit protection in factory automation, HVAC equipment panels, pump controls, and similar three-phase motor applications operating within its voltage and current ratings.

Key Features

• 26 A amperage rating with an 18 to 26 A adjustable trip range for matched motor protection
• 690 V rated, 50/60 Hz compatible for use on standard North American and international power systems
• 3-pole configuration for three-phase motor branch circuit protection
• DIN rail and screw mounting options for flexible panel installation
• Screw terminals accept 18 to 8 AWG wire for broad wiring compatibility
• Rotary handle operation with IP20 enclosure rating
• Rated for 100,000 operating cycles for long service life in active control panels

Compatibility

Designed as an OEM-style manual motor starter within the LS ELECTRIC Metasol Series, suitable for three-phase motor branch circuit protection applications rated within the 690 V and 26 A specifications of this device.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and de-energize all power to the panel before mounting or wiring this starter. Verify that conductor sizing and circuit protection upstream of the starter are compatible with the connected motor load and the starter's ratings before energizing. Do not exceed the specified wire size range at the screw terminals.
