Ls Electric 705104700 Manual Motor Starter 17A 690V 3 Pole

Product Description

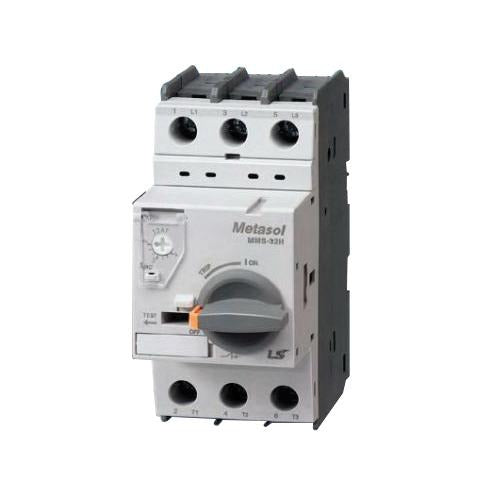

The LS ELECTRIC 705104700 is a 3-pole manual motor starter from the Metasol Series, rated at 17 amps and 690 volts for use on 50/60 Hz systems. It provides manual overload and short-circuit protection for three-phase motors in industrial and commercial electrical distribution systems. The unit features a rotary handle for direct manual operation, screw terminal wiring connections, and an IP20 enclosure rating. Trip range is set at 11 to 17 A, covering a practical span of motor load applications. Frame type is 32AF. Licensed electricians and industrial maintenance technicians are the primary installers for this class of motor protection device.

The 705104700 is suited for motor branch-circuit protection in industrial panels, machine control enclosures, and commercial mechanical rooms. It mounts to standard DIN rail or via direct screw mounting, giving installers flexibility in panel layout. The Metasol Series is designed for demanding environments where reliable overcurrent protection and a compact footprint are required. Wire range acceptance runs from 18 to 10 AWG on standard terminals and 18 to 8 AWG on larger conductors, accommodating a variety of field wiring configurations. Operating temperature range is -20 to 60 degrees C.

Key Features

• 17 A amperage rating with 11 to 17 A adjustable trip range for precise motor protection
• 3-pole configuration suitable for three-phase motor branch circuits
• Dual mounting options: DIN rail or direct screw mount for panel flexibility
• Screw terminal connections accept 18 to 10 AWG and 18 to 8 AWG wire
• Rotary handle provides direct manual on/off operation
• IP20 enclosure rating with 100,000 rated operating cycles for extended service life

Compatibility

Designed as an OEM-style manual motor starter replacement within the LS ELECTRIC Metasol Series, suitable for three-phase motor protection applications requiring a 32AF frame, 17 A trip range, and 690 V rated equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for motor branch-circuit protection. Disconnect and lock out all power to the panel before removing or installing any motor starter or overcurrent device. Verify wire gauge compatibility with terminal ratings before terminating field wiring. Do not exceed the rated amperage or operating temperature range specified for this device.
