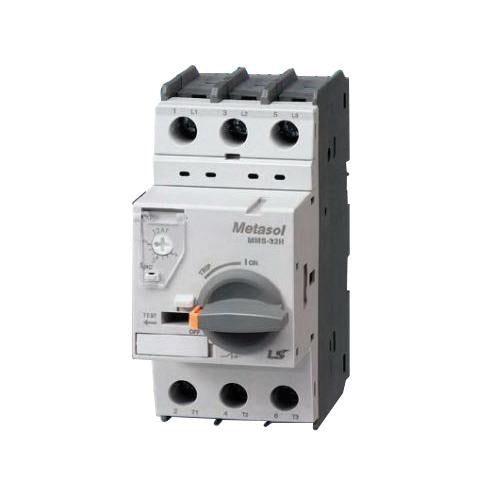

Ls Electric 705104600 Manual Motor Starter 13A 690V 3 Pole

Product Description

The LS ELECTRIC 705104600 is a 3-pole manual motor starter from the Metasol Series, designed to provide manual switching and motor overload protection in industrial control panels. It carries a 13-amp amperage rating with a 9 to 13 A adjustable trip range and is rated for 690 volts at 50/60 Hz. The 32AF frame and screw terminal connections make this a straightforward, field-serviceable device suited for light industrial motor branch circuit protection. Installation is performed by licensed electricians and qualified industrial controls technicians. The IP20 enclosure rating keeps internal components protected from solid object intrusion in indoor panel environments.

The 705104600 is intended for use in industrial and commercial motor control applications where a compact, DIN rail or screw-mountable manual starter is required. Its 45 mm width allows it to fit efficiently in standard control panel enclosures. The rotary handle provides direct manual operation, and the device supports up to 100,000 operating cycles, making it appropriate for applications with frequent switching demand. It is suited for 3-phase motor circuits in manufacturing, process control, and building mechanical systems.

Key Features

• 13 A amperage rating with adjustable trip range of 9 to 13 A
• Rated for 690 volts at 50/60 Hz for broad compatibility with international power systems
• Interrupt ratings of 100 kA, 50 kA, 42 kA, and 6 kA depending on application
• Dual mounting options: DIN rail or screw mount for flexible panel installation
• Screw terminals accept 18 to 10 AWG and 18 to 8 AWG wire sizes
• Rotary handle operation with up to 100,000 operating cycles rated service life
• IP20 enclosure rating for indoor panel use

Compatibility

Designed as an OEM-style manual motor starter replacement or new installation component for 3-pole motor branch circuits rated up to 690 volts within the LS ELECTRIC Metasol Series platform.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. De-energize and lock out the panel before mounting or wiring this device. Verify wire gauge selection against the terminal ratings of 18 to 10 AWG or 18 to 8 AWG before terminating conductors. Confirm the trip range is set to match the full-load amperage of the connected motor before returning the circuit to service.
