Ls Electric 705104500 Manual Motor Starter 10A 690V 3P

Product Description

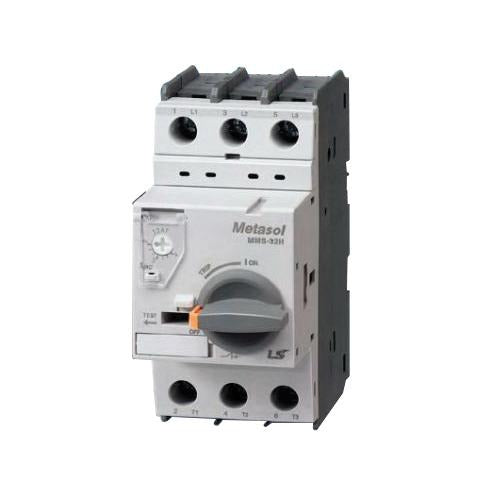

The LS ELECTRIC 705104500 is a 3-pole manual motor starter from the Metasol Series, designed for motor branch-circuit protection and control in industrial electrical systems. Rated at 10 amps and 690 volts at 50/60 Hz, it provides reliable overload and short-circuit protection with a trip range of 6 to 10 A. The unit features a rotary handle for manual operation and screw terminals that accept 18 to 10 AWG or 18 to 8 AWG wire depending on the circuit side. It is housed in an IP20 enclosure and fits within a 32AF frame class. Licensed electricians and industrial maintenance technicians install this device in motor control panels and distribution boards.

The 705104500 is suited for 3-phase motor protection applications in commercial and industrial settings. Its compact footprint — 45 mm wide, 94 mm tall, and 99.6 mm deep — makes it well suited for space-constrained control enclosures. The device supports both DIN rail and screw mounting, giving installers flexibility depending on panel construction. With a rated operational life of 100,000 cycles and a voltage rating of 690 volts, it is appropriate for demanding industrial duty cycles where reliable motor protection is required.

Key Features

• 10 A amperage rating with 6 to 10 A adjustable trip range for precise motor protection
• 690 V voltage rating at 50/60 Hz for compatibility with international power systems
• Interrupt ratings of 100 kA, 50 kA, and 6 kA to meet varying fault-current requirements
• 3-pole configuration suitable for 3-phase motor circuits
• Dual mounting options: DIN rail or screw mount for panel flexibility
• Rotary handle operation with screw terminal wiring up to 18 to 8 AWG
• IP20 enclosure rating and 100,000 rated operating cycles for industrial duty use

Compatibility

Designed as an OEM-style manual motor starter replacement within the LS ELECTRIC Metasol Series, suitable for 3-phase motor branch-circuit protection panels using 32AF frame devices.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before mounting or wiring the device. Secure wiring connections to the screw terminals using appropriately sized wire within the rated AWG range, and verify the trip setting matches the motor full-load amperage before energizing. Do not exceed the rated voltage or amperage limits.
