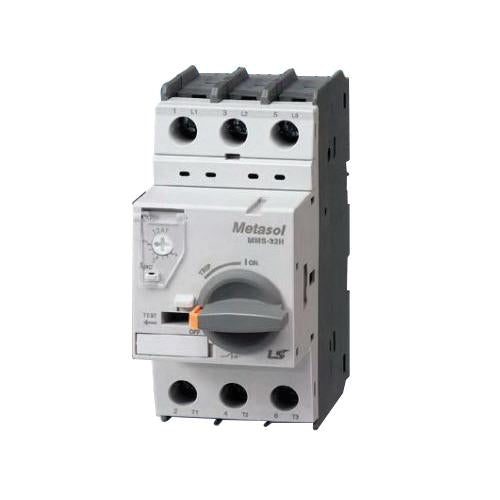

Ls Electric 705104100 manual motor starter 2.5 A

Product Description

The LS Electric 705104100 manual motor starter (MMS) is designed for motor protection, offering high performance and reliability. Meeting IEC and UL standards, it features overload and phase failure protection, enhanced short circuit capabilities, and quality. It has a 2.5 A amperage rating, a voltage rating of 690 V, and an interrupt rating of 100 kA and 8 kA.

• Features MMS-32/63 trip indicator for enhanced visibility
• Offers reinforced breaking reliability
• Provides overload, short circuit, and phase failure protection

Product Highlights

This manual motor starter ensures robust motor protection with advanced features and compliance with international standards.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 705104100

Technical Specifications

• Amperage Rating: 2.5 A
• Enclosure Type: IP20
• Frame Type: 32AF
• Frequency Rating: 50/60 Hz
• Height: 94 mm
• Interrupt Rating: 100 kA, 8 kA
• Mounting Type: DIN Rail, Screw
• Number of Poles: 3
• Operating Cycles: 100000 cycles
• Series: Metasol Series
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Screw
• Trip Range: 1.6 to 2.5 A
• Voltage Rating: 690 V
• Width: 45 mm
• Wire Size: 18 to 10 AWG, 18 to 8 AWG
