Ls Electric 705103600 Manual Motor Starter 690V 0.25A

Product Description

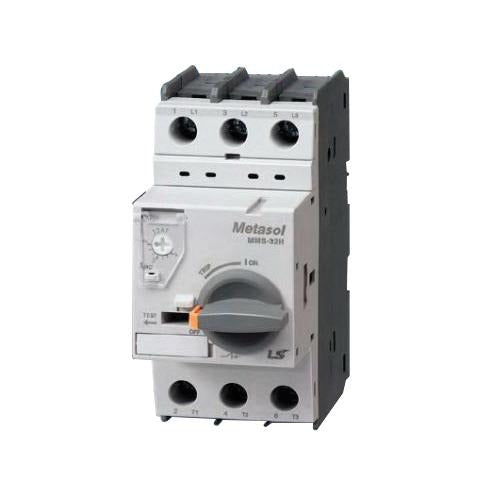

The LS ELECTRIC 705103600 is a manual motor starter from the Metasol Series, designed to provide overcurrent protection and manual on/off control for small three-phase motors in industrial and commercial electrical systems. It operates at up to 690 volts at 50/60 Hz and carries a trip range of 0.16 to 0.25 amps, making it suited for low-current motor loads. The unit features a rotary handle for manual operation, IP20 ingress protection, and a 100 kA interrupt rating for high fault-current environments. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This manual motor starter is used in motor branch circuit protection applications across light manufacturing, HVAC equipment rooms, pump panels, and control panel assemblies. The 3-pole, 32AF frame configuration handles three-phase loads within the 0.16 to 0.25 amp trip range. It mounts on standard DIN rail or via direct screw mounting, giving panel builders flexibility in enclosure layout. The Metasol Series is suited for both new panel construction and retrofit applications where a compact, reliable motor protection device is required.

Key Features

• Trip range of 0.16 to 0.25 amps for precise overcurrent protection on small motor loads
• 690-volt rated at 50/60 Hz for use in international and domestic electrical systems
• 100 kA interrupt capacity for high fault-current panel environments
• 3-pole configuration in 32AF frame with rotary handle operation
• Dual mounting options: standard DIN rail or direct screw mount
• IP20 protection rating with screw terminal connections accepting 18 to 10 AWG wire

Compatibility

Designed as an OEM-style replacement or new-installation manual motor starter for three-phase motor branch circuit protection panels using standard DIN rail mounting infrastructure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. De-energize the panel and verify absence of voltage before mounting or wiring the device. Use appropriately rated conductors within the 18 to 10 AWG range for line and load terminals, and 18 to 8 AWG where the input specifies. Confirm the enclosure provides adequate clearance for the rotary handle operation before final panel assembly.
