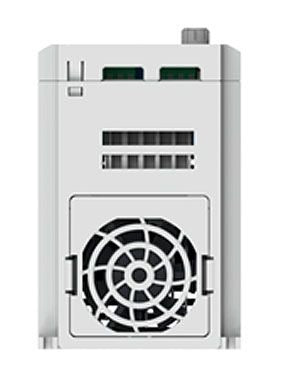

Ls Electric 64180005 Conduit Kit Module a 0.5-1 Hp G100

Product Description

The LS ELECTRIC 64180005 is a Conduit Kit Module A designed for use with the G100 series variable frequency drive (VFD) in the 0.5 to 1 HP range. This conduit kit provides a structured wiring pathway for power and control conductors entering the drive enclosure, supporting a clean, code-compliant installation. It is a factory-matched accessory that integrates directly with the G100 drive chassis. Licensed electricians and drive technicians typically specify and install this kit when a conduit-entry configuration is required at commissioning or during field retrofit.

This kit is suited for light commercial and industrial applications where the G100 VFD is installed in a NEMA 1 enclosure environment. It applies specifically to G100 drives rated from 0.5 HP to 1 HP, covering small motor control applications such as fans, pumps, and conveyor systems. The Module A designation identifies this as the conduit entry kit for the lower HP range of the G100 platform, making it essential to order the correct module for the drive size on hand.

Key Features

• Factory-matched conduit kit for the LS ELECTRIC G100 VFD platform
• Sized for G100 drives in the 0.5 to 1 HP range
• Module A designation ensures correct fit for the lower HP G100 chassis
• Supports organized conduit entry for power and control wiring
• Compatible with NEMA 1 enclosure configurations

Compatibility

Designed for use with the LS ELECTRIC G100 series variable frequency drive, specifically the 0.5 to 1 HP models requiring Conduit Module A.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for VFD wiring and conduit fill. De-energize and lock out the drive before attaching or modifying any conduit entry hardware. Verify the conduit kit module letter matches the HP rating of the installed G100 drive before proceeding. Use appropriately rated conduit fittings and conductors as specified by the drive manufacturer and applicable local codes.
