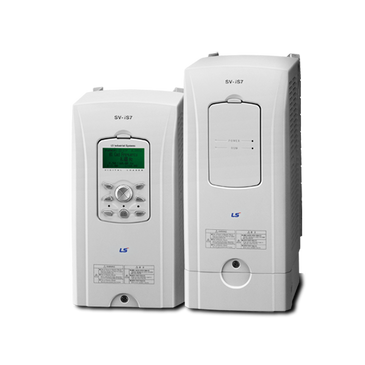

Ls Electric 6121000400 Vfd 5 Hp 3-phase 380-480V IP20 Is7

Product Description

The LS ELECTRIC 6121000400, factory model SV0037IS7-4NOFD, is a three-phase variable frequency drive (VFD) rated at 5 HP and 8 amps continuous output. It operates on a supply voltage range of 380 to 480 volts and is housed in an IP20-rated enclosure, making it suitable for protected indoor panel installations. Built on the iS7 platform, this drive provides precise motor speed and torque control for AC induction motors in industrial and commercial applications. Licensed electricians and industrial controls technicians are the primary installers for this class of equipment.

The SV0037IS7-4NOFD is intended for three-phase AC motor control in commercial HVAC systems, pump and fan applications, conveyor systems, and general industrial machinery. The IP20 housing is rated for installation inside control panels or enclosures where the drive is shielded from direct contact and debris. This drive does not include an integrated LCD keypad, so parameter programming is performed via an external keypad or communication interface compatible with the iS7 series.

Key Features

• 5 HP output rating at 8 amps continuous for three-phase motor control
• Accepts three-phase input voltage from 380 to 480 volts
• IP20 enclosure rating for panel-mount indoor installations
• iS7 series platform with advanced motor control capability
• No integrated LCD — supports external keypad or communication-based programming

Compatibility

Designed as an OEM-style replacement or new-installation VFD for three-phase AC induction motor applications requiring a 5 HP, 380-480V drive in the LS ELECTRIC iS7 series.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 430 and any applicable local codes. De-energize and lockout-tagout all power sources before wiring or servicing the drive. Mount the unit inside a suitable enclosure that meets or exceeds IP20 protection if the surrounding environment requires it. Do not apply input power until all wiring connections and grounding have been verified per the iS7 installation manual.
