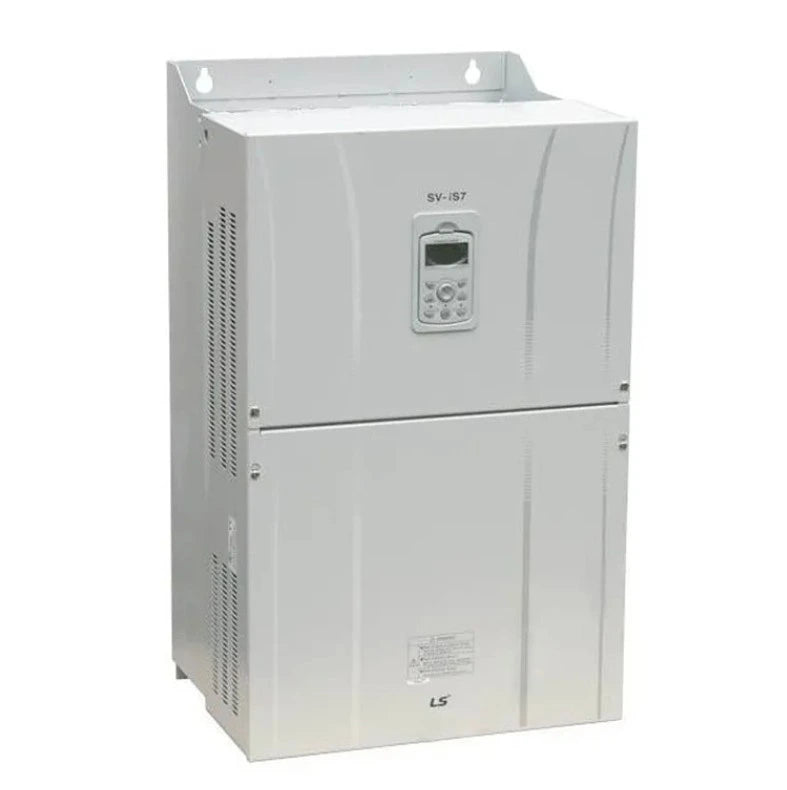

Ls Electric 6120005600 Vfd 100 Hp 3-phase 200-240V IP20

Product Description

The LS ELECTRIC 6120005600 is a variable frequency drive (VFD) rated at 100 horsepower and 288 amps, designed for three-phase AC motor control in demanding industrial and commercial applications. Operating on a 200-240 volt input, this unit carries an IP20 housing rating, making it suitable for installation inside protected electrical enclosures. The drive ships as the SV0750IS7-2SO variant within the LS ELECTRIC iS7 series and includes an integrated LCD operator panel for local parameter access and status monitoring. Licensed electricians and industrial controls technicians are the primary installers of this class of drive.

This VFD is suited for commercial and industrial motor control applications where precise variable-speed operation is required. Typical installations include pumps, fans, compressors, conveyors, and other three-phase motor-driven equipment in manufacturing, HVAC, and process control environments. The 200-240 volt three-phase input range accommodates standard industrial power distribution found in light industrial and commercial facilities. The iS7 platform is a full-featured drive series intended for applications that demand reliable speed regulation and motor protection at the 100 HP class.

Key Features

• 100 HP output rating with 288-amp drive capacity for high-demand motor loads
• Three-phase 200-240 volt AC input compatible with standard industrial power
• IP20 housing rating suitable for installation inside control panels and enclosures
• Integrated LCD operator panel for local parameter programming and drive monitoring
• Part of the LS ELECTRIC iS7 series, model SV0750IS7-2SO

Compatibility

Designed as an OEM-compatible drive within the LS ELECTRIC iS7 series (model SV0750IS7-2SO) for use with three-phase 200-240 volt AC induction motors in the 100 HP class.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lockout all input power before wiring or servicing the drive. The IP20 enclosure requires mounting inside a suitable control cabinet or panel that provides protection from contaminants, moisture, and physical contact. Consult the LS ELECTRIC iS7 series installation manual for wiring configuration, grounding requirements, and parameter setup before commissioning.
