Ls Electric 6041002600 Drives, G100 Series 5HP (7.5HP)

Product Description

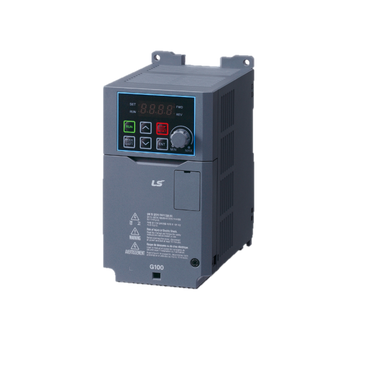

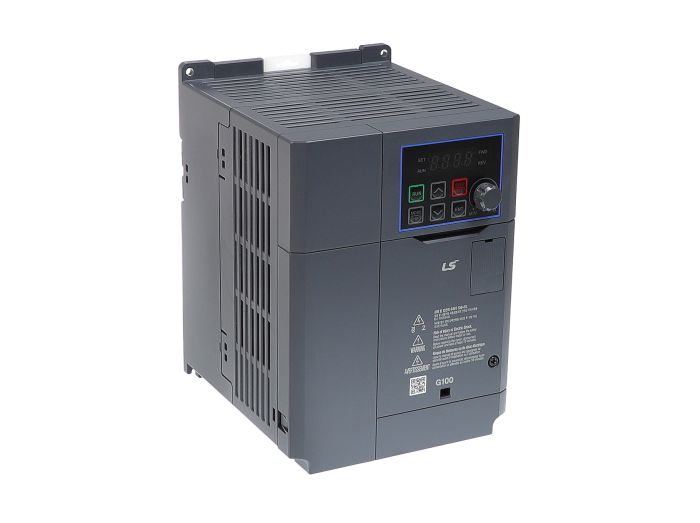

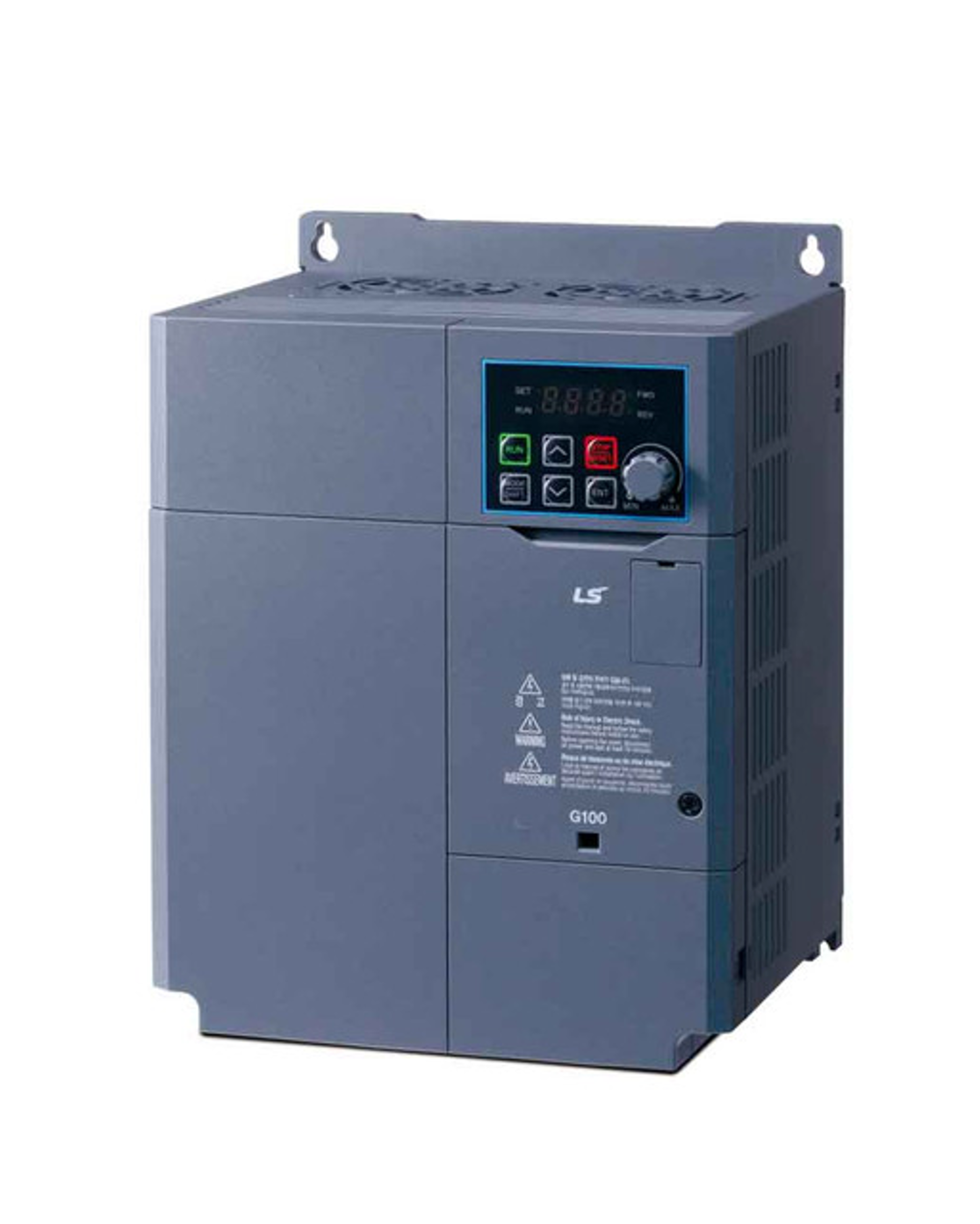

The LS Electric 6041002600 is a G100 Series drive designed for general purpose applications. This variable frequency drive supports 5 HP (9A) and operates with a three-phase 380-480V power supply. It features an IP20 rated enclosure, a built-in keypad, and an integrated EMI/RFI filter. It is dual rated for both constant and variable torque applications.

• Features sensorless and V/F performance
• Easy to install, use, and maintain
• Dual rated for both constant and variable torque

Product Highlights

The LS Electric G100 series VFD is suitable for various applications, offering user-friendly operation and robust performance. It includes an embedded C3 EMC filter and supports side-by-side installation.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 6041002600

Technical Specifications

• Manufacturer Part Number: 6041002600
• Manufacturer: LS Electric
• Product Series: G100
• Family Series: LS Electric Drives, G100 Series
• Phase: 3
• HP (Constant Torque Rating): 5 hp
• HP (Variable Torque Rating): 7.5 hp
• Amps (Constant Torque Rating): 9 A
• Amps (Variable Torque Rating): 10 A
• Brake: DJ Injection
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Built In
• NEMA Rating: NEMA 1
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Mounting: DIN Rail
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• AC Voltage: 380-480 VAC
• Housing: IP20
• LCD: YES
• Model: G100
• Type: VFD
• Voltage: 380-480V
• Alternate Part Number: 6041002600
• Horsepower: 5 hp
• Input Phase: 3 Phase
• Input Voltage: 3-Phase 380~480VAC (-15%~+10%)
• Outdoor Rated: No
• Output: 3 Phase Output
• Series: G100 Series
• Options: Integrated EMC Filter, Keypad, with HOA/POT/TB Option
• STO (Safe Torque Off): No
• Torque Load: Constant/Variable (CT/VT)
• Drives - Type of Drive: High Performance
• Output Frequency: 0~400Hz (IM sensorless: 0~120Hz)
• Output Voltage: 3-Phase 380~480VAC (-15%~+10%)
• Control Method: V/F, Slip Compensation, Sensorless Vector Frequency Setting
• Built-in Potentiometer: Yes
• DIN rail Mount (Below 4kW): Yes
• Remote Keypad: Copy parameter (Read/Write) using remote keypads
• Smart Copier: Copy parameter (Read/Write) and download firmware without supplying power to drive
• Multiple Fieldbus options: Dual Port EtherNet/IP, Profibus-DP, CANopen
• 2 type of connection of Modbus communication: RJ45 Port, I/O (S+, S-)
• Input Current: Heavy Duty: 9.8 A
• Normal Duty: 7.6kVA
• Motor Rating: Heavy Duty: 5.4 HP
• Output Capacity: Heavy Duty: 6.5kVA
