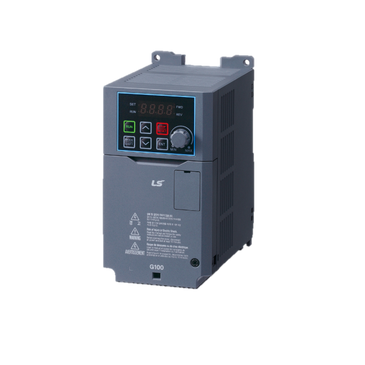

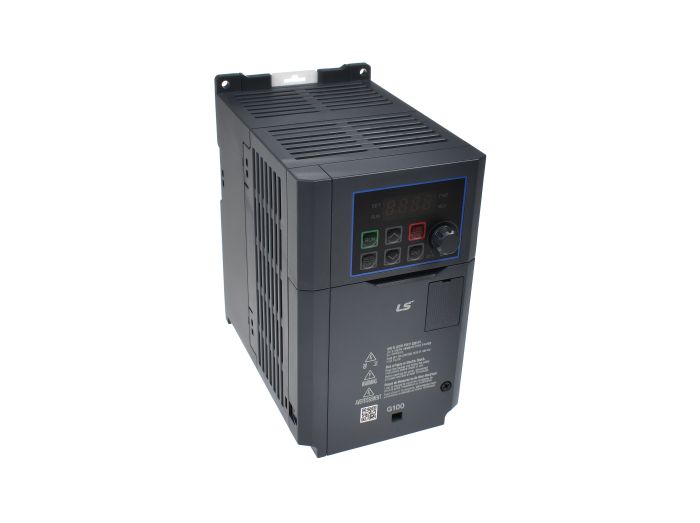

Ls Electric 6041002300 VFD, HD 2hp, 4A, 380-480 VAC, 3 Phase, IP20

Product Description

The LS Electric 6041002300 is a VFD, designed for heavy-duty applications, delivering 2hp and 4A at 380-480 VAC, three-phase power. This IP20-rated drive meets UL 61800-5-1 standards and features a keypad, potentiometer, and EMC filter. It supports motor outputs of 2 hp in heavy-duty and 3 hp in normal-duty for 3-phase, and 1 hp in heavy-duty (CT) and normal-duty (VT) for 1-phase.

• UL 61800-5-1 Design
• Din-rail mountable
• Built in Rotary Potentiometer

Product Highlights

This VFD features a built-in keypad, potentiometer, and EMC filter, ensuring reliable motor control in diverse industrial settings.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 6041002300

Technical Specifications

• Amps (Heavy Duty 150% for 60 seconds): 4 A
• Amps Out (Heavy Duty (CT) Single Phase): 2.1 A
• Built-in 7seg. Keypad: Yes
• Depth (inch): 6.3
• Display Type: 7-Segment Keypad
• Enclosure Type: IP20/UL Type 1
• Frame Size: 2
• HP (Heavy Duty 150% for 60 seconds): 2
• Height (Inch): 7 in
• Input Voltage: 380 to 480 VAC
• Model: G100
• Motor Output: 2 hp Heavy-Duty, 3 hp Normal Duty at 3 Phase, 1 hp Heavy-Duty (CT), 1 hp Normal Duty (VT) at 1 Phase
• Mounting Type: DIN-Rail
• Output Current: 4 A Heavy-Duty, 5.1 A Normal Duty at 3 Phase, 2.1 A Heavy-Duty (CT), 2.8 A Normal Duty (VT) at 1 Phase
• Output Voltage: 380 to 480 VAC
• Phase: 3 ph
• Remote Cable Capability: Yes
• Voltage: 380 - 480 VAC
• Width (Inch): 4 in
• Manufacturer Part Number: 6041002300
• Manufacturer: LS Electric
• Product Series: G100
• Family Series: LS Electric Drives, G100 Series
• HP (Constant Torque Rating): 2 hp
• HP (Variable Torque Rating): 3 hp
• Amps (Constant Torque Rating): 4 A
• Amps (Variable Torque Rating): 5.1 A
• Brake: DJ Injection
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Built In
• NEMA Rating: NEMA 1
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Mounting: DIN Rail
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• AC Voltage: 380-480 VAC
• Net Weight: 3.135 lbs
• Brand: LS Electric
• Amps: 4
• Category: Variable Frequency Drives
• Housing: IP20
• HP: 2
• LCD: YES
• Type: VFD
