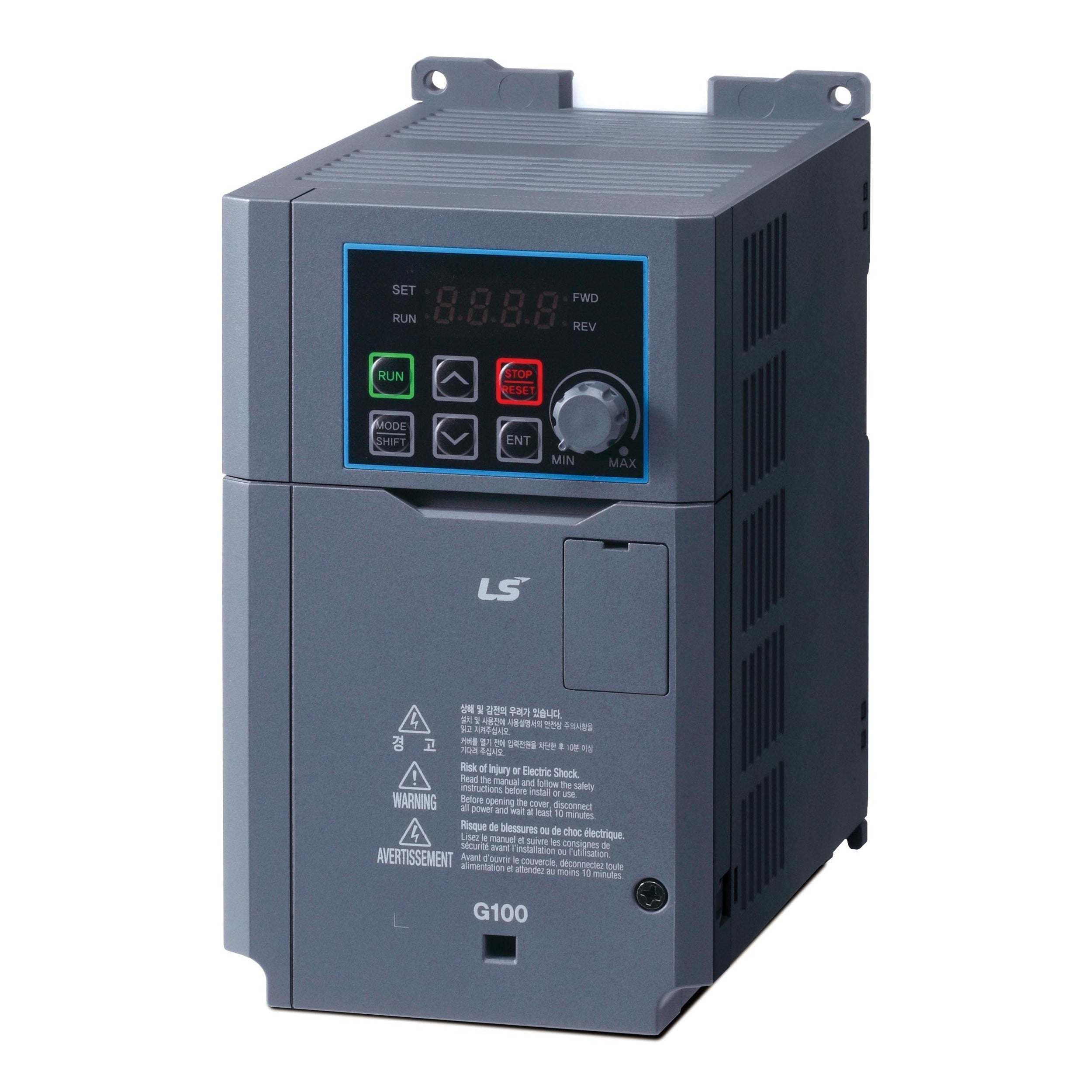

Ls Electric 6041002200 Ac Drive 1 Hp 460V 3 Phase Vfd

Product Description

The LS ELECTRIC 6041002200 is a variable frequency drive (VFD) rated for 1 HP at 460 volts, 3-phase input, designed for heavy-duty motor speed control applications in commercial and industrial settings. Part of the LS ELECTRIC G100 series, this drive delivers up to 2.5 amps output current in heavy-duty (CT) mode and 3.1 amps in normal-duty (VT) mode on 3-phase circuits. It ships with a built-in 7-segment keypad and an EMI/RFI filter integrated into the unit. The IP20/UL Type 1 enclosure rating makes it suitable for indoor panel installations. Licensed electricians and industrial controls technicians are the primary installers.

This drive is used in light commercial and industrial motor control applications where adjustable speed output is required from a 3-phase, 380 to 480 VAC power source. It supports both 3-phase and single-phase input configurations, with single-phase heavy-duty output rated at 1.4 amps and 0.5 HP. The G100 frame size 1 form factor and DIN-rail mounting make it practical for compact control panel builds. Remote cable control capability allows integration with external control systems without requiring panel-mounted operator interfaces.

Key Features

• 1 HP heavy-duty (CT) rating at 3-phase input, 380 to 480 VAC
• Built-in 7-segment keypad for local parameter programming and monitoring
• Integrated EMI/RFI filter reduces line noise without external add-on components
• IP20/UL Type 1 enclosure rated for indoor control panel use
• DIN-rail mounting for fast installation in standard enclosures
• Remote cable control capability for external PLC or control system integration

Compatibility

Designed as an OEM-style variable frequency drive for 3-phase AC induction motors rated up to 1 HP at 460 volts in heavy-duty applications, within the LS ELECTRIC G100 series product family.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC requirements for variable frequency drives and motor branch circuits. Disconnect and lock out all power to the panel before wiring input or output terminals. Verify that the motor nameplate voltage and current ratings are compatible with the drive output ratings before commissioning. Do not connect power-factor correction capacitors to the drive output terminals.
