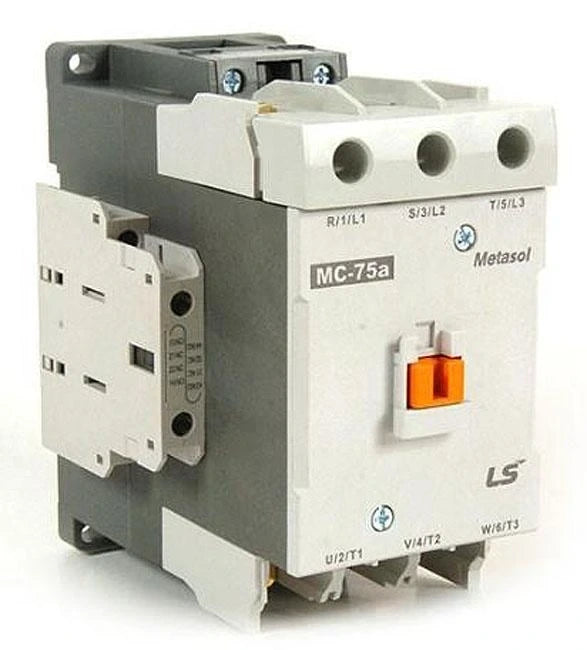

Ls Electric 1382013000 Iec Contactor 75A 120VAC 3-pole

Product Description

The LS ELECTRIC 1382013000 is a general-purpose IEC contactor from the Metasol MC-Series, rated for 75 amps at a 120VAC coil voltage. It is a 3-pole device designed for motor control and switching applications in industrial and commercial electrical systems. The contactor features screw terminals for straightforward field wiring and includes 2 built-in normally open (NO) auxiliary contacts. It carries an IP20 rating for protection against solid objects and is suited for installation on DIN rail without additional tools. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The 1382013000 is part of the LS ELECTRIC Metasol MC-Series, which spans 25 models across 9 frame sizes. Within the 100AF frame size, this series covers the MC-75a, MC-85a, and MC-100a contactor models, paired with the MT-95 overload relay. The 380-480VAC operational voltage range makes it well suited for three-phase motor control panels in commercial and light industrial environments. DIN rail mounting simplifies enclosure integration, and front- and side-mountable accessories are available for expanded functionality.

Key Features

• 75 amp rating suitable for motor control loads in the 100AF frame class
• 120VAC coil voltage for compatibility with standard control circuits
• 3-pole configuration for three-phase load switching
• 2 built-in NO auxiliary contacts included as standard
• DIN rail mountable without extra tools for fast panel installation
• IP20 rated enclosure protection
• Front and side mountable accessories available for expanded configurations

Compatibility

Designed for use within the LS ELECTRIC Metasol MC-Series 100AF frame, compatible with MC-75a, MC-85a, and MC-100a configurations and the MT-95 overload relay. Alternate part number MC75A-30-22-K7-L-E.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the control panel before handling or wiring the contactor. Verify coil voltage matches the control circuit before energizing. Ensure DIN rail or mounting surface is secure and that all screw terminals are tightened to the terminal manufacturer specification before closing the enclosure.
