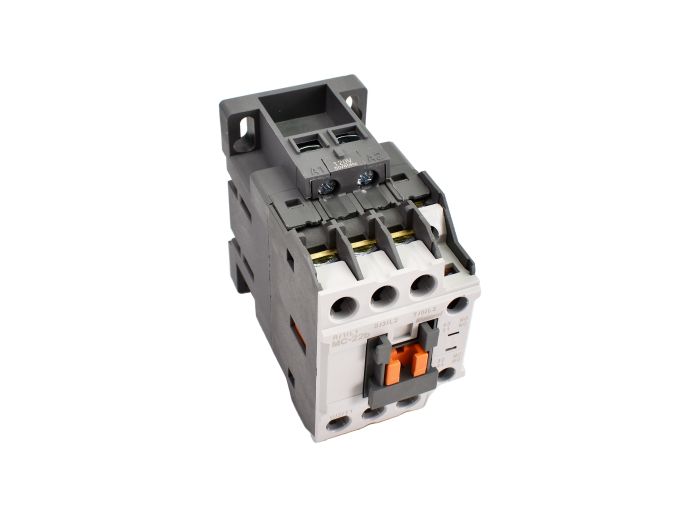

Ls Electric 1347000500 magnetic contactor 22 A

Product Description

The LS Electric 1347000500 magnetic contactor from the Metasol Series operates at 690 V and 22 A with a 50/60 Hz frequency. It features a 120 VAC coil, 15 kW power rating, and a 3NO contact configuration. Designed with auxiliary contacts, it supports DIN rail and screw mounting, has an IP20 rating, and operates between -5 to 55 deg C.

• DIN-rail connection without any special tools
• Direct combine a surge unit
• Mounting unit, adapter

Product Highlights

This LS Electric magnetic contactor is ideal for various industrial applications, providing reliable performance and easy installation.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 1347000500

Technical Specifications

• Amperage Rating: 22 A
• Coil Power Rating: 70 VA Inrush, 9 VA Holding
• Coil Voltage: 120 VAC
• Contact Configuration: 3NO
• Depth: 3.44 in
• Frame Size: 22AF
• Frequency Rating: 50/60 Hz
• IP Rating: IP20
• Mounting Type: DIN Rail, Screw
• Number of Poles: 3
• Power Rating: 15 kW
• Series: Metasol Series
• Temperature Rating: -5 to 55 deg C
• Terminal Type: Screw
• Voltage Rating: 690 V
• Width: 1.77 in
• Wire Size: 14 to 8 AWG
• Manufacturer Part Number: 1347000500
• Manufacturer: LS Electric
• Family Series: LS Electric Contactors
• Description: Magnetic Contactor 22A, 3 NO Power Poles, 1 NO 1NC Aux contact, 120VAC coil, Screw connection
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Type: Magnetic
• Auxiliary Contact: 1NO, 1NC
• Termination: Screw
• General Purpose (AC1): 22 A
• Approvals: UL
