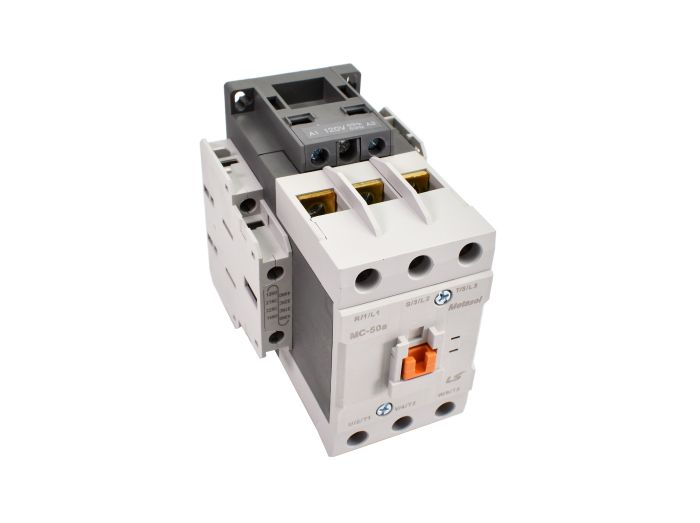

Ls Electric 1338012900 Contactor 3P 50A AC120V Coil

Product Description

The LS Electric 1338012900 is a magnetic contactor from the Metasol Series, designed for 1000 V applications with a 50 A rating and a 120 VAC coil. It operates at 50/60 Hz and is suitable for 30 kW power. This 3-pole contactor features a 3NO contact configuration and auxiliary contacts.

• Features a DIN-rail connection for easy installation.
• Includes a module-type screw terminal for secure wiring.
• Designed with built-in auxiliary contacts (2NO).

Product Highlights

This LS Electric contactor offers reliable performance with a robust design, ideal for various industrial applications requiring efficient power control.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 1338012900

Technical Specifications

• Amperage Rating: 50 A
• Coil Power Rating: 110 VA Inrush, 13 VA Holding
• Coil Voltage: 120 VAC
• Contact Configuration: 3NO
• Depth: 4.69 in
• Frame Size: 65AF
• Frequency Rating: 50/60 Hz
• Height: 4.17 in
• IP Rating: IP20
• Mounting Type: DIN Rail, Screw
• Number of Poles: 3
• Power Rating: 30 kW
• Series: Metasol Series
• Temperature Rating: -5 to 55 deg C
• Terminal Type: Screw
• Voltage Rating: 1000 V
• Width: 2.17 in
• Wire Size: 10 to 4 AWG
• Manufacturer Part Number: 1338012900
• Manufacturer: LS Electric
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Type: Magnetic
• General Purpose (AC1): 50 A
• Approvals: UL
• Amps: 50 Amps
• Rated Current (Amps): 50 Amps
• Product Category: Contactors
• Product Type: 3-Pole Contactors
• Pole Configuration: 3 Poles
