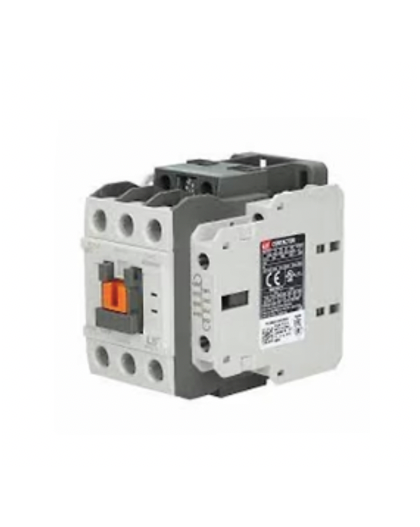

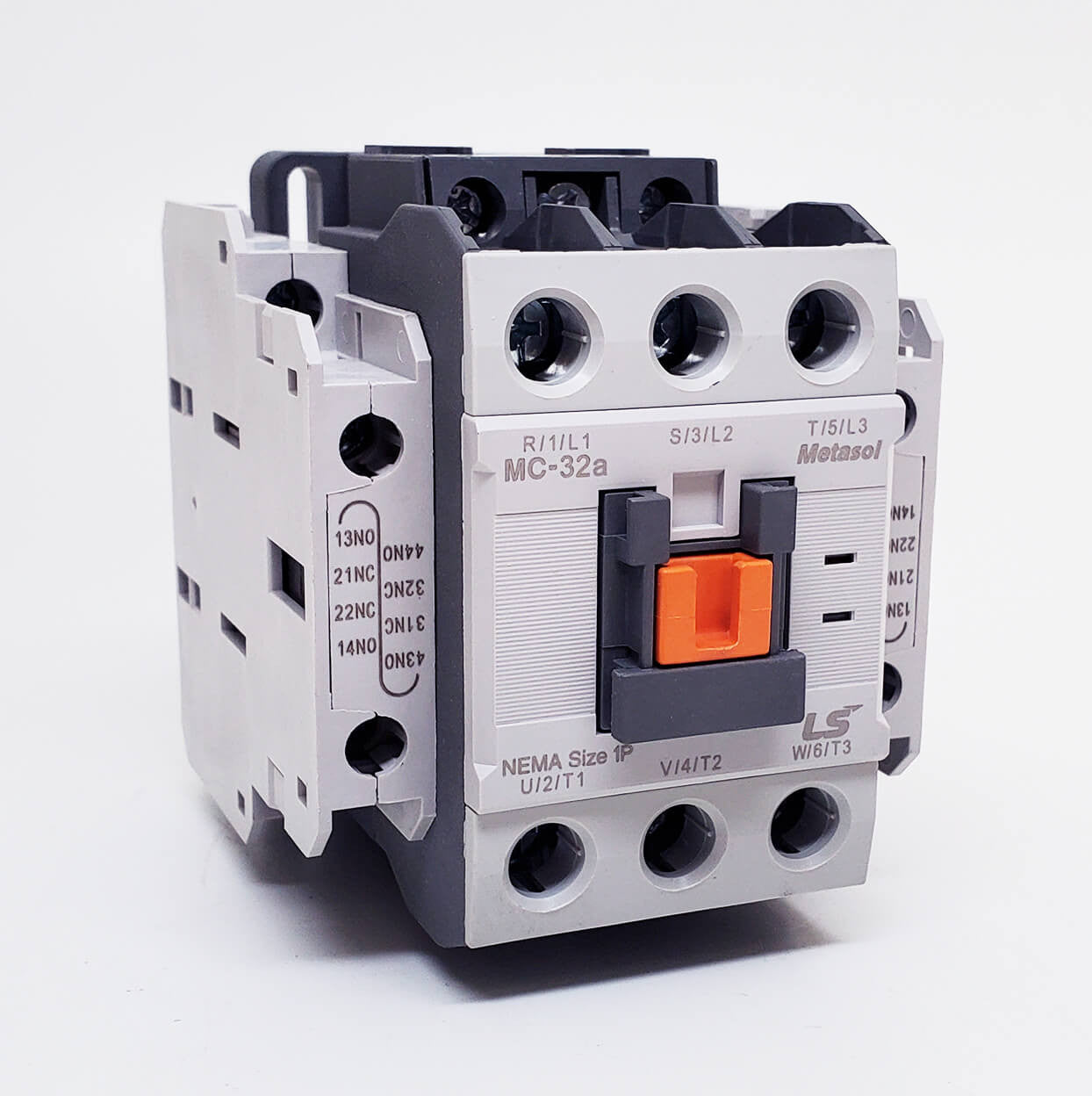

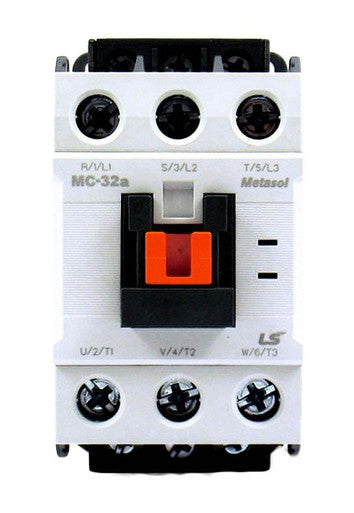

Ls Electric 1336012900 IEC contactor 32A (3 pole) MC32A-30-22-K7-S-E

Product Description

LS Electric 1336012900 is an MC Series Metasol IEC contactor rated 32 A with a 120 V coil for three-phase motor and general-purpose switching. The 3-pole device features an IP20 finger-proof enclosure, screw terminals, and supports DIN rail or screw mounting. It provides two built-in normally open contacts with a 2NO/2NC auxiliary option and a direct-mountable overload relay interface. Rated operational voltage is 380–480 VAC and it operates at 50/60 Hz.

• Rated current 32 A; 3-pole three-phase contactor with 120 V coil
• IP20 finger-proof enclosure, screw terminals, DIN rail or screw mountable
• Two built-in normally open contacts; 2NO/2NC auxiliary configuration possible; direct-mountable overload relay option

Product Highlights

MC Series IEC contactor — 32 A, 120 V coil, 3-pole, IP20 with screw terminals

Product Information

Standard Information

• Brand: LS ELECTRIC
• Manufacturer Part Number: 1336012900
• Country of Origin: United States

Technical Specifications

• Brand: LS Electric
• Manufacturer Part Number: 1336012900
• Alternate Part Number: MC32A-30-22-K7-S-E
• Product Series: MC Series
• Product Type: IEC contactor
• Poles: 3
• Phases: 3
• Rated Current: 32 A
• Resistive Current Rating: 50 A
• Coil Voltage: 120 V
• Rated Operational Voltage: 380-480 VAC
• Auxiliary Contacts: 2 NO; 2NO/2NC configuration possible
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or screw mountable
• IP Rating: IP20
• Frequency: 50/60 Hz
• Horsepower Rating: 20 HP at 480 V
• Dimensions (AC): 69 x 83 x 93 mm
• Dimensions (DC): 69 x 83 x 120 mm
• Weight: 1.21 lb
• UPC: 8809512799004
• Country of Origin: United States
• Features: Finger-proof design; direct-mountable overload relay option; screw terminals; front/side mountable accessories available
