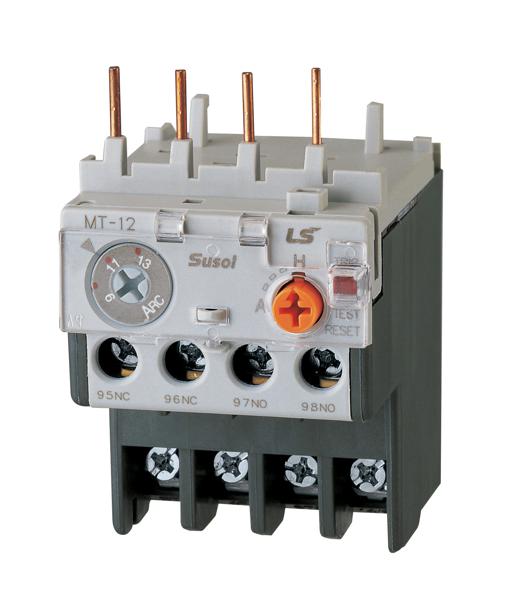

Ls Electric 1324000100 Overload Relay 1.3 A

Product Description

The LS Electric 1324000100 is a bimetal-style overload relay designed to protect AC circuits and motors against overloads, phase failure, long starting times, and prolonged stalling. It has a 690 V input, 1.3 A amperage rating, and operates at 50/60 Hz. The relay features a 1NO-1NC contact configuration and a Class 20 trip class.

• Compact design with easy connection.
• Offers high performance and long electrical life.
• Features a sealed structure for greater environmental immunity and improved safety.

Product Highlights

This LS Electric overload relay provides reliable motor protection with easy installation and enhanced safety features.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 1324000100

Technical Specifications

• Amperage Rating: 1.3 A
• Conductor Size: 24 to 10 AWG
• Contact Configuration: 1NO-1NC
• Contact Rating: 0.1/0.22/0.3/0.375/0.35/0.47/0.75/1.5 A
• Depth: 2.62 in
• Frequency Rating: 50/60 Hz
• Height: 3.01 in
• IP Rating: IP20
• Input Voltage: 690 V
• Insulation Voltage: 690 V
• Mounting Type: DIN Rail, Panel
• Number of Poles: 3
• Reset Type: Automatic, Manual
• Series: Metasol Series
• Setting: 1 to 1.6 A
• Temperature Rating: -25 to 60 deg C
• Terminal Type: Screw
• Trip Class: Class 20
• Width: 1.85 in
• Withstand Voltage: 6 kV
• Type: Overload Relay
• Amps: 1.3
• Current Range Amps: 1-1.6
• Termination: SCREW
