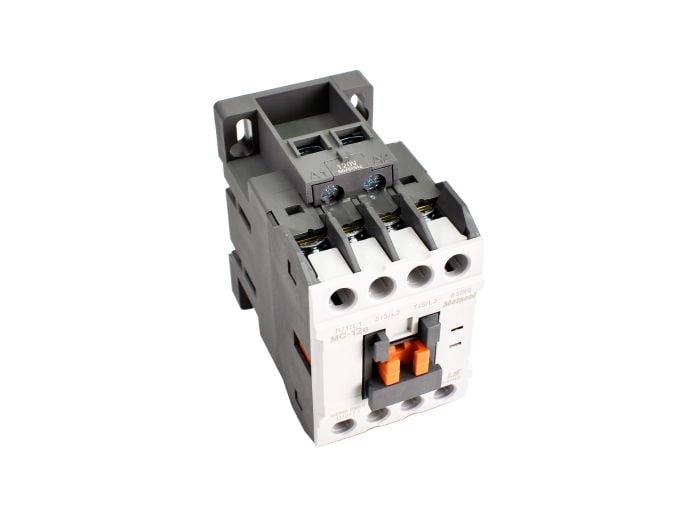

Ls Electric 1317000500 MC12A-30-10-K7-S-E Magnetic Contactor 12A

Product Description

The LS Electric 1317000500 MC12A-30-10-K7-S-E is a 12A magnetic contactor featuring 3 NO power poles, 1 NO auxiliary contact, and a 120VAC coil. It utilizes a screw connection for termination and is suitable for AC non-reversing IEC applications. This contactor is UL approved.

• Magnetic Contactor
• 12A current rating
• Screw connection

Product Highlights

The LS Electric magnetic contactor is designed for reliable switching in various electrical applications. It features a compact design and easy screw termination.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 1317000500
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 1317000500
• Manufacturer: LS Electric
• Family Series: LS Electric Contactors
• Description: Magnetic Contactor 12A, 3 NO Power Poles, 1 NO Aux contact, 120VAC coil, Screw connection
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 12 A
• Approvals: UL
