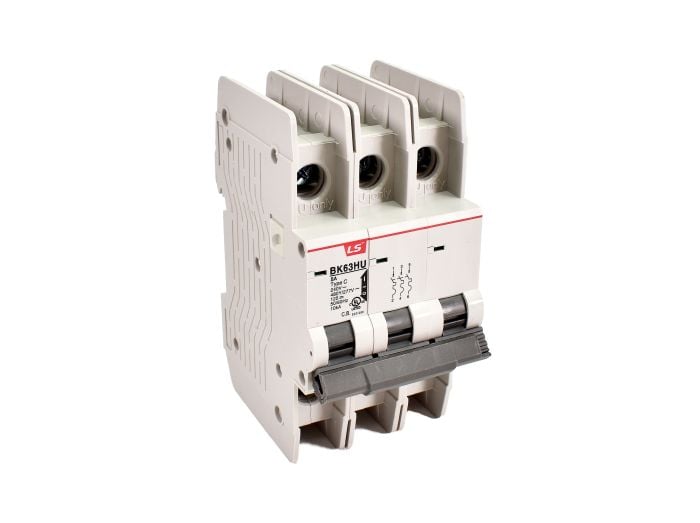

Ls Electric 0628046763 Circuit Breaker BK63HU 3P C5A 5A

Product Description

The LS Electric 0628046763 circuit breaker, also known as BK63HU 3P C5A, is a miniature circuit breaker UL489, designed with 3 poles and a C curve. It features a current rating of 5A and a 10kA breaking capacity at 480Y/277VAC. This thermal magnetic circuit breaker is suitable for various applications.

• 3 Poles
• C Curve
• Rated at 480Y/277VAC

Product Highlights

Miniature circuit breaker with UL489 standard, 5A current rating, and 10kA breaking capacity.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 0628046763

Technical Specifications

• Manufacturer Part Number: BK63HU-3P-C5A-10kA-480Y/277VAC-UL489
• Manufacturer: LS Electric
• Product Series: MCB
• Family Series: LS Electric Circuit Breakers, MCB Series
• Description: Miniature Circuit Breaker UL489, 3Poles, C Curve, 5A, 10kA, 480Y/277VAC
• Poles: 3
• Current Rating: 5 A
• Max Voltage: 480/277 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: UL
• Comments: BK63HU 3P C5A 10kA 480Y/277VAC UL489
• Brand: LS Electric Co.
• Catalog #: 0628046763
