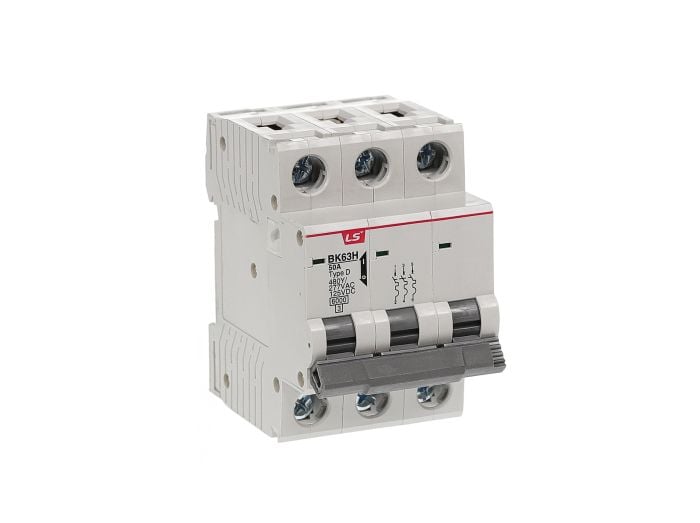

Ls Electric 0628034363 Miniature Circuit Breaker 50 Amp

Product Description

The LS Electric 0628034363 is a miniature circuit breaker designed to protect final loads. Ideal for industrial, commercial, and residential circuits, it safeguards against short circuits and overloads, providing isolation and protection against indirect contact. It has a 50/60 Hz frequency rating and a 6 kA interrupt rating.

• Rated Frequency: 50/60 Hz
• Reference Temperature: 40°C
• Trip Type: Thermal Magnetic

Product Highlights

Miniature circuit breaker protects against short circuit and overload currents, isolation, and protection against indirect contact.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 0628034363

Technical Specifications

• Amp Rating: 50 Amp
• Circuit Breaker Type: UL1077
• Poles: 3 Pole
• Series: BK Series
• Short Circuit Capacity: 6kA
• Trip Curve: D Curve
• Voltage: 480Y/277VAC
• Rated Frequency: 50/60 Hz
• Reference Temperature: 40 C
• Trip Type: Thermal Magnetic
• Type of Terminals: Terminal with stirrup(Indirect pressure)
• Tightening Torque: 2Nm (17.5 lbf-in)
• Installation: Mounting on 35mm din rail
• Manufacturer Part Number: BK63H-3P-D50A-6kA-480Y/277VAC-UL1077
• Manufacturer: LS Electric
• Product Series: MCB
• Family Series: LS Electric Circuit Breakers, MCB Series
• Current Rating: 50 A
• Max Voltage: 480/277 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: UL
• Amperage Rating: 50 A
• Enclosure Type: IP20
• Frame Type: BK63H
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 6 kA
• Mounting Type: DIN Rail
• Number of Poles: 3
• Temperature Rating: -5 to 40 deg C
• Voltage Rating: 480Y/277 VAC
• Wire Size: 14 to 4 AWG
• Additional Information: 2.68 in D, 2 N-m Torque, D Curve
• Height: 3.19 in
• Width: 2.13 in
