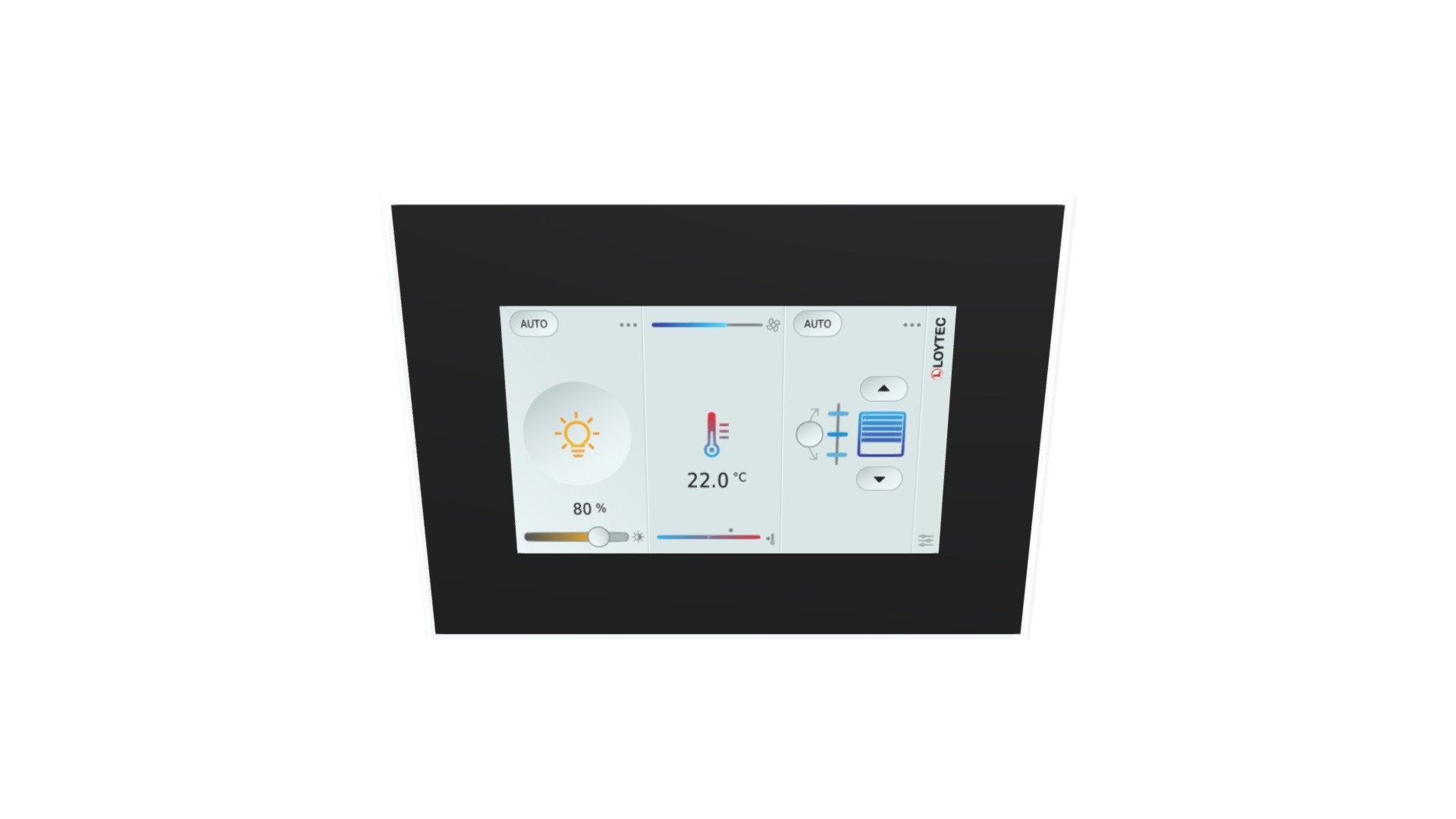

Loytec LVIS7-32G2 Bacnet, Cea-709, and Modbus Touch Panel

Product Description

The LOYTEC LVIS7-32G2 is a BACnet, CEA-709, and Modbus touch panel suited for building automation. The L-VIS touch panels visualize building systems and can be used as room operator panels. The fully customizable user screens can show dynamic pages that are easy to navigate. The shallow installation depth allows mounting in almost any location.

• High resolution IPS touch display with dimmable backlight
• Frameless glass front and capacitive touch
• Flush-mounting in combination with the mounting frame

Product Highlights

The LVIS7-32G2 supports connectivity to BACnet networks and LonMark systems. It provides communication to Modbus either as Master or Slave. It also features alarming, scheduling, and trending (AST) and Node.js support for easy IoT integration.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LVIS7-32G2

Technical Specifications

• Display: 7” Touch Display, 1024 x 600, 16.7 million colors
• Touch: Frameless glass front and capacitive touch
• Protocols: BACnet, LonMark, and Modbus
• BACnet: BACnet/IP, BACnet/SC or BACnet MS/TP
• LonMark: IP-852 (Ethernet/ IP) or TP/ FT-10 channels
• Ethernet Ports: Two Ethernet ports
• AST™ Functionality: Alarming, Scheduling, and Trending
• IoT: Node.js support
• Power Supply: 24 VDC
• Storage Temperature Range: -40 to 158 °F (-40 to 70 °C)
• Application: BAS
• Display Resolution: 7”: IPS, 1024 x 600,16.7 million colors, 500 cd/m²; 12”: IPS, 1024 x 768, 16.7 million colors, 700 cd/m²; 15”: IPS, 1024 x 768, 16.7 million colors, 350 cd/m²
• Remote Network Interface: 1 RNI with 2 MNI devices
• Real Time Clock: Powered by rechargeable capacitor, 10-day power reserve
• Operating Conditions: 50 °F to 104 °F, 10 °C to 40 °C, 10-90% RH, noncondensing
• Storage Conditions: -4 °F to 158 °F, -20 °C to +70 °C
• Degree of Protection: Front: IP54 / back: IP10
• Tools: L‑PAD/L-VIS/L-WEB Configurator, L-STUDIO
• Programming: Node.js, Node-RED
