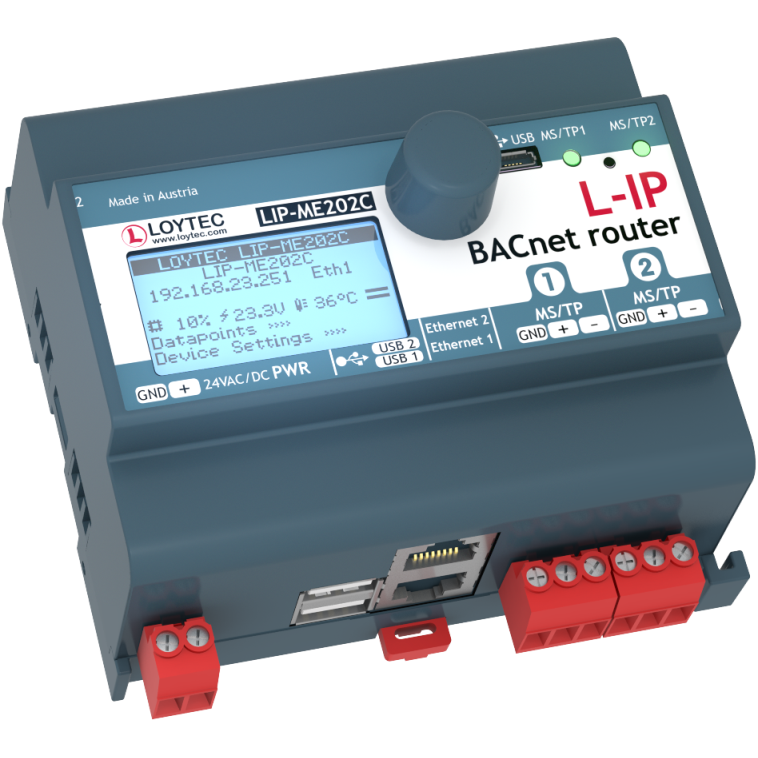

Loytec LIP-ME202C Bacnet IP to MSTP Router, 2x MS/TP Inter

Product Description

The LOYTEC LIP-ME202C is a BACnet IP to MSTP Router with 2x MS/TP Interface. It connects BACnet MS/TP channels to a BACnet/IP network and is compliant with ASHRAE 135-2012 and ISO 16484-5:2012 standards. Configuration is simple, and is accomplished through a built-in web server or serial port.

• Routes packets between BACnet MS/TP and BACnet/IP, BACnet/SC
• Configuration via built-in Web server or serial port
• Dual switched or separated Ethernet ports

Product Highlights

This router supports BBMD, foreign device, and slave proxy functionalities. It features dual Ethernet ports, a built-in web server, and MS/TP diagnostic capabilities.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIP-ME202C

Technical Specifications

• Protocol: BACnet
• Device Type: Router
• Power Supply: 24 VAC,24 VDC
• Communication Input: BACnet MS/TP
• Communication Out: BACnet IP
• DIN Rail Mount: Yes
• Supply Voltage: 12 to 35 VDC @ 125 mA, 12 to 24 VAC @ 3 VA
• Operating Temperature: 0 to 122F (0 to 50C)
• Operating Humidity: 10-90% RH @ 122F (50C) non-condensing
• Mounting: DIN rail
• Approvals: CE, FCC
