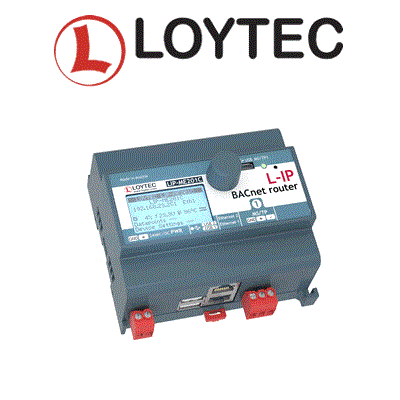

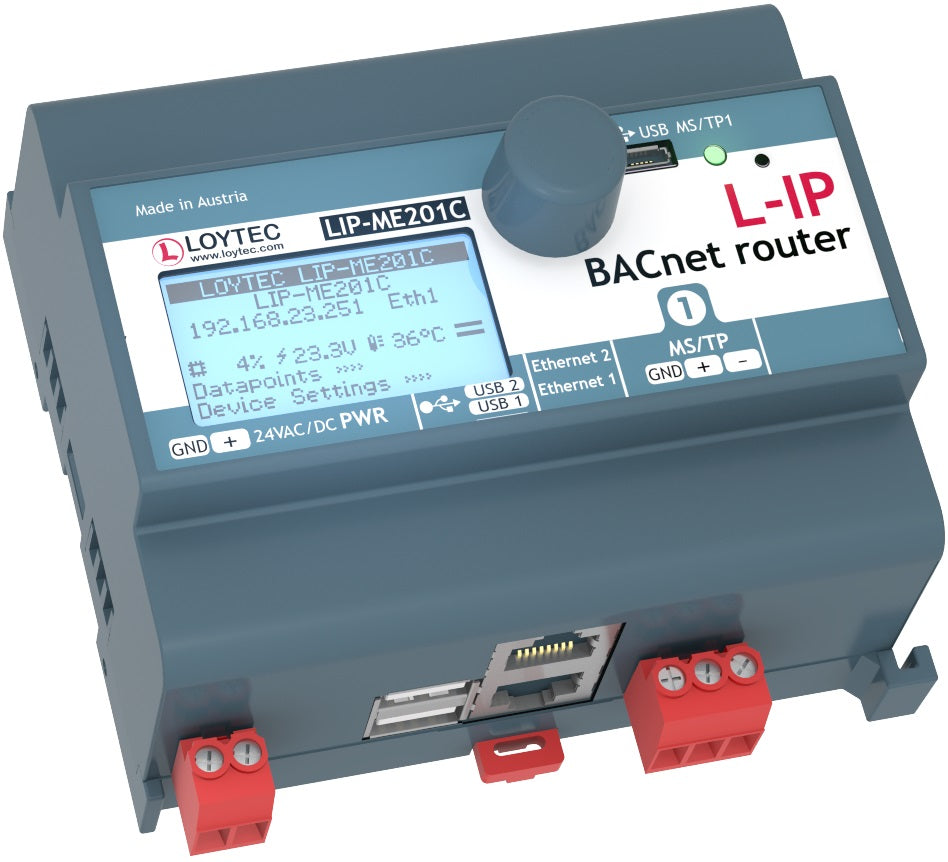

Loytec LIP-ME201C Single MS/TP Port BACnet IP Router

Product Description

The LOYTEC LIP-ME201C is a Single MS/TP Port BACnet IP Router that connects BACnet MS/TP channels to a BACnet/IP network. Compliant with ASHRAE 135-2012 and ISO 16484-5:2012 standards, it can be configured as a BBMD and offers Foreign Device support and BACnet/SC. The router also functions as a BACnet Time Master and MS/TP Slave Proxy.

• Routes packets between BACnet MS/TP and BACnet/IP, BACnet/SC
• Compliant with ANSI/ASHRAE 135-2012 and ISO 16484-5:2012 standard
• Configuration via built-in web server

Product Highlights

This BACnet router features dual Ethernet ports, a built-in web server for configuration, and supports VPN for BACnet/IP networks.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIP-ME201C

Technical Specifications

• Protocol: BACnet
• Device Type: Router
• Power Supply: 24 VAC,24 VDC
• Communication Input: BACnet MS/TP
• Communication Out: BACnet IP
• DIN Rail Mount: Yes
• Supply Voltage: 12 to 35 VDC @ 125 mA, 12 to 24 VAC 3 VA
• Operating Temperature: 0 to 122F (0 to 50C)
• Operating Humidity: 10-90% RH @ 122F (50C) non-condensing
• Mounting: DIN rail
• Approvals: CE, FCC
