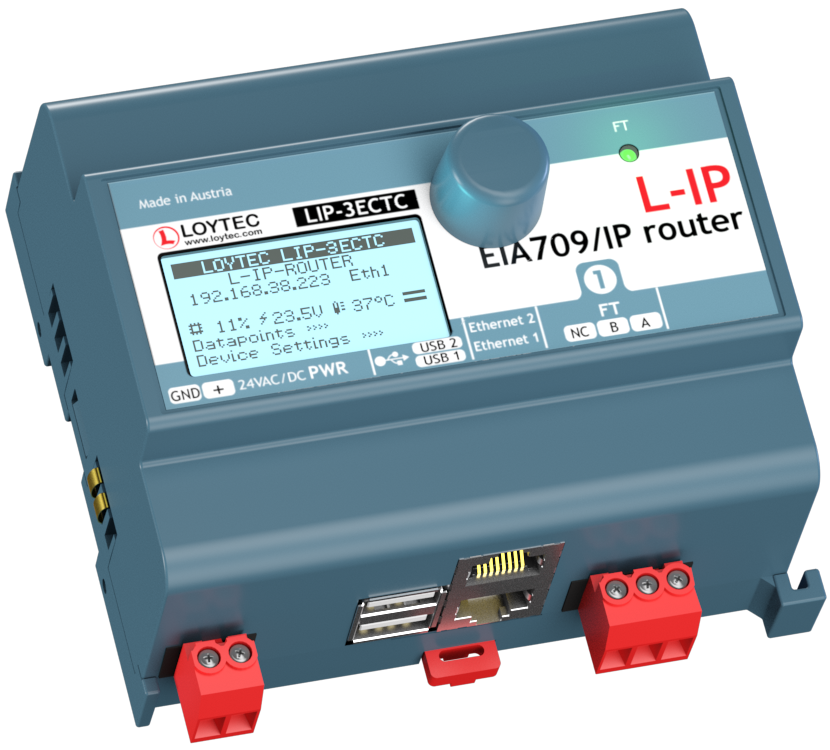

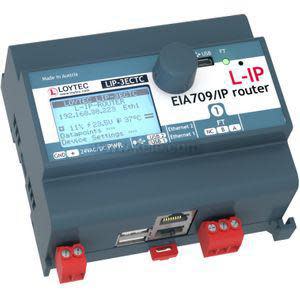

Loytec LIP-3ECTC cea-709/IP-852 Router, 1 x TP/FT-10, 2 x Ethernet Port (IP-852)

Product Description

The LOYTEC LIP-3ECTC is a CEA-709/IP-852 router with 1 TP/FT-10 channel and 2 Ethernet ports (IP-852). It routes CEA-709 packets through an IP-based network, such as a LAN, Intranet, or the Internet. It supports both Smart Switch and Configured Router modes. The L-IP Series of routers easily connect LON or BACnet networks to IP networks.

• Routes CEA-709 packets between TP/FT-10 and Ethernet/IP (IP-852) channels
• Configuration via built-in Web server or serial port
• Dual switched or separated Ethernet ports

Product Highlights

The LIP-3ECTC provides network diagnostic and analysis capabilities, allowing transparent access to twisted pair channels via Ethernet/IP.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIP-3ECTC

Technical Specifications

• Power Supply: 24 VAC,24 VDC
• Communication Input: LON
• Communication Out: Ethernet
• DIN Rail Mount: Yes
• Supply Voltage: 12 to 35 VDC @ 125 mA, 12 to 24 VAC 3 VA
• Communication: Type CEA-709, IP (10/100Base-T + TP/FT-10)
• Operating Temperature: 0 to 122F (0 to 50C)
• Operating Humidity: 10-90% RH @ 122F (50C) non-condensing
• Mounting: DIN rail
• Approvals: CE, FCC
• Device Type: Router
• Protocol: Lonworks
