Loytec LIP-33ECTC EIA709/IP Controller, 2x FT10, 2x Ethern

Product Description

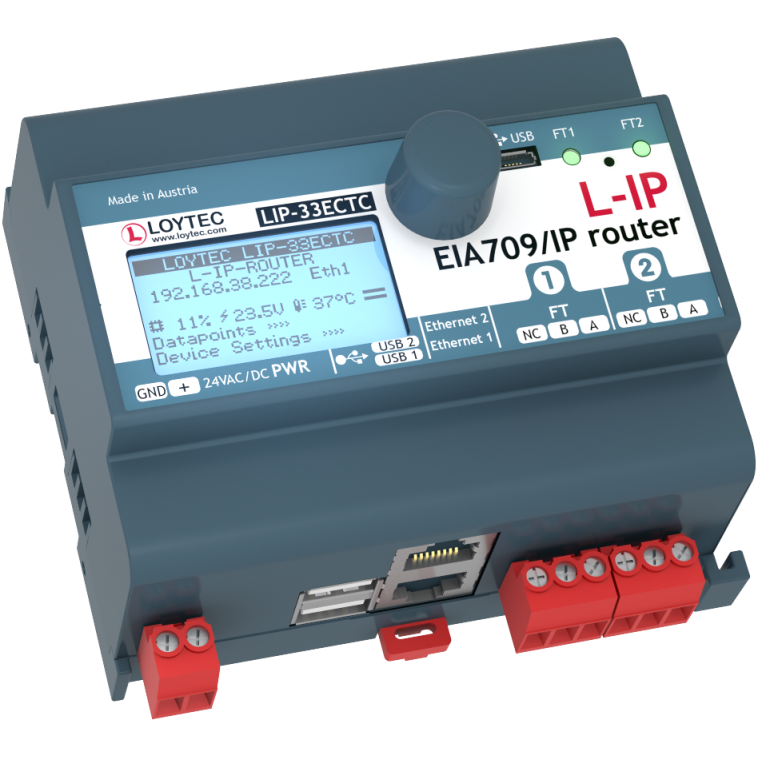

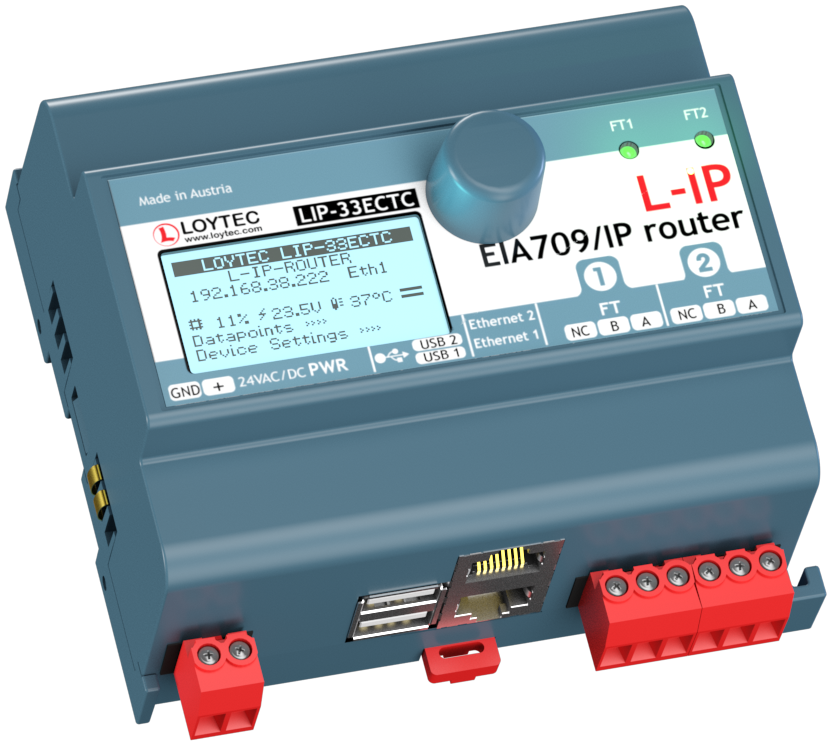

The LOYTEC LIP-33ECTC is an EIA709/IP controller with 2x FT10 and 2x Ethernet ports. It functions as an IP router, supporting EIA-852 protocol. The device allows configuration via a built-in Web server or serial port and features status LEDs for activity monitoring. It is DIN-rail mountable.

• BACnet and LON models
• Configuration via built-in Web server or serial port
• Status and activity LED

Product Highlights

EIA709/IP controller with 2x FT10 and 2x Ethernet ports, DIN-rail mountable.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIP-33ECTC
• Country of Origin: Austria

Technical Specifications

• Protocol: Lonworks
• Device Type: Router
• Power Supply: 24 VAC,24 VDC
• Communication Input: LON
• Communication Out: Ethernet
• DIN Rail Mount: Yes
• Supply Voltage: 12 to 35 VDC @ 125 mA, 12 to 24 VAC @ 3 VA
• Communication: Type CEA-709, IP (10/100Base-T + TP/FT-10)
• Operating Temperature: 0 to 122 F (0 to 50C)
• Operating Humidity: 10-90% RH @ 122 F (50 C) non-condensing
• Mounting: DIN rail
• Approvals: CE, FCC
• Brand: Loytec
• Model: LOYTEC LIP-33ECTC Lon
• MPN: LIP-33ECTC
• Country of Origin: South Korea
