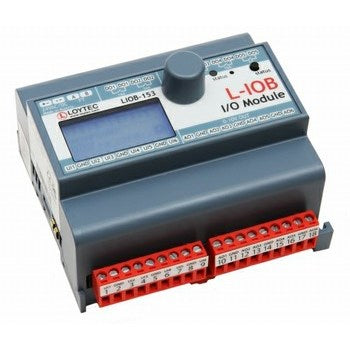

Loytec LIOB-153 LON I/O Module 6UI 6AO 5DO

Product Description

The LOYTEC LIOB-153 is a LON I/O Module with 6 universal inputs, 6 analog outputs, and 5 digital outputs. It connects to L-INX Automation Servers or L-ROC Room Controllers via a twisted-pair cable, adhering to the LonMark TP/FT-10 channel specification. The module features a 128x64 display with backlight and a jog dial for local operation.

• Physical Inputs and Outputs
• Stackable I/O Modules supporting LIOB-Connect
• Configuration through L-INX configuration tool

Product Highlights

The LIOB-153 module is LonMark certified and provides removable, vibration-proofed terminal screws for wiring.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIOB-153
• Country of Origin: Austria

Technical Specifications

• Communication Protocol: LON
• Compatibility: Lonworks
• Relay Outputs: 5
• Analog Outputs: 6
• Universal Inputs: 6
• Power Supply: 24 VAC,24 VDC
• Type: Module
• Number of Ports: 17
• Supply Voltage: 24 VAC 10 % # 2.7 VA, 24 VDC @ 113 mA
• Channels: LIOB-1xx: 1x LIOB-FT or LonMark TP/FT-10 LIOB-4xx: 2x Ethernet (100Base-T) LIOB-IP or LonMark IP-852 LIOB-5xx: 2x Ethernet (100Base-T) LIOB-IP or BACnet/IP, OPC XML-DA
• Communication: LIOB-1xx: Type LIOB-FT, CEA-709 (LON) LIOB-4xx: Type LIOB-IP, LonMark IP-852 LIOB-5xx: Type LIOB-BIP, BACnet/IP, LIOB-IP, OPC XML-DA
• Operating Temperature: 32 to 122 F (0 to 50 C)
• Operating Humidity: 10-90% RH @ 122 F (50 C) non-condensing
• Media channel: Free Topology - TP/FT10
• Certified: yes
• Integrated HMI: Yes
• Integrated Press Sensor: No
