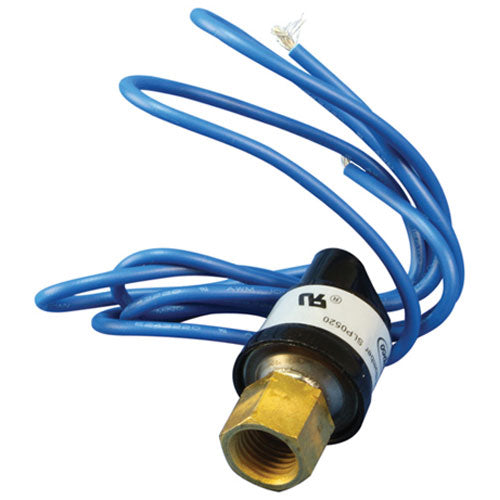

LOW PRESSURE SWITCH for Mavrik 421813

Product Description

This item for Mavrik 421813 is a low pressure switch designed for efficient operation in various HVAC systems.

• Switch opens at low pressure of five PSI and closes at twenty PSI.
• Features automatic reset for high, low, and condenser fan cycling pressure.
• Compact design for direct mounting applications.

Product Highlights

This switch maintains set point repeatability and stability, ensuring reliable pressure management in HVAC systems.

Product Information

Standard Information

• Weight: 0.09 lbs
• Dimensions: 1.25 inches x 1 inch x 1.25 inches

Technical Specifications

• Pressure Range: 0 to 650 PSI
• Burst Pressure: 5000 PSI
• Life @ Rated Load: 100,000 cycles
• Rated Voltage: 50/60 Hz, 24/120/240 V (6 RLA, 36 LRA)
• Temperature Range: Ambient twenty degrees Fahrenheit to one hundred seventy-six degrees Fahrenheit; Fluid sixty degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Connection Type: 1/4 female SAE
• Sensor Type: Snap acting stainless steel hermetically sealed
