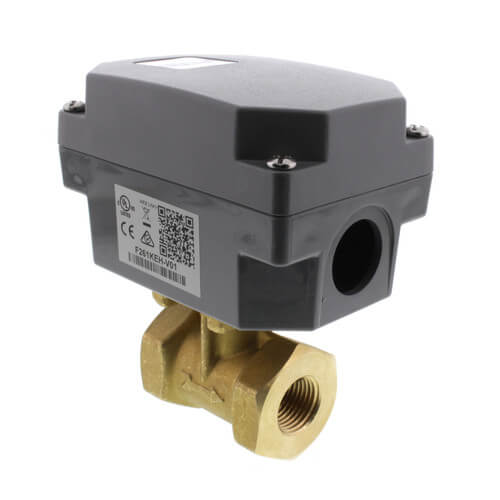

JOHNSON CONTROLS F261KEH-V01C Flow Switch Low Flow 1/2 Inch NPT Female

Product Description

The Johnson Controls F261KEH-V01C Flow Switch is engineered for monitoring fluid flow in various non-hazardous applications including water systems, ethylene glycol, and lubricating oils. It efficiently handles fluid flow rates suitable for pipe sizes over one inch.

• Enclosure type NEMA 3R suitable for both indoor and outdoor environments.
• Equipped with Viton diaphragms for compatibility with chlorinated and treated fluids.
• Designed for low-fluid flow operation, activating with flows less than 1.0 GPM for water and 9.0 GPM for steam.

Product Highlights

Constructed to withstand a maximum fluid pressure of 290 psi, this flow switch adapplies to a broad range of pressure conditions. Its versatility and durable construction make it ideal for numerous commercial and industrial applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: F261KEH-V01C

Technical Specifications

• Paddle Sizes: Various, for different flow rates
• Operating Pressure: Up to 290 psi
• Enclosure Type: NEMA 3R
• Connection Type: 1/2 FNPT
• Switch Type: SPDT
• Temperature Range: -20 to 250 Degrees Fahrenheit
