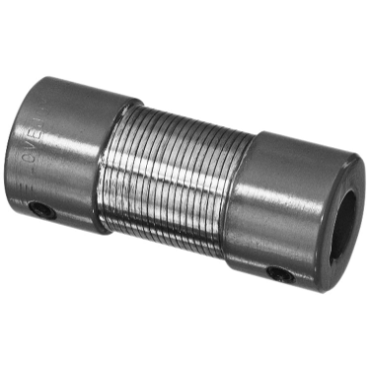

Lovejoy U62R5/8X5/8 3/16KW | Lovejoy Uniflex Coupling

Brand: LOVEJOY
SKU: U62R5/8X5/83/16KW
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$673.66
$673.66
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Lovejoy U62R5/8X5/8 3/16KW Uniflex Coupling is designed for various industrial applications. This reliable coupling is suitable for textile equipment, conveyors, machine tools, centrifugal pumps, blowers, wind tunnels, and steering mechanisms.

  • Durable one-piece construction
  • Flexibility for high degrees of shaft misalignment
  • Easy installation with no lubrication required

Product Highlights

This coupling features a compact design, unaffected by oil, grease, dirt, and most industrial chemicals, ensuring longevity and performance.

Product Information

Standard Information

  • Brand: Lovejoy
  • MPN: U62R5/8X5/8 3/16KW

Technical Specifications

  • Color: Gray/Metallic
  • Overall Length: 2.72 inches
  • Wind-Up Angle @ Maximum Torque: 0.85 degrees
  • Set Screw: Yes
  • Bore Dia. Tolerance Plus: 0.001 inches
  • Coupling Type: Shaft-to-Shaft
  • Bore Type: Finished Bore
  • RPM [Max]: 20000 rpm
  • Outside Diameter: 1.42 inches
  • Set Screw Location: Over the Key
  • Bore Dia. [Max]: 5/8 inches
  • HP @ RPM: 0.2 hp @ 100 rpm
  • Bore Dia. Tolerance Minus: 0 inches
  • Keyway Size: 3/16 x 3/32 inches
  • Torque: 126 in lb
  • Coupling Size: U62R
  • Material: Steel
  • Angular Misalignment: 3 degrees
  • Bore Dia. [Min]: 5/8 inches
  • Smaller Bore Size: 5/8 inches
  • Torque Rating: 126 in lb
  • RPM: 1800 rpm
  • Larger Bore Size: 5/8 inches
  • Nominal Size: 5/8 inches
  • Parallel Misalignment: 0.019 inches
  • Length Through Bore: 0.84 inches
  • Weight: 0.77 lb
  • EAN or UPC: 685144132550
