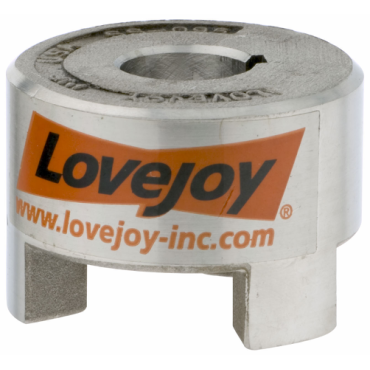

Lovejoy SS150X1 3/4HUB3/8 | Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS150X1 3/4HUB3/8 is a stainless steel finished bore jaw coupling hub designed for reliable operation in various applications. This product is interchangeable with all hub sizes standard for the L-line and AL-line products. It accommodates inserts made from four different materials including Buna-N, urethane, Hytrel, and bronze.

• Finished bore hubs are passivated against rust.
• Interchangeable with all hub sizes standard for the L-line and AL-line products.
• Versatile compatibility with multiple insert materials.

Product Highlights

This coupling hub is designed for high-performance and durability. It is suitable for use in industries where effective torque transmission is essential.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: SS150X1 3/4HUB3/8

Technical Specifications

• Depth: 2.75 in
• Bore Diameter: 1.750 in - 1 3/4 in
• Max Bore Diameter: 1 7/8 in
• Min Bore Diameter: 5/8 in
• Outside Diameter: 3.75 in
• Hub Diameter: 3 3/4 in
• Material: Stainless Steel
• Coupling Type: Jaw
• Max RPM: 5000 rpm
• Insert Style: Jaw Type
• Lock Type: Setscrew
• Weight: 3.94 LB
• Keyway Size: 3/8 x 3/16
• Set Screw Size: 3/8-16
• UPC: 685144700353
